Komatsu PC150-6K / PC150LC-6K Excavator Shop Manual, 2001 (P/N UEBM000701)

688 Pages • 1 Printable PDF (English) • Download

4.6starstarstarstarstar_half(5)
$24.79 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Komatsu Models Covered & Key Technical Specifications

Models: PC150-6K, PC150LC-6K

Sub-models / Variants: PC150LC-6K (with 1.85m, 2.25m, 2.62m, and 2.9m arm configurations)

Model Year: 2001

Serial Numbers: K32001 and up, K34001 and up


  • Engine: Komatsu SA4D102E (both models), with SA4D102E-1 specified for PC150LC-6K (4-cylinder, water-cooled, direct injection with turbocharger)

  • Engine Power Output: 80 kW (109 HP)

  • Piston Displacement: 3920 cc

  • Main Hydraulic Pump Delivery: 276 L/min

  • Piston Pump Set Pressure (Higher Setting): 34.81 MPa (355 kg/cm2)

  • Travel Speeds: Low (2.4 km/h), Mid (3.9 km/h), High (4.9 km/h)

  • Fuel Tank Capacity: 242 L

  • Hydraulic System Capacity: 196 L (Total), 135 L (Refill)

  • Swing Speed: 12 rpm

Komatsu Manual Features & Selected Content Preview

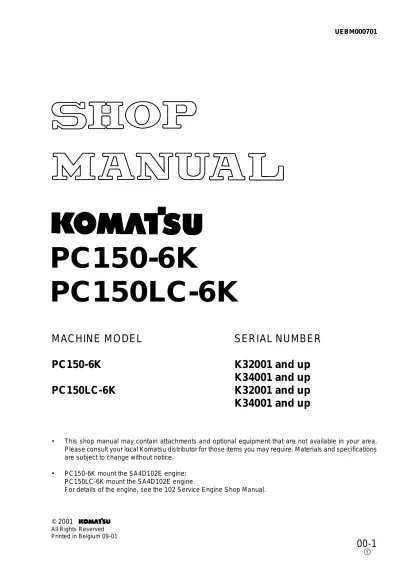

Komatsu’s factory excavator shop manual (P/N UEBM000701), printed in September 2001, covers the PC150-6K and PC150LC-6K. The cover lists K32001 and up and K34001 and up for each model.

Search, Bookmarks, and Foldout Diagrams

Text search and diagram detail. Most service text is searchable. Some tables and wiring labels sit outside the searchable text. Embedded bookmarks open chapters and individual procedures. The Main Menu bookmark points to an external file outside this download. Small connector and wire labels require zooming, and some wiring labels and hydraulic annotations remain hard to read even when enlarged.

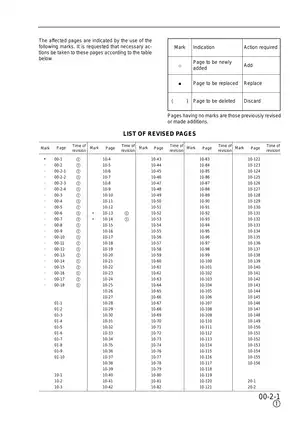

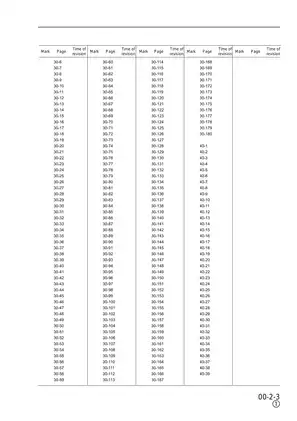

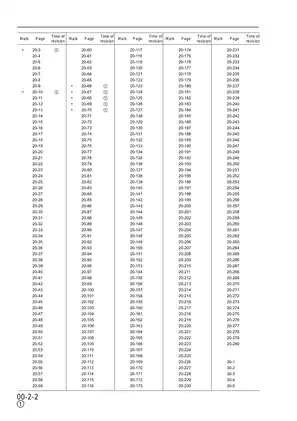

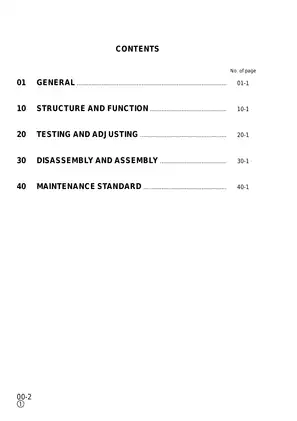

The download is one printable 688-page English PDF. It includes 21 pages of front matter, 10 of General, 155 of Structure and Function, 282 of Testing and Adjusting, 180 of Disassembly and Assembly, and 40 of Maintenance Standard. Those counts include the cover, contents, three revision-list pages, three ESCO adapter-welding pages, and 36 blank, memo, or heading-only pages. Section 90, Others, is listed in the contents and absent from the PDF.


CLSS Diagnostics and Excavator Repairs

This selection of workshop topics includes the main diagnostic and repair procedures. The manual also covers travel deviation testing and air conditioner belt tension adjustment.

  • CLSS hydraulics. Main pump and control valve operation, TVC and LS pressure testing, EPC solenoid valves, PPC shuttle valves, hydraulic drift diagnosis, and oil-leakage measurement.
  • Electrical diagnosis. Governor and pump controller troubleshooting, Machine Monitor System tests, service codes, connector locations, pin-number references, and wiring diagrams.
  • Travel and swing. Step-by-step procedures for final drive and swing machinery disassembly and assembly, plus brake checks and swing circle bearing-clearance testing.
  • Undercarriage. Track shoe tension adjustment, recoil spring service, and disassembly and assembly of the idler, track rollers, and carrier rollers.
  • Work equipment. Boom, arm, and bucket removal and installation, hydraulic cylinder repair, and center swivel joint disassembly and assembly.
  • Engine installation and cooling. Engine and main pump removal and installation, governor motor lever-stroke and engine speed sensor adjustments, and radiator and hydraulic oil cooler service.

Written for service technicians performing workshop repairs, this manual assumes access to hydraulic test equipment, lifting equipment, and the specified service tools.

CLSS Testing and Hydraulic Fault Isolation

The Testing and Adjusting section covers pilot pressure, LS differential pressure, and pressure testing in the work equipment, swing, and travel circuits. Its drift checks help isolate cylinder packing leakage, a control valve fault, or a boom holding valve fault before disassembly.

An air-bleeding chart identifies which circuits need attention after service, and the manual gives a separate pump bleeding procedure. Hydraulic diagrams explain combined boom and arm operation. Separate fuel and hydraulic tank drawings show the configurations for the two serial-number ranges.

Electronic Control and Machine Monitor Diagnosis

Troubleshooting charts distinguish communication faults, governor control, engine symptoms, pump control, input signals, hydraulic and mechanical faults, and monitor faults. The monitor section explains stored service codes and machine-data displays for controller inputs and outputs.

Electrical circuit diagrams for E Mode, C Mode, F Mode, and M Mode work alongside the connector location drawings and pin-number charts, so technicians can match a circuit reference to the machine wiring.

Travel, Swing, and Work Equipment

Power train and track frame drawings accompany the HMV110-2 travel motor description, including its parking brake and brake valve. Final drive and swing machinery procedures cover reduction gears, bearing and seal installation, and brake seal checks.

The center swivel joint procedure flags slipper-seal and O-ring damage during rotor installation. Cylinder assembly instructions address packing, dust seal, and O-ring damage and explain how the backup ring can be damaged during installation.

PC150LC-6K working-range drawings compare the arm configurations, and maintenance illustrations distinguish one-piece and two-piece booms. ESCO Helilok welding instructions cover lip adapters and corner-adapter modification.

Engine Scope, Tools, and Inspection Standards

The SA4D102E-1 coverage on the PC150LC-6K concerns installation, controls, cooling connections, and symptom-based troubleshooting. Internal engine overhaul requires the separate 102 Service Engine Shop Manual, which is not included in this download.

Reference material includes judgment standards, electrical test specifications, fluid capacities, standard tightening torques, and conversion tables. The hydraulic cylinder wear-limit table headed PC160-6K and PC180LC/NLC-6K requires model-specific confirmation before use on these excavators.

The special-tool list identifies the 790-101-2501 push-puller for the center swivel joint and the 790-331-1110 wrench for swing circle fasteners. The manual also covers hydraulic pressure release, blocking, and lifting precautions.

Track Tension and Swing Bearing Limits at a Glance

For the track shoe tension check, the manual specifies 303 ± 20 mm between the track frame and track shoe. For the swing circle bearing mounted on the machine, the maintenance standard lists 0.5–1.6 mm as standard axial clearance and 3.2 mm as the clearance limit.
