Canon imagePROGRAF iPF6100 Service Manual (P/N DU7-1226-000)

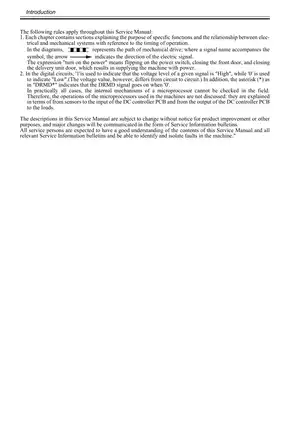

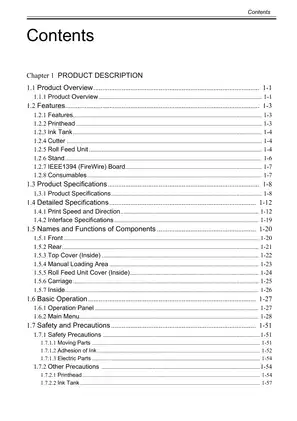

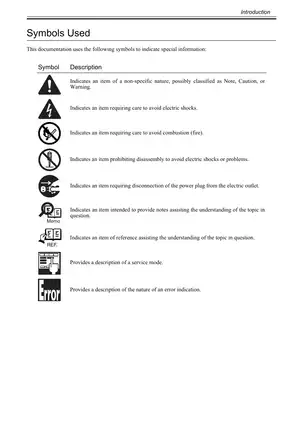

• Original Canon factory service publication for the 24-inch imagePROGRAF iPF6100 — July 2007, Revision 0, document no. DU7-1226-000; a 367-page PDF.
• Traces the Lucia pigment ink system from the tank units and supply valves through the carriage and printheads to the purge unit, maintenance cartridge, and waste-ink system, with head replacement, ink draining, refilling, and cleaning operations.
• Details the three-way media path—roll feed, front manual feed, and top/rear manual feed—together with feed rollers, pinch rollers, spur lift, platen suction, cutter drive, pickup sequences, and media-detection logic.
• Provides factory removal and installation coverage for external covers, drive and feeder assemblies, cutter, carriage, roll-feed unit, purge unit, ink-tank units, waste-ink components, sensors, and PCBs.
• Documents post-repair setup after carriage, multi sensor, and head-management sensor work, plus PCB replacement mode, firmware update, parts-counter initialization, printhead alignment, gap calibration, nozzle-check position, and color calibration.
• Covers initial installation and transport work, including stand assembly, printhead and ink-tank setup, image and operation checks, Move Printer preparation, carriage restraint, and reinstallation.
• Supplies connector and pin tables for the main controller PCB, carriage PCB, power supply, and roll-feed PCB, plus service-mode maps, diagnostic printouts, and warning, error, and service-call tables.

Mechanical and System Architecture

The manual traces the actual signal and fluid paths rather than stopping at component names. Its print-signal section shows the L-COA imaging processor handling high-speed 12-color, 2-bit image data and coordinating timed print signals through the carriage PCB to two six-color PF-03 printheads, each with 2,560 nozzles per color. Head EEPROM data, carriage temperature, linear-encoder timing, mask patterns, and heat-enable control are tied directly to print driving. The surrounding specification tables cover media-dependent print passes and direction, interface data, environmental limits, power/noise figures, dimensions, and PFI-101/PFI-103 ink-tank identification.

Mechanical coverage follows the ink passage through tank EEPROMs, sub-buffers, the supply-valve cam, ink tubes and joints, caps, suction pump, and maintenance cartridge. Cleaning coverage distinguishes normal and strong cleaning, initial ink filling, head-replacement drainage and refill, secondary-transport drainage and refill, maintenance jetting, and pigment agitation. Paper handling is treated with the same depth: roll pickup, front and top/rear manual-feed sequences, feed-roller eccentricity compensation, spur positioning, automatic head-height control, skew/width/edge detection, platen airflow, and cutter home/right-position sensing.

Six especially useful visual references are the Printer Diagram, Print Signal Sequence, one-color Ink Passage schematic, Overview of Paper Path, Power Supply Block Diagram, and the appendix’s seven-sheet General Circuit Diagram. Separate sensor-location drawings cover the ink passage, carriage, and paper path systems.

Factory Repair and Diagnostic Coverage

Chapter 4 concentrates on major-unit repair work. It covers removal and reinstallation of the carriage, cutter, feeder, roll-feed, purge, waste-ink, ink-tank, sensor, and PCB assemblies, along with manual carriage-lock and cap release, wiper positioning, ink-supply valve operation, automatic and manual ink drainage, and component-specific grease application. Canon identifies the Carriage Wire Tool AY3-4493-000, Molykote PG-641 grease CK-0562-000, and EU-1 QY9-0037-000. The maintenance section also ties service-consumable assemblies to Canon part numbers and parts-counter groups.

Diagnostics go beyond the user menu. Service mode provides I/O displays, test patterns, adjustment routines, purge and cleaning counters, media and ink-use records, parts-life status, initialization functions, and interpretation of the PRINT INF report. PCB replacement mode transfers settings and counter data between the main controller and maintenance-cartridge relay PCB. Firmware update coverage names both the GARO Firmware Update Tool and L Printer Service Tool. Chapter 8 organizes warnings, recoverable errors, and service-call failures by code, detected condition, and required action.

For smaller components outside the major-unit procedures, Canon directs the technician to a separate parts catalog; that catalog is not part of this PDF. Red-screw assemblies are factory-set and are not intended for field disassembly.

Two iPF6100-specific repair traps are called out. Releasing a printhead lock while the ink-supply valve remains open can allow ink to reverse-flow and leak from the supply needles. Carriage or multi sensor replacement requires simultaneous replacement of the reference plate and the prescribed gap and optical-axis calibration. During powered diagnostics, follow the manual’s AC-power, ESD, moving-part, and conductive-ink precautions to avoid electrical damage, ink leakage, or injury.
