2007 Canon imagePROGRAF iPF8100 Service Manual PDF (DU7-1247-000)

Canon's imagePROGRAF iPF8100 Service Manual, document code DU7-1247-000, Rev. 0, issued October 2007, covers the 44-inch printer with its stand, output stacker, and optional media take-up unit.

The download is a 337-page English PDF with searchable text and embedded bookmarks.

• Ink system repair: Removal and installation of the ink tank, ink tube, and purge units, with automatic and manual ink-drainage procedures.

• Carriage and paper feed: Carriage removal, belt installation, feed-motor service, linear-encoder removal, and component-specific lubrication instructions.

• Calibration after replacement: Multi-sensor optical-axis correction, paper-gap calibration, feed-roller eccentricity adjustment, and head-management sensor alignment.

• Electrical diagnosis: PCB connector locations, pin-function tables, sensor detection logic, print-drive timing, and the General Circuit Diagram.

• Service mode and faults: Sensor-status displays, nozzle-check patterns, usage counters, warning and error tables, service-call codes, and firmware-update procedures.

• Installation and transport: Stand, basket, and media take-up assembly, with transport-level requirements and reinstallation checks.

Canon issued this manual for qualified personnel learning the technical theory, installation, maintenance, and repair of the printer.

Ink Delivery, Printheads, and Carriage Repair

The 12-color pigment ink system uses two PF-03 printheads, each an integrated six-color assembly. The Ink Passage schematic follows ink through the subtanks, supply valves, tubing, printheads, suction pump, and maintenance cartridge.

The purge-system sections explain capping, wet wiping, ink filling, and cleaning cycles. Carriage coverage explains multi-sensor head-height control and the head-management sensor's nozzle-discharge checks.

The handling notes identify two specific damage risks: scratching the linear scale during carriage removal can cause malfunctions, and refitting protective cap 2 can damage the printhead nozzles.

Adjustments After Parts Replacement

The adjustment table links each replaced component to its required setup. Carriage or multi-sensor replacement calls for reference-plate replacement and optical-axis and paper-gap adjustments; feed-roller work has separate eccentricity corrections.

This distinction helps you select the right calibration after a repair before judging the resulting print quality. The service-mode chapter explains OPTICAL AXIS, GAP CALIB., LF TUNING, LF TUNING 2, and NOZZLE CHK POS., with sample adjustment and nozzle-check printouts.

Electrical Diagnosis and Firmware

It breaks down PCB components and sensor detection logic for the covers, ink passages, and the carriage system. Connector drawings and pin-function tables cover the main controller, carriage relay, and head relay PCBs.

The Print Signal Sequence and print-drive timing diagrams explain how image data, head firing, and carriage movement relate. Startup and shutdown flowcharts cover firmware operation, while the Power Supply Block Diagram shows the electrical supply architecture.

Service-mode I/O displays identify individual sensor and switch states. Warning, error, and service-call tables distinguish reported conditions affecting the printheads, purge system, paper feed, and hard disk.

PCB replacement coverage explains how settings and counters transfer between the main controller and maintenance-cartridge relay boards. Firmware-update procedures reference the GARO Firmware Update Tool and L Printer Service Tool. The software tools themselves are not included.

Always ensure the device is fully powered down and unplugged before inspecting internal boards.

Media Handling, Transport, and Service Scope

The Structure of Feed Roller Unit drawing shows the relationship between the feed drive, rollers, spool clutch, and sensors. The optional media take-up unit has installation instructions, sensor descriptions, and wiring coverage.

Transport preparation distinguishes moves on the same floor from shipment and vertical handling, with different ink-drainage and consumable requirements. Reference tables cover media handling, operating environment, power consumption, noise, and dimensions, along with USB 2.0, Ethernet, and optional IEEE1394 interfaces.

The service-tool list identifies the cover switch tool QY9-0103-000 and specified lubricants. For additional disassembly information beyond the four main-unit workflows, the manual refers to a separate Parts Catalog, which is not included in this PDF.

File Format and Readability

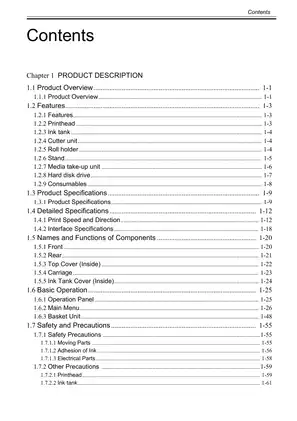

The page total includes the covers, introductory and contents pages, one blank page, and a nine-page appendix consisting of a divider and eight General Circuit Diagram sheets.

Navigation: PDF bookmarks cover all eight chapters, their subsections, and the circuit-diagram appendix.

Text and diagrams: Embedded text supports searching across the manual. Small connector, pin, and signal labels are best read by zooming into the large circuit sheets.
