Canon imagePROGRAF iPF8000 Inkjet Printer 2006 Service Manual (P/N DU7-1208-000)

• Model coverage: Canon imagePROGRAF iPF8000 44-inch stand-mounted large-format inkjet printer, including the optional media take-up unit and its motor, sensors, and control boards.

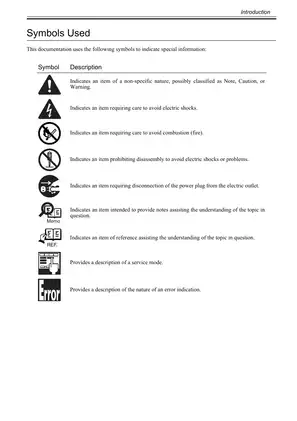

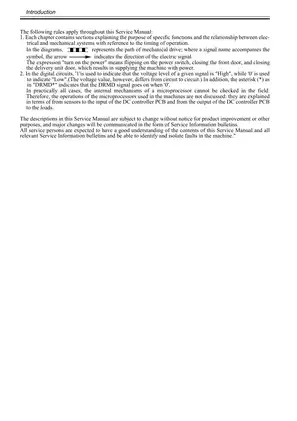

• Document identity: Canon factory service manual, document no. DU7-1208-000, November 2006, Rev. 0; a 272-page PDF.
• Mechanical systems: Explains the dual-printhead ink path, ink-tank/subtank and valve system, carriage and lift mechanism, purge and maintenance-cartridge systems, paper feed, cutter, airflow, and take-up operation.
• Installation and major repair work: Covers stand and basket assembly, optional take-up installation, carriage, ink tube, purge, and ink tank unit removal/reassembly, automatic and manual ink draining, manual cap and wiper release, valve handling, feeder service, and specified lubrication points.
• Calibration and setup: Provides post-repair LF tuning, optical-axis correction, paper-gap and sensor calibration, nozzle-check-position adjustment, PCB replacement mode, firmware update, and download-mode procedures.
• Diagnostics and diagrams: Includes warning, error, and service-call fault isolation; main-controller, carriage-relay, and head-relay connector pinouts; service-mode maps; service-tool data; and an eight-sheet General Circuit Diagram appendix.

iPF8000 Platform and Component Coverage

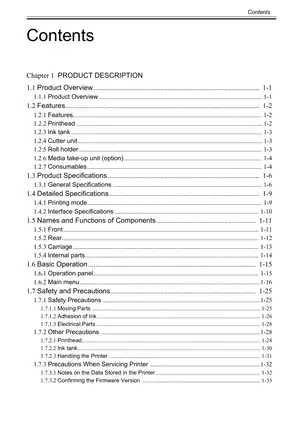

Organized into eight service chapters plus an electrical appendix, this is model-specific documentation rather than a generic wide-format printer guide. Canon identifies the 44-inch roll/cut-sheet platform, two PF-02 printheads, the 12-color PFI-301/PFI-701 pigment ink system, automatic cutter, basket, and optional take-up hardware. Early chapters map the operation panel, user adjustments, interfaces, component locations, and consumable assemblies before moving into the service theory behind each subsystem.

Mechanical Systems, PCBs, and Repair Procedures

The technical-reference chapter follows what the printer does from power-on through shutdown, including print control, head management, overheating protection, and print-position adjustment. Its ink-passage coverage traces supply from the tanks and subtanks through the valves, tubes, carriage, printheads, purge unit, and maintenance cartridge. Separate paper-path sections explain the feed roller, pinch roller, spool clutch, platen, cutter, media sensors, and take-up detection system.

The electrical sections go just as deep. The manual breaks down the main controller PCB, carriage relay PCB, head relay PCB, maintenance-cartridge relay PCB, media take-up electronics, motor drivers, power supply, and the sensors that report cover, ink, carriage, paper-path, humidity, and take-up status. Representative drawings include the full printer interconnection diagram, per-color ink-passage schematic, purge-unit cap/wiper/suction-pump views, feed-roller and spool-clutch layout, printer electrical and power-supply block diagrams, and the eight-sheet General Circuit Diagram appendix.

The repair chapter supplies direct disassembly flows and service notes for the carriage unit, ink tube unit, purge unit, and ink tank unit. It also covers external covers, the feed motor and feeder components, linear encoder, head-management sensor, PCBs, manual carriage release, ink-supply valves, ink draining, and grease application. The manual ties post-repair setup to the parts that trigger it, covering feed-roller eccentricity tuning, optical-axis correction, gap calibration, sensor calibration, and nozzle-check-position adjustment.

Canon directs general parts-by-parts disassembly outside those four main units to the separate Parts Catalog, which is not included in this PDF. This matters when planning a full teardown.

Fault Isolation, Connector Pinouts, and Service Mode

Troubleshooting is organized by warning, error, and service-call error. Entries identify probable fault locations and work through media or installation checks, sensors and cables, motors and PCBs, and final board replacement. Coverage includes cutter and paper-feed faults, multi-sensor and gap errors, ink-tank and printhead failures, purge and valve faults, take-up errors, fan and carriage faults, firmware errors, and main-controller or RTC service calls.

Service mode is mapped through DISPLAY, ADJUST, REPLACE, COUNTER, SETTING, and INITIALIZE branches. The tables cover warning and error histories, ink and parts counters, carriage and purge usage, adjustment patterns, cutter replacement, and reset functions. PCB-replacement mode transfers settings and counter data between boards, while download mode and the GARO Firmware Update Tool or L Printer Service Tool support firmware work. Connector tables identify each pin by signal name, I/O direction, and function. The tool list also names Molykote PG-641 (CK-0562-000), Permalube G-2 (CK-0551-020), and cover switch tool QY9-0103-000.

The manual flags repair traps that can cause secondary damage. Opening all ink passages while ink remains in the tubes can drive it backward and leak through the tank needles; replacing the main controller PCB and maintenance-cartridge relay PCB at the same time can prevent the normal transfer of settings and counter data.

Disconnect the printer from AC power before removing covers or handling internal electrical assemblies.
