Canon Models Covered & Key Technical Specifications

Models: iPF8000 series / iPF8000S

Model Year: 2007


  • Weight: Approx. 135 kg (with stand and output stacker)

  • Print resolution: Max 2400 x 1200 dpi

  • Operating temperature: 5 to 35 degrees centigrade

  • Standard memory: 384 MB

  • Interface: USB 2.0 Hi-Speed, 10Base-T/100Base-TX

Canon Manual Features & Selected Content Preview

Canon’s iPF8000-series service manual, dated November 2, 2007, is the iPF8000S edition for the 44-inch large-format printer platform. Its eight chapters cover technical theory, installation, maintenance, repair, service mode, and error codes.

Searchable Text and Chapter Bookmarks

Search and diagram detail: The PDF has searchable text and embedded bookmarks covering all eight chapters and their subsections. Small labels in the printer block diagram and PCB connector views are legible when enlarged.

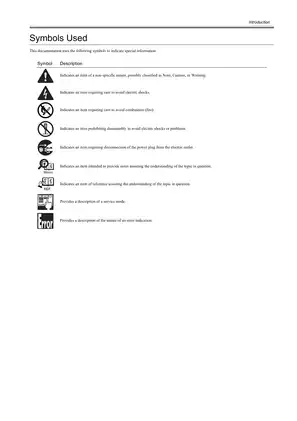

The English-language manual is supplied as one printable, 286-page PDF. That total includes the front cover, introductory and contents pages, chapter dividers, 24 completely blank pages, and two closing pages.


Ink Delivery, Carriage Repair, and Service Diagnostics

These selected service topics illustrate the contents rather than reproduce the complete contents list. Further topics include roll-length barcode management and output-stacker positioning.

  • Ink and print systems: Ink-path theory covering tank units, subtanks, supply valves, the tube assembly, printheads, purge unit, suction pump, caps, wipers, and maintenance cartridge.

  • Mechanical repair: Disassembly flows and removal/reinstallation procedures for carriage, ink tube, purge, and ink tank units, with external-cover and cutter service notes.

  • Post-repair setup: Optical-axis correction, multi-sensor gap calibration, feed-roller eccentricity adjustment, nozzle-check-position adjustment, PCB replacement mode, and parts-counter initialization.

  • Electrical diagnosis: Sensor and motor functions, service-mode I/O displays, warning and error histories, block diagrams, and main-controller, carriage-relay, and head-relay connector pinouts.

  • Maintenance: Printer cleaning, consumable-part identification, replacement-status tables, lubrication locations, and the counter information associated with service parts.

  • Installation and transport: Stand, printer, media take-up unit, and basket assembly; image and operation checks; transport preparation, ink drainage, carriage restraint, and reinstallation.

Canon issued this manual for qualified personnel learning the product’s technical theory, installation, maintenance, and repair. Its component-level electrical data, ink-handling requirements, and service-mode procedures make it best suited to trained large-format printer technicians and repair shops.

Series Information and Print-System Design

This edition combines shared series theory with iPF8000S-specific eight-color specifications and print-control content, so it should not be treated as a 12-color-only reference. The product chapter identifies the PF-03 integrated six-color printheads used as a pair, PFI-301 and PFI-701 pigment-ink tank families, supported media and interfaces, and the optional media take-up unit.

The built-in 80GB serial ATA hard-drive section goes beyond a capacity listing. It explains common and personal job boxes, preservation and reprinting, recovery after a print interruption, and queue handling.

Firmware coverage follows image data from the host interface through the main-controller ASICs and memory to the printheads, then maps startup and controlled shutdown. Those shutdown details matter because an interrupted power-off can leave the heads improperly capped.

Repair Access and Replacement Adjustments

The step-by-step repair instructions address access and handling details, including manual cap and carriage release, supply-valve control, and ink drainage when the printer cannot power on. Service notes also address the drive and feeder units, linear encoder, head-management sensor, and PCBs.

Repair scope: Canon directs disassembly and reassembly outside the four principal units to a separate Parts Catalog, which is not part of this PDF.

After carriage or multi-sensor replacement, the manual links optical-axis and paper-gap adjustments to replacement of the multi-sensor reference plate. Feed-roller correction has automatic and manual routines using glossy photo paper; separate instructions address head-management-sensor alignment and head-registration patterns. These component-specific requirements help technicians identify the setup work that accompanies a replacement.

Service Mode, Firmware, and Maintenance Records

Service mode exposes sensor and switch states, printer and printhead identification, ink and media-use data, carriage and purge counts, parts-life counters, replacement histories, and calibration history.

The maintenance-cartridge EEPROM tracks cartridge status automatically, while designated service-part counters require initialization after replacement. The manual distinguishes these functions rather than treating every replacement as the same reset operation.

Firmware updating is covered for the GARO Firmware Update Tool and L Printer Service Tool over USB, IEEE 1394, or a network connection. The service-tool list identifies the cover-switch tool QY9-0103-000, Molykote PG-641 grease CK-0562-000, and Permalube G-2 grease CK-0551-020.

Diagrams and Error-Code Reference

Named graphics include the Printer Diagram, Print Signal Sequence, Operation Sequence at Power-on, Operation Sequence at Power-off, Overview of Ink Passage, and Power Supply block diagram. Connector sections add component-location views and detailed signal assignments for the controller and carriage electronics.

Error coverage is divided into warnings, recoverable errors, and service-call errors, including media-feed, motor, sensor, printhead, ink, maintenance-cartridge, firmware, and hard-drive faults. Fault information is organized mainly as code/status tables and diagnostic access data rather than long symptom-to-remedy narratives.

Transport Preparation and Repair Precautions

Transport instructions distinguish same-floor moves, truck transport, air or sea shipment, and moving the printer on its end. Ink-drainage, consumable-replacement, and reinstallation requirements vary with the transport level.

The repair cautions warn against replacing the main controller PCB and maintenance-cartridge relay PCB together because each preserves data needed to initialize the other. Forcing the carriage while fitting the transport belt stopper can let the cap rubber strike and damage the printhead nozzles.

Conductive ink on energized electrical parts can damage boards, so cover-off repair work requires proper electrical isolation and normal shop safety procedures.

Selected Head-Height and Connector Details

The media-dependent head-height table lists 1.4 mm for photo paper at the lowest position and 2.6 mm for canvas at the highest position. These values appear in the explanation of automatic carriage-height control and its relationship to the selected media.

The main-controller connector tables identify J1001 pin 1 as the USB VBUS input at +5 V, alongside data-line, ground, and signal-direction assignments.
