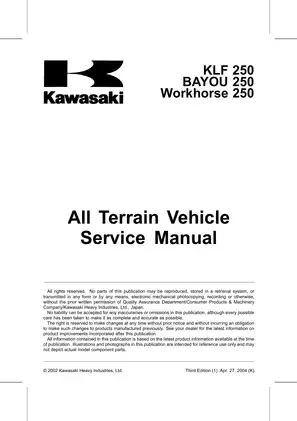

Kawasaki KLF 250 Bayou/Workhorse ATV Service Manual Collection 2003–2005 (P/N 99924-1284-03)
328 Pages • ZIP Download: 3 Printable PDFs (English)
Kawasaki Models Covered & Key Technical Specifications
Models: KLF 250, Bayou 250, Workhorse 250
Sub-models / Variants: KLF250-A1, KLF250-A2, KLF250-A3 (service manual); KLF250A6F (specification sheet only)
;Model Years: 2003–2005 (2003, 2004, 2005)
Beginning Frame No. (KLF250-A1): JKALFMA1□3B500001 or JKALF250AAB600001
Beginning Frame No. (KLF250-A2): JKALFMA1□4B523201 or JKALF250AAB601301
Beginning Frame No. (KLF250-A3): JKALFMA1□5B534201 or JKALF250AAB602001
□ = This digit in the frame number changes from one machine to another.
-
Engine: 4-stroke, SOHC, 1-cylinder, air-cooled, 228 mL displacement
-
Compression Ratio: 8.9
-
Maximum Torque: 17.9 N·m (13.24 ft·lb) @ 5 500 r/min
-
Transmission: 5-speed plus reverse, constant mesh
-
Final Drive: Shaft, 4.680 reduction ratio
-
Idle Speed: 1 300 – 1 400 r/min
-
Engine Oil Capacity: 2.0 L (standard change), 2.75 L (dry engine)
-
Fuel Tank Capacity: 10 L (2.6 US gal)
Kawasaki Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Kawasaki KLF 250 / Bayou 250 / Workhorse 250 Service Manual — 2003–2005, KLF250-A1, KLF250-A2, KLF250-A3; P/N 99924-1284-03, Third Edition (1), April 27, 2004 | 322 |
| KLF250A6F specification and features sheet | 2 |
| Kawasaki ATV brochure — European sales literature | 4 |
Use the service manual for maintenance, diagnosis, and repair procedures, with the companion documents providing specification and model-feature references.
The KLF250A6F sheet contains specifications only; it does not extend the service manual’s repair coverage beyond A3. The brochure features several Kawasaki ATVs and adds no workshop procedures.

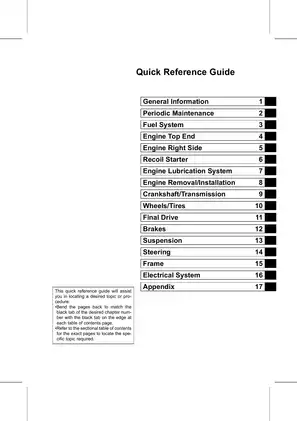

PDF Search, Bookmarks, and Diagram Detail
Text access and wiring detail: All three PDFs contain searchable text, although some illustrations and diagram labels fall outside the searchable text layer. The service manual has embedded bookmarks for chapters, procedures, and tables; the specification sheet and brochure have none. Small wiring-diagram labels require zooming.
The ZIP download contains three printable English PDFs totaling 328 pages. The total includes the service manual’s original cover, preliminary material, and 14 blank pages, along with both companion documents.
Engine, Shaft-Drive, and Electrical Service
The following is a selection of the documented work, rather than a complete contents list. Other topics include spark-arrester maintenance and fuel-tank gauge replacement.
-
Fuel system: Mikuni VM24SS carburetor removal, disassembly, cleaning, inspection, fuel-level and float adjustment, plus throttle and choke cable service.
-
Engine repair: Step-by-step procedures for engine removal, cylinder-head and valve work, cam-chain timing, piston replacement, and crankshaft inspection.
-
Clutches and transmission: Primary and secondary clutch inspection, crankcase separation, transmission-shaft disassembly, shift-drum service, and reverse-shift mechanism repair.
-
Shaft drive: Output bevel-gear and rear final-drive overhaul, shim selection, backlash and tooth-contact adjustment, propeller-shaft inspection, and rear-axle service.
-
Brakes and chassis: Mechanical drum-brake repair, wheel and tire service, steering centering, toe-in adjustment, tie rods, suspension arms, fenders, carriers, and guards.
-
Electrical diagnosis: Battery and charging tests, CDI ignition and peak-voltage checks, starter-motor service, regional wiring diagrams, and symptom-based troubleshooting.
The manual is written primarily for trained mechanics with a properly equipped shop. Owners undertaking basic maintenance and repair need a working knowledge of mechanics, tool use, and workshop procedures.
Fuel Calibration and Scheduled Maintenance
The carburetor specification table separates A1 calibration from A2/A3 settings, including jetting, needle identification, pilot settings, and altitude-correction parts. That distinction matters when selecting calibration parts or checking an existing setup.
The periodic maintenance chart is supported by lubrication instructions, adjustment procedures, and component-specific torque tables. Fuel-system tool references include Fuel Level Gauge 57001-1017 and Pilot Screw Adjuster 57001-1239.
Internal Engine and Clutch Work
Compression diagnosis includes separate recoil- and electric-starter test conditions, with fault tables connecting wet-test results to ring, valve, and cylinder-head checks. These references help narrow the inspection area before major disassembly.
Top-end coverage extends to rocker and camshaft measurements, valve-guide replacement, seat cutting and lapping, and piston-ring wear assessment. Lower-end material addresses connecting-rod condition, crankshaft alignment, balancer installation, and transmission gear and shift-fork inspection.
Lubrication and assembly: The Engine Oil Flow Chart identifies the lubrication path, supported by oil-pump, filter-bypass, screen, relief-valve, and oil-pipe service instructions. Crankcase assembly specifies Kawasaki Bond liquid gasket 92104-002.
Tool callouts include Compression Gauge 57001-221, Adapter 57001-1183, Crankcase Splitting Tool 57001-1098, and Crankshaft Jig 57001-1174.
The timing section warns that turning the engine with the cam-chain tensioner removed can damage the engine; a loose chain can also kink and damage the crankshaft sprocket.
Bevel-Gear Setup and Chassis Repairs
Both bevel-gear assemblies have shim part-number tables, backlash measurements, and illustrated drive/coast tooth-contact patterns. These provide the setup references needed after replacing components that affect gear engagement. Bevel Gear Holder 57001-1193 is identified in the procedures.
Chassis instructions include brake-panel disassembly, drum and shoe wear checks, steering-stem and tie-rod inspection, suspension-arm bushings, and bearing and seal replacement. Rear shock absorbers are sealed units: coverage is limited to external inspection and replacement rather than internal rebuilding.
Circuit Testing and Fault Isolation
Electrical coverage includes battery test charging, regulator/rectifier output and bench tests, alternator output, stator resistance, ignition-coil and crankshaft-sensor checks, and ignition timing. Starter service covers the armature, brushes, relays, starter clutch, and torque limiter, followed by lighting, switch, and fuse checks.
The Charging System Circuit, Ignition System Circuit, Electric Starter Circuit, and Lighting System Circuit distinguish A1 from A2/A3 arrangements. Full wiring diagrams cover U.S./Canada, Europe, and Australia models; cable, wire, and hose routing views support reassembly.
Hand Tester 57001-1394 and Peak Voltage Adapter 57001-1415 are specified for relevant tests. The alternator section also warns that striking the rotor can weaken its magnets.
Brake service requires the manual’s asbestos-dust precautions. Fuel, battery, ignition, and recoil-starter work carries flammable-vapor, electrical-shock, and stored-spring hazards; follow the factory warnings and specified tool requirements.
Valve and Oil-Filter Service Data Preview
For A1–A3 valve adjustment, the cold intake clearance is 0.15–0.20 mm, while the cold exhaust clearance is 0.18–0.23 mm.
The oil-filter service section specifies 8.8 N·m (78 in·lb) for the filter-cover bolts.
