Kawasaki Models Covered & Key Technical Specifications

Models & Model Codes: Vulcan 2000, VN2000 (service manual: VN2000-A1; model information: VN2000-A2, VN2000A6F; marketing code: VN2000A)

Model Years: 2000–2007 (200, 2001, 2002, 2003, 2004, 2005, 2006, 2007)

Beginning frame numbers (VN2000-A1): JKBVNMA1□4A000001, JKBVNW00AAA000001 or VNW00A-000001 (□ represents a digit that varies by motorcycle)


  • Engine type: 4-stroke, OHV, V2-cylinder

  • Engine displacement: 2,053 mL (125.3 cu in.)

  • Cooling system: Liquid-cooled

  • Maximum horsepower: 76 kW (103 PS) @ 4,800 r/min (VN2000-A1; markets other than U.S., California and Canada)

  • Maximum torque: 177 N·m (130.6 ft·lb) @ 3,200 r/min (VN2000-A1; markets other than U.S., California and Canada)

  • Transmission: 5-speed, constant mesh, return shift

  • Final drive system: Belt

  • Fuel system: DFI (Digital Fuel Injection) System

  • Fuel tank capacity: 21 L (5.5 US gal)

  • Front tire size: 150/80 - R16MC 71V

  • Rear tire size: 200/60 - R16MC 79V

Kawasaki Manual Features & Selected Content Preview

Publication Pages

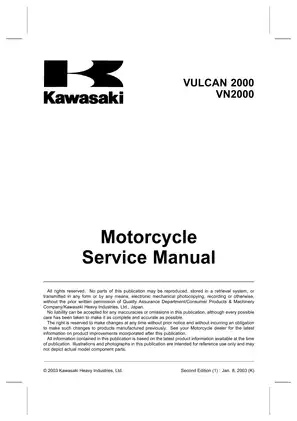

Motorcycle Service Manual — 2004 VN2000-A1 / Vulcan 2000; P/N 99924-1320-02; Second Edition (1), January 8, 2003 633
VN2000-A2 model information and technical summary 5
VN2000-A1 Light Bar Kit installation instructions — Instruction P/N 99929-1714 10
2004 VN2000 / Vulcan 2000 Model Information — marketing code VN2000A; August 19, 2003 version 14
2006 Vulcan 2000 Model Information — VN2000A6F 10
2005 Cruiser Accessories Catalog — selected cruiser pages 20
2004 UK Cruiser Brochure 12

The service manual supplies the workshop procedures, while the model-information sheets and catalogs provide configuration and accessory references. Separate instructions cover installation of Light Bar Kit 99994-0029.

Service application: The workshop manual covers the 2004 VN2000-A1. The later-model information sheets are descriptive publications, not service supplements extending its repair coverage to later variants.

PDF Search, Bookmarks and Page Count

Text and diagram access: The service manual has searchable body text and embedded bookmarks for chapters, procedures and tables. Search does not cover every diagram label, and small wiring labels require zooming. The other six PDFs have searchable text but no bookmarks; the UK brochure also includes picture-only pages.

The ZIP contains seven printable PDFs totaling 704 pages, including all covers and preliminary material, nine blank pages in the service manual, and the 71 pages of accompanying publications listed above.


Engine, DFI and Chassis Service

These selected coverage highlights outline the main workshop content. Other topics include wheel balancing and automatic turn-signal canceling-system tests.

  • Engine repair: Engine removal and installation, rocker-case and hydraulic lash-adjuster service, electric-solenoid decompressor service, camshaft timing, cylinder-head and valve repair, piston service, and crankcase separation.

  • DFI diagnostics: Self-diagnosis modes, service-code tables, fault-finding charts, ECU power-supply checks, injector and fuel-pump tests, fuel-pressure and flow checks, and sensor/actuator specifications.

  • Clutch and driveline: Clutch removal and assembly, clutch-pack inspection and adjustment, starter-clutch service, transmission teardown, shift-drum and shift-fork inspection, belt alignment and deflection, and pulley/coupling bearings.

  • Cooling and lubrication: Cooling-system pressure testing, thermostat inspection, water-pump mechanical-seal replacement, semi-dry-sump oil-pump service and oil-pressure testing.

  • Brakes and chassis: Master-cylinder and caliper repair, brake bleeding, fork disassembly and assembly, rear-shock adjustment, swingarm service, and steering-stem bearing work.

  • Electrical diagnosis: Charging and ignition tests, starter-motor overhaul, regional main wiring diagrams, DFI wiring, electrical-parts locations, cable/wire/hose routing views, diagnostic flowcharts and exploded assembly views.

Kawasaki wrote the service manual primarily for trained mechanics in a properly equipped shop; owners who understand basic mechanics, tool use and workshop procedures can also use it for basic maintenance and repair.

Internal Engine Work and Service Data

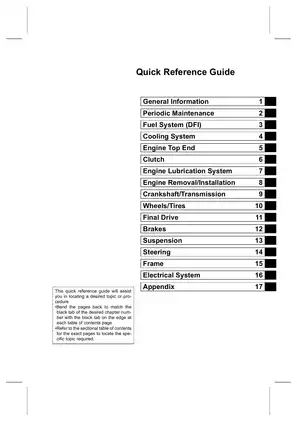

Seventeen system chapters include step-by-step procedures for HLA air bleeding, valve-guide replacement, valve-seat repair and internal transmission assembly. Cylinder and piston wear checks, crankshaft/connecting-rod inspection, bearing selection and dual-balancer-shaft timing extend the coverage beyond routine maintenance.

Component-specific torque and locking-agent tables accompany standard dimensions, service limits, fluid capacities, pressure-test data and electrical test values. Exploded views show where oil, grease, sealant or locking agent is required during assembly.

DFI Fault Isolation and Regional Equipment

Rider-inquiry and diagnosis sheets connect reported symptoms with checks for mechanical and electrical causes. Dealer modes distinguish current faults from stored faults, with code-clearing procedures and ECU backup-behavior tables.

Circuit tests address throttle and pressure sensors, crank/cam sensors, injectors, the fuel pump, subthrottle drive, decompression solenoid and oxygen-sensor circuits. Fuel-pressure and flow checks help distinguish a fuel-delivery problem from an electrical DFI fault.

Regional coverage includes European and California oxygen-sensor systems, California evaporative-emissions equipment, European lighting and final-drive differences, and four market-specific main wiring diagrams.

Diagrams, Tools and Repair Cautions

Named references include the DFI System Wiring Diagram, DFI Diagnosis Flow Chart, Coolant Flow Chart, Engine Oil Flow Chart, Ignition System Circuit and the two-page Wiring Diagram (United States and Canada).

DFI work calls out the Needle Adapter Set (57001-1457) and Fuel Pressure Gauge Adapter (57001-1593). Driveline and suspension sections specify the Drive Belt Tension Gauge (57001-1585), Pulley Holder (57001-1572) and Fork Oil Seal Driver (57001-1589).

Drive-belt handling: Twisting, aggressive bending, solvent contamination or prying the belt onto a pulley can damage it and shorten service life.

Throttle-body service: Its sensors and subthrottle actuator are factory-set; disturbing their settings, dropping the assembly or immersing it in solvent can cause damage or poor performance requiring throttle-body replacement.

Engine, wheel, belt and suspension work requires secure support with suitable lifting equipment. Follow the manual's battery-isolation, fuel, brake-fluid and hot-component precautions before related teardown.

A Preview of Fuel-Pressure and Thermostat Test Data

For the VN2000-A1 DFI system, the fuel-line inspection specifies a standard fuel pressure of 304 kPa (44 psi) at idle. The pressure and flow sections pair test results with fault-finding checks for the pump, regulator, lines and injectors.

The cooling-system section gives a thermostat valve-opening range of 58–62°C (136–144°F), alongside the thermostat inspection procedure and cooling-system pressure tests.
