Ssangyong Musso Repair Manual 1993–2005
1,463 Pages • ZIP Download: Printable PDF • 18.78 MB
SSangyong Models Covered & Key Technical Specifications
Models: Musso, Daewoo Musso, Mercedes-Benz Musso
Sub-models / Variants: Musso Sports, 2.0L DOHC (E20 / M161.940), 2.3L DOHC (E23 / M161.970), 3.2L DOHC (E32 / M162.990), 661LA Diesel (OM661LA; M74 application: D23LA), 662NA Diesel, 662LA Diesel (OM662LA; M74 application: D29LA)
Model Years: 1993–2005 (1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005)
-
Engine Configurations: 4-cylinder gasoline, 6-cylinder gasoline, 4-cylinder diesel, 5-cylinder diesel
-
Transmission Types: Manual T5 / T5WC (TREMEC; 661LA, 662NA, 662LA, 2.0L DOHC, 2.3L DOHC, 3.2L DOHC), Automatic W4A040 (MB; 662LA, 2.3L DOHC, 3.2L DOHC; application data), Automatic M74 4WD (BTRA; 661LA, 662LA, 2.3L DOHC, 3.2L DOHC)
-
Fuel Types: Unleaded gasoline, diesel
-
Drive System: 4WD (transfer case variants include part-time 4408 (E) and 4423E TOD)
-
Steering System: Rack and pinion
-
Suspension Type: Front double wishbone, rear 5-link
SSangyong Manual Features & Selected Content Preview

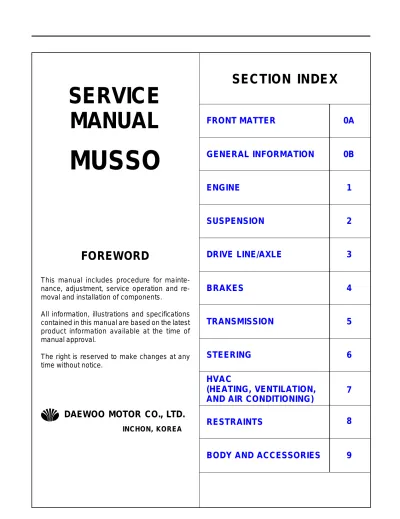

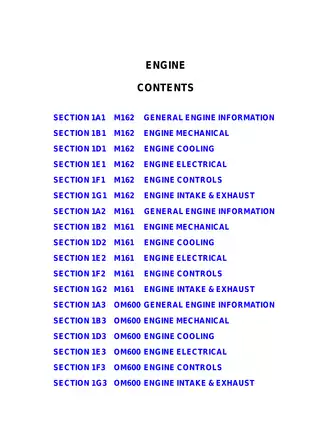

Daewoo Motor Co., Ltd. Musso factory service manual covering M162 E32, M161 E23/E20, and OM600 diesel applications identified as OM662LA and OM661LA.
Searchable Repair Text and Wiring Detail
Search, bookmarks and diagrams: Repair text is searchable across the chapters, although some diagram labels are image-based. Two embedded bookmarks lead to the section index and master contents rather than individual repair chapters. Dense wiring diagrams require zooming to read small pin numbers and wire-color codes.

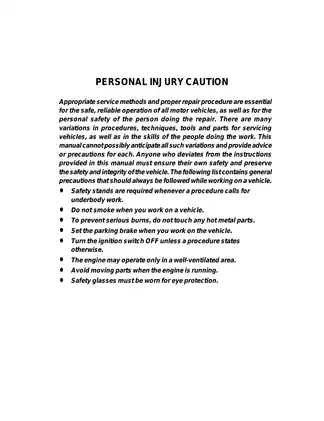

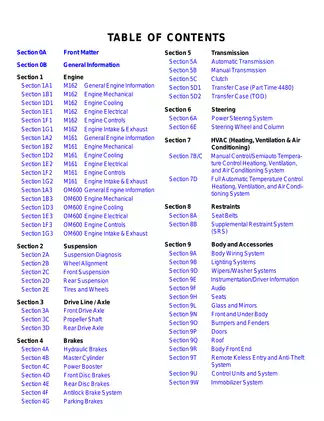

Supplied as a ZIP download containing one printable, English-language PDF with 1,463 pages, including 12 front-matter pages containing the cover/foreword, safety notice and contents.
Engine Overhaul, Drivetrain Repair and System Diagnosis
The following selected coverage highlights outline the main workshop areas; additional topics include horn and windshield-wiper circuits.
-
Engine repair: Step-by-step procedures for engine removal, cylinder-head service, camshaft timing and adjusters, timing chains and guides, internal inspection, and lubrication-system repair.
-
Fuel-system diagnosis: Gasoline MSE/HFM testing, diesel injection-pump and nozzle service, vacuum-system checks, and RIV start-of-delivery testing.
-
Transmission service: BTRA M74 4WD automatic-transmission diagnosis and internal repair, TREMEC T5WC overhaul procedures, and hydraulic clutch bleeding and repair.
-
Transfer cases: Part-time 4408 and 4423E TOD fault diagnosis, control-unit testing, removal and internal repair, with coding procedures for TOD.
-
Chassis and brakes: ECS self-diagnosis, wheel alignment, suspension repair, auto-locking front hubs, CV and propeller shafts, rear axle/LSD service, and ABS/ABD diagnosis.
-
Electrical troubleshooting: System-specific wiring diagrams, connector views and fault-code tables for engine, transmission, suspension, brakes, SRS, STICS, REKES and immobilizer systems.
This manual suits technicians and mechanics familiar with workshop testing, vehicle-specific diagnostic equipment and specialized service tools.
Gasoline and Diesel Engine Reconditioning
Gasoline engine work extends to crankcase ventilation, hydraulic engine mounts, belts and tensioners, valve springs and stem seals. Internal sections cover crankshaft, piston, connecting-rod and ring inspection, oil pumps and galleries, core plugs, cylinder bores and mating surfaces.
OM600 procedures add prechamber service and TDC sensor-bracket setting. Cylinder-head pressure-leak testing and facing, valve-guide and seat-ring replacement, valve/seat machining, hydraulic valve-clearance element checks, flywheel machining, oil spray nozzles and bore measurement extend the material into engine reconditioning.
Diesel coverage boundary: 662NA appears in general technical and axle application tables; the dedicated diesel engine-repair material covers OM661LA and OM662LA.
Injection, Ignition and Charge-Air Systems
Gasoline MSE/HFM diagnosis includes self-diagnosis socket pinouts, failure-code tables and test-box connections. Tests address fuel injection, ignition, electronic-pedal operation, A/C control, fuel pressure and internal leakage, injectors and the fuel pump.
ECU and sensor sections cover engine speed, camshaft position, air mass, oxygen, knock, coolant temperature and pedal position.
Diesel material explains injection-pump coding, vacuum-pump testing, idle adjustment, injection-nozzle testing and repair, injection-timing-device service, and fuel-injection-pump removal and installation. Intake/exhaust sections add the EGR circuit, charge-air system diagram, and turbocharger and intercooler removal and installation.
Scheduled Maintenance and Cooling-System Service
Separate gasoline and diesel maintenance charts accompany owner inspections and recommended-fluid tables. Cooling chapters cover leak testing, coolant replacement, pumps and housings, thermostats, radiators, cooling fans and viscous clutches, with application-specific procedures.
Automatic, Manual and Transfer-Case Repair
The M74 material combines electronic and hydraulic controls, power-flow diagrams, model-specific shift patterns, mechanical and fluid tests, electronic adjustments and band setting. Clutch-pack construction and transmission application tables support internal unit repair.
Automatic-transmission limits: The rebuild chapter is for BTRA M74. MB W4A040 appears in application data, with a separate BENZ automatic-transmission harness shown in the body section; it does not receive an equivalent internal rebuild chapter. The M74 material references stall and road tests but does not detail those procedures.
T5WC unit repair covers the main, input and counter shafts, extension housing and shift cover, with shift-complaint diagnosis and pre-installation checks.
Transfer-case sections add 4408 self-diagnosis and TCCU service, plus TOD stored-code clearing, control-unit coding and front/rear propeller-shaft speed-sensor replacement.
Suspension, Axles, Brakes and Steering
ECS material explains damping logic and actuator inspection. Chassis procedures address torsion bars, suspension arms and links, front-axle vacuum controls, steering knuckles, drive shafts, axle housings, rear differentials and LSD components.
Brake coverage includes hydraulic bleeding, master cylinder and booster work, disc brakes, LCRV setting, and separate ABS/ABD 5.0 and 5.3 diagnostics. Steering sections provide pump-pressure testing, bleeding and steering-column repair.
Circuit Diagrams and Fault Isolation
Named drawings include E32/E23 ECU schematics, diesel and gasoline TCU circuits, the ECS circuit, ABS/ABD 5.0 and 5.3 schematics, 4408 and TOD/TCCU diagrams, and the SRS air-bag circuit.
Body wiring adds power distribution, starting and charging circuits, fuse/relay information and connector maps for gasoline, diesel, manual-transmission, BENZ automatic and BTRA automatic configurations.
The fault-code tables, pin descriptions and connector maps help match an electrical complaint to the relevant circuit and test procedure before a repair is selected.
HVAC and Body-System Coverage
Manual and semi-automatic HVAC sections cover fan/compressor circuit diagnosis, refrigerant evacuation, leak testing and charging, plus condenser, receiver-drier, compressor and control-box replacement.
HVAC boundary: Section 7D full-automatic climate-control repair is listed in the contents but is not included. The body section does contain full-automatic A/C connector information.
Body and accessory material also covers glass and mirrors, doors, roof components, seats, frame dimensions, lighting, REKES, STICS and gasoline/diesel immobilizer diagnosis.
Factory Tools and Repair Cautions
Specifications accompany the applicable procedures: tightening tables, pressures, clearances, end-float and wear limits, machining limits, fluid data and electrical test values. Tool listings identify compression tester 001 589 76 21 00, hand vacuum pump 001 589 73 21 00, M74 solenoid/thermistor tester 0555-332083 and clutch-pack clearance kit 0555-336260.
Engine notes address keeping valve-train components in their original order and preventing foreign material from entering open intake passages, where it can cause cylinder damage on restart. M74 cautions explain that hammering the output shaft during center-support removal can permanently damage thrust-bearing surfaces.
Transmission replacement also calls for cooler-line flushing and flow verification to keep residual debris out of the repaired unit.
Engine or transmission removal, diesel injection testing, refrigerant service, brake and SRS repair, and work under the vehicle require appropriate lifting support, pressure relief, electrical isolation and the manual’s safety procedures. Air-bag work is restricted to qualified service-shop technicians.
M161 Compression-Test Data: A Preview
At a normal engine temperature of 80°C, the M161 E23 compression-test data specifies a normal range of 11–15 bar; the E20 range is 10.5–14 bar.
For these engines, the maximum permitted pressure difference between individual cylinders is 1.5 bar. The compression-test section pairs these specifications with tester and adapter information.
