SsangYong Actyon / Tradie 2006–2010 Service Manual Set

The service manual supplies repair procedures; the catalog pairs exploded views with OEM part numbers and application data for parts selection. The owner's manual covers vehicle operation, controls, safety systems, routine maintenance, warning indicators and emergency information.

The service publications are 2006 issues, with catalog effective dates extending through July 2007. No later model-year revision or 2008–2010 supplement is included, so fitment for a later vehicle should be checked against the catalog's application and effective-date information.

Search, Bookmarks and Printable Files

Search and diagram detail: Service text and catalog entries are searchable, but some embedded schematic labels are not. The service PDF has chapter bookmarks; the catalog has two entry bookmarks. The Russian owner's manual has no bookmarks; its character encoding prevents reliable Cyrillic searching. Small EU IV wiring labels are readable when enlarged; the earlier airbag schematic is faint and pixelated.

The ZIP contains 3,119 pages across three printable PDFs. These totals include the service supplements and wiring appendix, 13 blank service-manual pages, the catalog's 25-page illustrated index, four owner-manual pages containing only print-production marks, and its two closing publisher and edition-history pages.

Engine Repair, Drivetrain Diagnosis and Parts Identification

The topics below are selected examples. Other sections cover fuel-fired heater service and FATC air-conditioning self-diagnosis.

• Engine repair: D20DT diesel and G23D gasoline engine removal, internal overhaul, timing-system work, cylinder-head service, compression testing and cylinder leakage testing.

• Powertrain service: TSM52/TSM54 manual transmissions, clutch hydraulics, BTR M74/Ion automatic transmission, part-time transfer-case diagnosis and IWE locking-hub checks.

• Brakes and chassis: Front and five-link rear suspension, steering, axle service, ABS/ESP diagnosis, brake repair and SCAN-100-assisted bleeding.

• Actyon Sports systems: Frame and body dimensions, deck and tailgate service, TCCU diagnostics, and load-conscious reducing valve (LCRV) checks.

• Electrical diagnosis: ECU/TCU trouble codes, SCAN-100 programming, connector and ground locations, fuse-box layouts, pin views and LHD EU IV wiring diagrams.

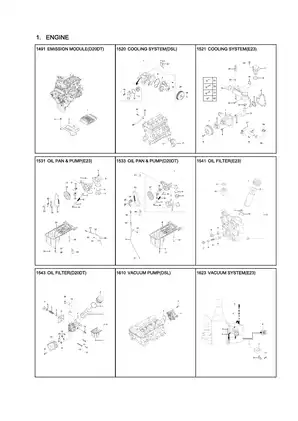

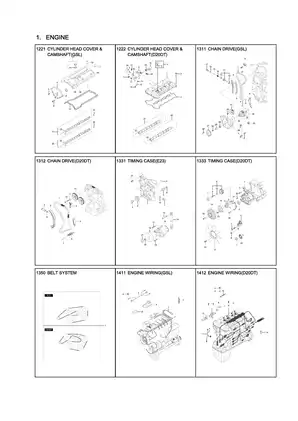

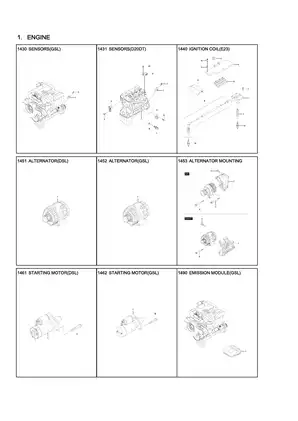

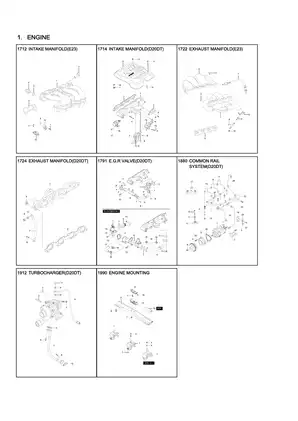

• Illustrated parts identification: 192 indexed groups covering engine, fuel, powertrain, chassis, body, interior and electrical equipment, with part numbers, quantities, option codes and interchangeability remarks.

Because the repair chapters assume access to scan-tool functions, pullers, pressure-testing equipment, transmission fixtures and normal shop lifting equipment, this set is suited to professional technicians and experienced owners already comfortable interpreting factory procedures and electrical schematics.

Diesel Fuel Control and Gasoline Engine Service

The D20DT material covers high-pressure pump and injector service, turbocharger diagnosis, VGT and EGR controls, lubrication, cooling and preheating. Step-by-step disassembly and reassembly instructions are supported by cylinder-head, crankshaft and piston inspection data.

C2I injector calibration and minimum-drive-pulse learning address fuel-injection adaptation. The G23D sections add on-vehicle and unit repair procedures for the gasoline engine, cooling, electrical, intake and exhaust systems.

Referenced service tools include the Y99220072B injector puller, Y99220132B glow-plug wrench and A99120012B compression-pressure tester, plus dedicated transmission equipment. Related chapters supply component-specific torque tables, pressure-test data, fluid specifications, wear limits, clearances and electrical test values.

Transmission Variants and Parts Selection

The BTR M74/Ion chapter includes valve-body service, internal disassembly and assembly, band adjustment and operational checks. The diagnostic appendix also contains DC5AT trouble-code tables; the complete automatic-transmission teardown and rebuild chapter is for the BTR M74/Ion unit.

The catalog distinguishes TSM52 2WD and TSM54 4WD assemblies, KSC and Tongil axles, rear drum and disc brakes, and brake piping with or without ABS/ESP. Application tables identify manual and automatic configurations, left- and right-hand-drive parts, and production changes.

China-only engines and fuel components carry specific interchangeability restrictions. These distinctions help match parts to the installed assembly before ordering.

Schematics and Brake-System Diagnosis

Representative views include the D20DT lubrication diagram, BTR M74 hydraulic-control and power-flow drawings, transfer-case block and circuit diagrams, the ABS hydraulic circuit, and Actyon Sports LCRV performance and section views.

The LHD EU IV electrical appendix covers engine control, starting, charging, preheating, 4WD, lighting, HVAC, STICS and parking-aid circuits. Connector-identification and pin-location pages support fault isolation, physical routing and component identification during repair work.

ESP service distinguishes scan-tool-assisted bleeding and sensor initialization from conventional ABS-only bleeding.

Fuel-System and Brake-Service Cautions

The D20DT section treats disconnected high-pressure fuel pipes as non-reusable because they take an installation set. It also warns that contamination can stick an injector open and cause severe engine damage.

On the Actyon Sports brake configuration documented without ABS/EBD, incorrect LCRV adjustment can cause premature rear-wheel lock and loss of directional control.

High-pressure fuel, brake, airbag, suspension-spring and vehicle-lifting work requires the specified safety procedures and suitable shop equipment.

Examples of Engine Test Values and Brake Wear Limits

The G23D compression-test section lists a normal range of 11–15 bar with the engine at normal operating temperature. The diesel cooling chapter specifies thermostat opening at 85 ± 2°C.

For the Actyon front ventilated brake discs, the specification table distinguishes a 26 mm nominal thickness from a 24 mm wear limit.
