Allis-Chalmers 8010, 8030, 8050, 8070 Tractor Shop Manual (1982–1985)

This 1988 Intertec Publishing shop manual covers Allis-Chalmers 8010, 8030, 8050 and 8070 tractors. It distinguishes the 649T (8010), 670T (8030) and 670I (8050/8070) engines, with separate procedures for Power Director and Power Shift equipment.

PDF Search, Bookmarks and Included Pages

Index and diagram access: PDF text search is not available. Page-range bookmarks are present, but several have no working destination. The model-by-model index points to numbered repair paragraphs. Small alternator test-point labels require zooming.

The ZIP download contains one printable, 87-page PDF reproducing numbered pages 2–88. Numbered page 1 is not included.

Engine Overhaul, Transmission Repair and Hydraulic Testing

These selected workshop topics outline the repair coverage rather than reproduce the full index. Other subjects include throttle-linkage adjustment and remote-valve self-cancelling pressure adjustment.

• Engine repair: Step-by-step engine removal and reinstallation, cylinder-head and valve service, timing gears, camshaft bushings, pistons, sleeves, crankshaft and bearings.

• Fuel and turbocharger: Filter bleeding, injection-pump timing and replacement, nozzle testing and overhaul, turbocharger rebuilding, and intercooler service for equipped models.

• Transmission service: Torque limiter, Power Director, standard transmission, Power Shift and range transmission repair, with troubleshooting, pressure tests, control-valve service and clutch-pack overhaul.

• Axles and steering: Two-wheel-drive and front-wheel-drive axle repair, optional no-spin differential service, front-drive clutch diagnosis, steering bleeding, flow tests and cylinder leakage checks.

• Brakes and PTO: Brake-control valve testing and overhaul, wet brake-disc service, PTO clutch and brake repair, and output-shaft removal and installation.

• Hydraulic system: Pump flow and pressure testing, piston-pump compensator service, hitch and Traction Booster adjustment, remote valves, lift housing and lift-cylinder repair.

• Electrical diagnosis: Analog gauges and warning lights, safety-start switches, alternator and regulator testing and overhaul, plus starting-motor test specifications.

This manual suits mechanics experienced in tractor splitting and hydraulic diagnosis, with access to lifting equipment, a press, pressure gauges and a flow meter.

Engine Internals and Cooling Components

Cylinder-head work includes inspection, valve seats, guides, springs and rocker arms, plus injection-nozzle sleeve replacement on the 8010. Internal repair extends to rod-and-piston assemblies, cylinder sleeves, camshaft bushings, crankshaft bearings, oil seals and flywheel service.

Lubrication coverage separates the oil pumps and relief valves by engine configuration. Oil-cooler service, radiator removal, thermostat testing and water-pump overhaul are also included.

Injection Equipment and Turbocharger Service

The fuel sections distinguish the 8010’s Roosa-Master DM-4 pump from the American Bosch M-100 used on the other three models. Pump work covers tractor-side timing, removal and installation; internal injection-pump overhaul is outside this manual’s scope.

Nozzle service covers fault isolation, opening-pressure, spray-pattern and seat-leakage tests, followed by disassembly, inspection and reassembly. Robert Bosch and American Bosch nozzle arrangements are distinguished by engine serial-code information.

AiResearch turbocharger coverage includes failure assessment, shaft measurements and internal overhaul. The separate intercooler section applies to the 8050 and 8070.

Power Director and Power Shift Diagnosis

Pump-flow, regulator, clutch, crossover and lubrication checks help distinguish supply problems, control-valve faults and clutch leakage before teardown. Power Director repair also covers the high-range hollow drive shaft and countershaft front gear.

Power Shift diagnosis adds stall testing, modulator and inching checks, a gear-to-clutch application chart and air-pressure checks before and after overhaul. Its assembly chart separates the 8010 from the 8030/8050/8070 build, including check balls, separator plates, friction plates and tooth patterns.

The Power Director section warns that insufficient clutch end clearance can score the hubs. The Power Shift output-shaft procedure identifies bearing damage caused by pressing the sleeve and bearing together.

Standard-transmission procedures distinguish the installed gear arrangements; range-transmission repair covers rear splitting, shaft removal, bearing adjustment and park-lock components.

Axles, Steering, Brakes and Cab

Front-drive repair extends through hubs, planetary units, bevel gears, axle shafts and the electrically controlled clutch and valve. The optional no-spin differential has spring-loaded clutches and a dedicated restraint procedure.

Rear differential and final-drive chapters cover bearing preload and backlash adjustment. Steering material includes control-valve overhaul and steering-column service; brake sections separate valve faults from piston leakage.

PTO service distinguishes 540/1000-rpm dual-speed and 1000-rpm single-speed output assemblies and includes clutch, brake, mainshaft and idler-shaft work. Cab removal identifies early Type 1 and late Type 2 rear isolator mounts.

For tractor splits, axle or cab removal, and hydraulic testing, use rated blocking and lifting equipment, disconnect battery grounds, and relieve system pressure before lines or valves are opened.

Hydraulic Circuits and Compensator Variants

The axial-piston, gear and gerotor pumps supply separate circuits. Testing distinguishes priority-flow problems from total pump-output faults and covers oil transfer between reservoirs. Compensator procedures separate shim-adjusted units from late-production screw-adjusted units.

Assembly Views and Service Data

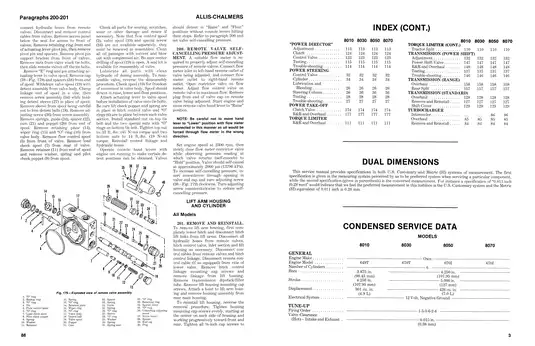

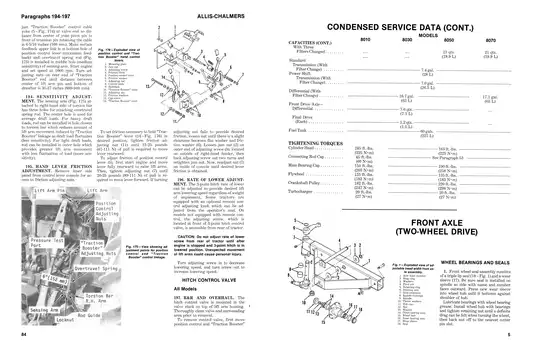

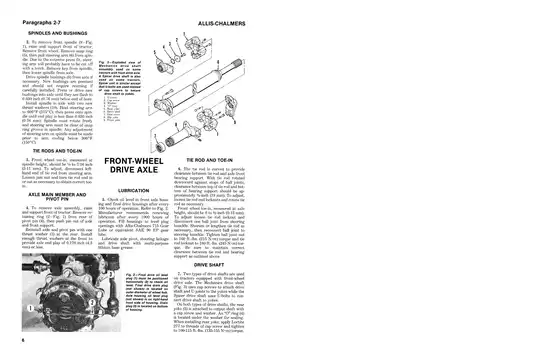

Illustrations run through Fig. 185. Examples include the front-drive differential and pinion exploded view, steering control-valve exploded view, engine timing and pump-index views, Power Director valve assembly, Power Shift clutch assembly chart and piston-pump compensator layouts.

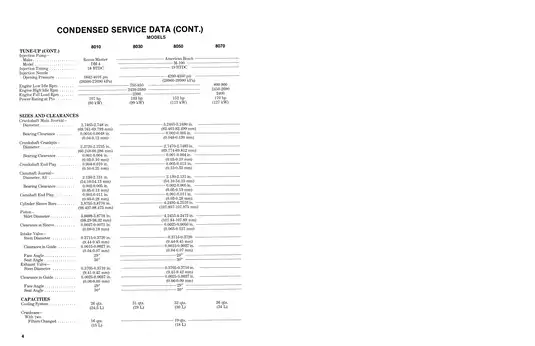

Condensed service data and repair paragraphs supply fluid capacities, tightening sequences, clearances, wear limits and electrical test specifications in U.S. customary and metric units.

Electrical illustrations include alternator test connections and component test points; a tractor-wide wiring schematic is not included.

Selected Valve and Turbocharger Clearances

For the covered engines, valve specifications list 0.018 inch (0.45 mm) cold after mechanical work and 0.015 inch (0.38 mm) for intake and exhaust valves at normal operating temperature.

AiResearch turbocharger inspection specifies shaft end play of 0.001–0.004 inch (0.03–0.10 mm), alongside radial-clearance checks and wear limits for overhaul.
