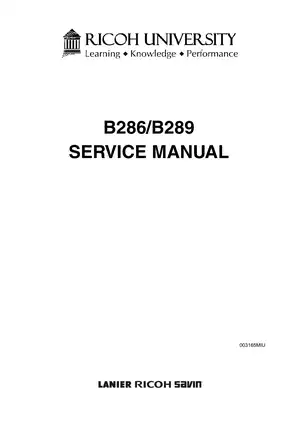

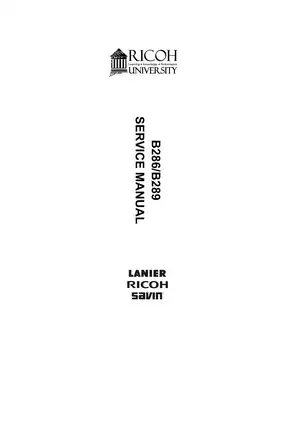

Ricoh B286/B289 Printer Service Manual (P/N 003165MIU)

• OEM document identity and model coverage: Ricoh University service manual P/N 003165MIU, dated 07/2007 and marked Original Printing; a 622-page PDF for B286/B289 wide-format machines. The model legend maps B286 to Gestetner GWD2004, Lanier LW324, Ricoh MPW2400, and Savin 2404WD, and B289 to GWD2006, LW336, MPW3600, and 2406WD.
• Installation and configuration work: Covers siting, leveling, power, main-machine setup, developer initialization, circuit-breaker testing, B851/B852 roll feeders, the B853 paper cassette, B854 table, D311 original hanger, D312 rear stacker, and MFP options.
• Imaging-system repair procedures: Details removal and replacement of the CIS assembly, exposure glass, LPH, charge and transfer/separation corona components, development unit and developer, OPC drum, cleaning blade, ID sensor, pick-off pawls, and toner-recovery parts.
• Paper-path, drive, and fusing service: Documents roll and cassette feed clutches, rollers, sensors, cutter and feed motors, registration components, fusing unit, hot and pressure rollers, thermistors, thermostats, strippers, drive motors, HDD, cooling fan, and ozone filter.
• Factory image setup and calibration: Provides SP-based magnification checks for plain, translucent, and film media; printer and scanner registration; roll cut-length and synchro-cut adjustment; CIS-joint correction; and LPH alignment, light-level, and density procedures.
• Diagnostics and system reference: Includes SC-code fault isolation, scanner/plotter/folder jam tables, image-problem flow charts, VDB/IPU test patterns, board-LED checks, input/output tests, firmware updating, NVRAM transfer, peripheral adjustments, and SP data logs.

Cross-Brand Coverage and Option Dependencies

Ricoh states that users should be service-trained personnel or technicians certified through a Ricoh Technical Training Program. Its repair depth, live diagnostic checks, high-voltage assemblies, and required SP-mode work make it a factory technician reference rather than an entry-level owner guide.

The specifications distinguish the B286 at 2 copies per minute for A0/E and 4 cpm for A1/D from the B289 at 3 and 6 cpm. Tables also cover supported media, capacities, zoom ranges, power configurations, dimensions, and weights.

The B851 is the one-roll feeder and the B852 the two-roll version. The B853 paper cassette installs inside a roll feeder and is not a stand-alone base option; the B854 table is the alternative when no roll feeder is fitted. A roll feeder is required for the D320/D344 printer option. MFP coverage extends to the D320 printer and D321 scanner ROM options, B609-04 File Format Converter, D329 interface PCB, wireless and Gigabit Ethernet interfaces, B735-18 Data Overwrite Security Unit, G819-01 USB Host Interface, B828-03 Browser Unit, and D338 VM cards.

Image-Path Repair, Calibration, and Fault Isolation

The replacement chapter ties mechanical repair to the required factory checks. Developer work includes lot-number entry, mixing, and ID-sensor initialization. Drum and cleaning-blade service connects to the specified blade-replacement mode; roll-feed work leads into cut-length correction; and board coverage includes MCU/IPU/MB, PSU and circuit breaker, GW controller, RFDB, SFDB, NVRAM transfer, and post-replacement initialization.

Adjustment procedures go well beyond basic copy-quality settings. Separate routines address horizontal and vertical magnification by media type, scanner masks and erase margins, leading-edge and side-to-side registration at each feed station, scanner registration, roll cut length, and trailing-edge synchro cut. CIS test patterns are used to correct image discontinuities at sensor joints, while LPH routines cover replacement data entry, joint timing, mechanical alignment, LED light level, and density correction.

Troubleshooting is organized around SC1xxx through SC9xxx service-call families, standby/late/lag jams, cover-interlock states, fuse identification, and board LEDs. The image-problem flow chart uses separate scanning, printing, and image-writing patterns to narrow a fault before parts are changed. SP1 through SP8 tables supply feed, drum, process-control, scanner, operating-mode, peripheral, counter, and data-log parameters, including media-specific fusing-temperature and pressure-feedback controls.

Illustrated reference pages include the Mechanical Component Layout, Drive Layout, Original/Copy Paper Paths, General Image Processing Flowchart, Overall System, and IPU Board Details. Electrical coverage centers on functional system diagrams, component tables, LED diagnostics, and board replacement; this is not a stand-alone wiring-diagram book.

Folder-unit coverage is limited to preventive-maintenance items, fault and jam data, I/O tests, and SP adjustments; deeper fold-mechanism information is referred to the separate Folder FD 6500 service manual. Printer/scanner controller installation is likewise referred to its own installation manual.

Component-specific cautions matter during repair. The manual explains that the drum/blade pre-coat mode reduces the risk of drum scratches or a bent cleaning blade, and it flags the long exposure glass as easy to break while showing its correct support and seal positions. Because some circuits can remain energized with the main switch off and the fusing area retains hazardous heat, disconnect the machine from mains power before internal disassembly and follow the manual's trained-service precautions.
