Ricoh K-C3 Copier Service Manual (2006) — B245, B276, B277, B268, B269
266 Pages • 1 Printable PDF (English) • Download
Ricoh Models Covered & Key Technical Specifications
Models: B245, B276, B277, B268, B269
Sub-models / Variants: K-C3, GDI Printer/Scanner Configurations (optional controllers B865/B866), Basic Machines, Two-tray Duplex Models (B269/B277), One-tray Non-duplex Models (B245/B268/B276)
Trade Names: K-C3
Model Year: 2006
-
Input Voltage (North and South America/Taiwan): 110–120V, 60Hz, 12A
-
Input Voltage (Europe/Asia): 220–240V, 50/60Hz, 7A
-
Temperature Range: 10°C to 32°C (50°F to 89.6°F)
-
Humidity Range: 15% to 80% RH
-
Ambient Illumination: <1,500 lux
-
Ambient Dust: <0.075 mg/m3 (2.0 x 10-6 oz/yd3)
-
Clearance Requirements (Front): 750 mm (30 inches)
-
Machine Leveling Tolerance: 5 mm (0.2 inches) in all directions
Ricoh Manual Features & Selected Content Preview
Ricoh’s K-C3 copier service manual, dated January 18, 2006, covers B245, B276, B277, B268, and B269, including basic copiers and configurations with the optional GDI printer/scanner controller.
Searchable Service Text and Chapter Bookmarks
Search and diagram detail: The service text is searchable, and bookmarks lead to the main chapters and many subsections. Some diagram labels and table entries are embedded as images. Labels in the laser power-control and safety-switch diagrams are legible. Some ± signs are missing from the copy-adjustment pages; the corresponding SP tables show the complete values. External technical bulletin links require separate files.

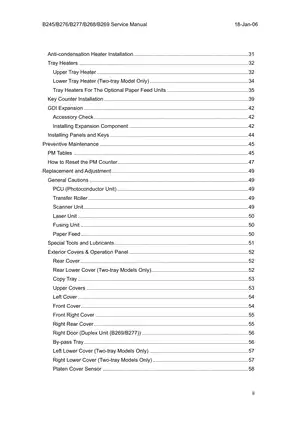

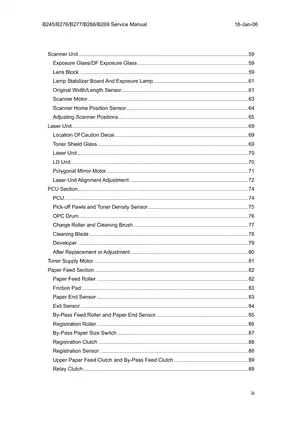

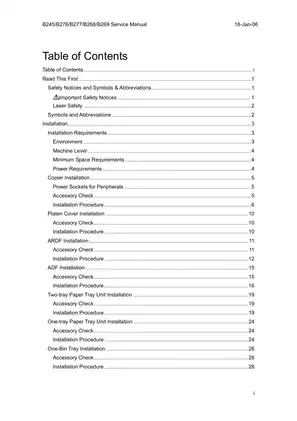

The download is one printable English-language PDF with 266 pages, including the cover and eight contents pages. The other 257 pages contain the service documentation.
Copier Setup, Imaging Repair, and Fault Diagnosis
These are selected topics from the manual. It also covers original-size detection by region and energy-saver behavior for basic and GDI machines.
- Installation and options: Copier setup, ADF and ARDF installation, optional one- and two-tray paper-feed units, one-bin tray installation, and anti-condensation and tray heaters.
- Photoconductor and developer service: Preventive maintenance tables, PM counter reset, and replacement of the OPC drum, charge roller, cleaning blade, developer, and toner-density sensor.
- Scanner and laser alignment: Lens-block replacement, scanner positioning, laser alignment, copy registration and magnification, and standard white-density adjustment.
- Paper transport and fusing: Feed rollers, clutches, paper sensors, hot and pressure rollers, and dedicated duplex service for the B269 and B277.
- Fault diagnosis: Service Call (SC) codes, sensor and switch fault tables, BICU LED indications, Service Program (SP) input and output checks, and image-density sensor diagnostics.
- Firmware and machine data: Separate engine and GDI firmware updates, memory-clear procedures, NVRAM handling, test patterns, and SMC diagnostic reports.
Ricoh specifies model-trained service representatives for installation and maintenance and reserves SP mode for service personnel.
Document Feeders and Preventive Maintenance
The installation section identifies the B813 ADF and B814 ARDF. The manual also covers feeder maintenance, ADF image registration and magnification, and feeder-related diagnostic checks.
The preventive maintenance tables distinguish cleaning, inspection, lubrication, and replacement tasks for the optics, drum area, paper feed, fuser, and peripherals.
PCU, Scanner, and Fuser Repair
The photoconductor unit (PCU) section distinguishes individual component replacement from complete-unit replacement and identifies SP 2214 for toner-density sensor initialization after fitting a new PCU. Ricoh warns that alcohol can dissolve the OPC drum surface.
The scanner procedures use positioning pins A0069104, and the special-tool list identifies the S5S test chart A2929500. Laser alignment uses the Trimming Area test pattern. Repair inside the laser optical housing requires a factory or suitably equipped facility. Ricoh also cautions against disturbing the factory-set laser diode adjustments.
The fuser section covers hot and pressure rollers, stripper pawls, bushings, and thermistors. The nip-band procedure assesses band shape and symmetry at operating temperature.
Sensor Faults, Board Layout, and Firmware
The electrical fault tables pair open- and short-circuit symptoms with BICU connector and pin references. For a false paper-jam report, a technician can use the jam history and SP input checks alongside those tables to narrow the fault to the relevant sensor circuit.
Component, paper-path, and drive diagrams show how the mechanisms are arranged. The board block diagram and the Auto Power Control and laser diode safety-switch circuits explain the electronics. The image-processing section describes auto shading and the IPU and VCU functions within the BICU’s SCRATCH chip.
The BICU replacement procedure explains how the original NVRAM preserves machine-specific data. Flash-card NVRAM upload and download apply to the basic copier only. GDI models store engine and controller data separately, with distinct memory-clear procedures.
Selected Platen Registration and Print Magnification Values
For scans from the platen, Ricoh specifies 2 ± 1.5 mm for both leading-edge and side-to-side registration. The scanner service tables associate those checks with SP 4010 and SP 4011, respectively.
For copy and print output, the main-scan magnification specification is 100 ± 1.0%. The print adjustment is listed under SP 2998.
