2006 Ricoh B230/B237 (AT-C1) Copier Service Manual

This Ricoh AT-C1 service manual, dated April 21, 2006, covers machine codes B230/B237. It documents installation, preventive maintenance, component repair and replacement, and Service Program adjustments.

• Image creation and transfer: PCU, drum and development-unit service, developer initialization, toner supply, image transfer belt replacement, and cleaning-unit maintenance.

• Scanning and color alignment: Scanner-wire and polygon mirror motor replacement, touch panel calibration, automatic line position adjustment (MUSIC), and gamma correction.

• Fusing and paper handling: Fusing belt, pressure roller and lamp replacement, paper-feed roller service, drive motors, and duplex transport and inverter mechanisms.

• Electrical diagnostics: SC-code tables, jam histories, sensor and connector fault tables, input/output checks, scanner tests, and controller self-diagnostics.

• Firmware and stored data: SD-card firmware updates, BICU and controller NVRAM replacement, address book backup, and HDD debug-log retrieval.

• Peripheral installation: Paper feed units, large-capacity trays, the ARDF, bridge units, and finishers, with option-combination requirements and maintenance tables.

This manual suits technicians trained on these copier models who are familiar with SP mode, electrical diagnosis, and internal copier service.

PCU Maintenance and Color Registration

The preventive maintenance section distinguishes individual drum and developer replacement from complete PCU replacement. It explains automatic new-unit detection, PM-counter handling, Automatic Color Calibration (ACC), and the checks associated with returning the machine to service.

Color-registration coverage connects forced MUSIC adjustment with laser housing, drum-drive, and image transfer belt work. Troubleshooting tables distinguish pattern-detection failures from out-of-range registration, helping technicians narrow a color-shift complaint to the sensors, belt, optics, or drive system.

The image transfer belt instructions include orientation and roller-position illustrations. A specific reassembly caution explains how misplaced lubricant powder can damage the encoder sensor.

Scanner, Laser Optics and Fusing Repairs

Scanner coverage includes the exposure lamp, scanner motor, Sensor Board Unit (SBU), front and rear scanner wires, and touch panel position adjustment. The laser section documents housing replacement, polygon mirror motor replacement, and the associated registration adjustments.

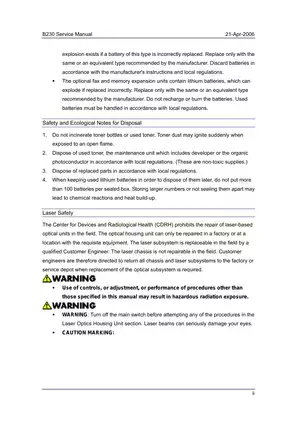

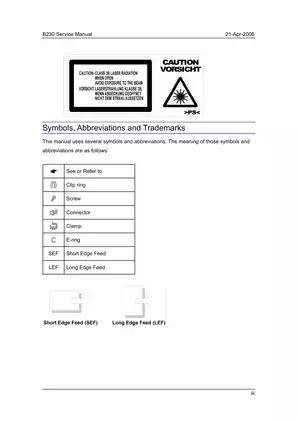

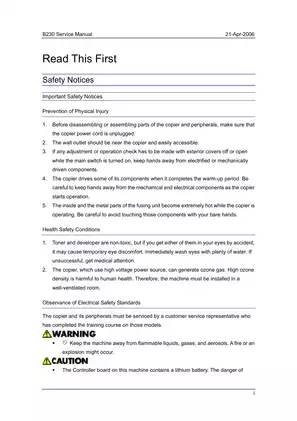

Internal repair of laser optical units is restricted to factory or properly equipped service facilities. The manual’s electrical-isolation and laser-safety precautions apply to this work.

Fusing procedures cover the belt, pressure roller, lamps, thermistors, thermostats, thermopile, bearings, and insulating bushings. Paper-feed and duplex sections document pickup, feed and separation rollers, registration components, and transport motors. The fusing section also addresses burn hazards from hot components.

SP Diagnostics, NVRAM and Firmware

For troubleshooting, the manual provides Service Program tables, SC-code classifications, sensor fault symptoms, and test-pattern selections. Scanner VPU and BICU tests address image-processing faults, while input/output tables cover motors, clutches, solenoids, fans, and detection switches.

Separate NVRAM procedures address the BICU and controller boards, SMC reports, and SD-card backups. Handling cautions explain how static electricity can damage stored NVRAM data. Firmware coverage includes operation-panel updates, update-error recovery, address book transfers, and saving debug information from the HDD.

Detailed controller self-diagnostics specify parallel loopback connector G0219350. The Special Tools section also identifies its interface and plug requirements.

Illustrated references include Component Layout and Paper Path views, the Board Structure block diagram, Image Quality troubleshooting flowcharts, a Process Control Self Check flowchart, and Fusing Temperature Control diagrams.

Installation and Finisher Configuration

Installation coverage includes environmental conditions, ventilation, machine leveling, and power requirements. The developer and toner installation procedure identifies different preparation requirements for GSA (-58) and EU (-67/-26) versions.

Peripheral sections cover the B800 Paper Feed Unit, B801 Large Capacity Tray, and B789 Auto Reverse Document Feeder. Finisher installation includes the B792 500-Sheet Finisher, B408 1000-Sheet Finisher, and B793 1000-Sheet Booklet Finisher, with bridge-unit and paper-feed configuration requirements.

A Sample of Scanner and ID-Sensor Adjustment Data

The following imaging values are a small selection of the adjustment specifications in the manual.

For platen scanning, registration standards are 0 ± 2 mm at the leading edge and 0 ± 2.5 mm side to side. The corresponding scanner SP adjustments are identified in the repair section.

During process-control calibration, the ID-sensor VSG target is 4.0 ± 0.5 V while reading the bare transfer belt. This condition distinguishes the calibration reference from toner-pattern readings.

PDF Text Search, Bookmarks and Diagram Detail

Search and navigation: Main text and service tables support text search; some Image Quality flowchart labels are not searchable. Embedded bookmarks navigate the service chapters, while technical-bulletin links reference separate files. Small labels in electrical block diagrams require zooming.

The download is one printable, English-language 884-page PDF, comprising one cover page, 15 preliminary pages, and 868 numbered service pages. All front matter is included in that total. The separately linked technical bulletins are not included.
