Ricoh B262/B280/B292/B293 Copier 2006-2010 Service Manual

This comprehensive service manual guides you through installation, maintenance, and troubleshooting for Ricoh copier models B262, B280, B292, B293. Includes diagrams and part numbers.

4.5starstarstarstarstar_half(2)
★ TOP SELLER
visibility Preview Available
Ricoh Ricoh B262/B280/B292/B293 Copier 2006-2010 Service Manual manual page preview - page 1 of 229

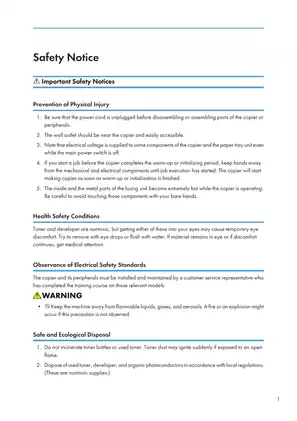

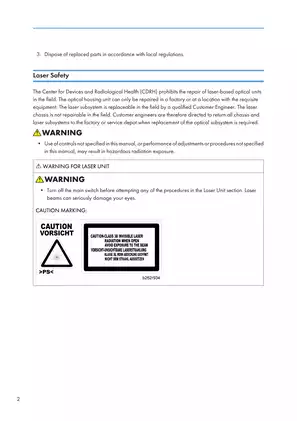

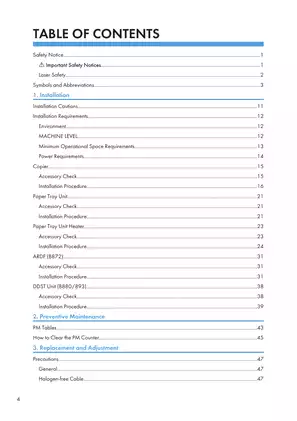

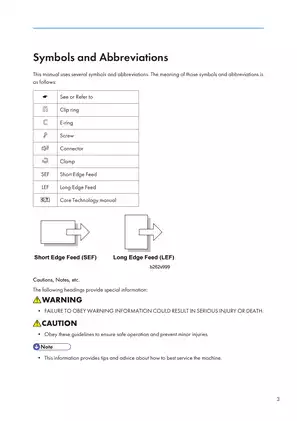

Sample pages from the Ricoh B262/B280/B292/B293 Copier 2006-2010 Service Manual manual

Ricoh Ricoh B262/B280/B292/B293 Copier 2006-2010 Service Manual manual preview page 1 - thumbnail
Ricoh Ricoh B262/B280/B292/B293 Copier 2006-2010 Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$5.68 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Ricoh Models Covered & Key Technical Specifications

Models:
Ricoh B262, B280, B292, B293
Sub-models / Variants:
Basic Model (B262, B292), GDI Model (B280, B293)
Trade Names:
S-C3
Build Years:
2006–2010
Technical Data:

  • Power Requirements (North America): 110–120 V, 60 Hz, 8 A
  • Power Requirements (Europe): 220–240 V, 50/60 Hz, 4 A
  • Operating Temperature Range: 10°C to 32°C (50°F to 89.6°F)
  • Operating Humidity Range: 15% to 80% RH
  • Ambient Illumination Limit: Less than 1,500 lux
  • Machine Leveling Tolerance: Within 5 mm (0.2") of level
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
25578 / Amanda Cook
File Size:
7.48 MB
File Type:
PDF
Language:
Pages:
229
Printable:
Yes
Category:
Copier
Last updated / verified
Oct 2, 2025

Ricoh Manual Features & Content Preview

Technical Scope and Service Data for the Ricoh B262/B280/B292/B293

  • Covers the 2006–2010 Ricoh B262, B280, B292, and B293 copier series, including both basic and GDI configuration variants
  • Original OEM publication dated June 30th, 2006, machine code S-C3
  • Contains 105 technical illustrations, 5 primary service tables, and detailed component layout schematics
  • Files include technical specifications for power, environmental tolerances, and machine leveling requirements
  • No shipping wait — the PDF is available immediately after purchase
  • Indexed PDF search covers every chapter and appendix
  • This 2006 first edition serves as the foundational reference for the S-C3 machine code architecture and subsequent 2007–2010 production runs

Documenting System Installation and Maintenance

The Ricoh B262/B280/B292/B293 service manual provides a structured walkthrough of installation procedures, including environmental requirements for stable machine operation. The documentation details the setup of core peripherals such as the Paper Tray Unit, the ARDF (B872), and the DDST unit (B880/893). A section dedicated to preventive maintenance outlines schedules for cleaning and replacement of optics, drum area components, and paper feed assemblies. Technicians will find the clear section on how factory workshop documentation is structured helpful for navigating system architecture, from paper paths to image processing steps.

Technical Reference and Specification Highlights

Specifications are provided for the printer, scanner, and copier modules, including supported paper sizes and machine configurations. The Ricoh B262/B280/B292/B293 service manual documents the BICU and GDI controller board maintenance, including memory clearing and NVRAM data management procedures. Key reference values include the 10°C to 32°C temperature operating range and the 5 mm leveling requirement for machine stability. The fusing unit nip band check and scanner alignment procedures are documented for precise calibration. All service data shown here is for reference only — qualified technicians and the original OEM documentation remain the authoritative source for any hands-on work.

Manual FAQ, Purchase & Download Details

Can I find specific connector references or component layouts for the copier internal systems in this manual? keyboard_arrow_down

Manual includes detailed section descriptions covering component layouts and electrical components to help you understand the machine architecture.

Which chapters or sections contain information about wiring diagrams and electrical component locations? keyboard_arrow_down

Detailed section descriptions for the main PCBs and electrical components are provided in the manual. These sections reference block diagrams for PCBs and other electrical components to support your review of the machine systems.

What information regarding environmental and electrical requirements is included for these Ricoh copier models? keyboard_arrow_down

Installation requirements section lists specifications for temperature, humidity, and ambient dust levels for optimal performance. It also covers power requirements by detailing input voltage and frequency ratings for different regions.

Does this service manual provide lookup tables for service programs or firmware settings? keyboard_arrow_down

Service tables are included and reference various modes such as copier service programs, input and output checks, and firmware update procedures.
