Ricoh K-C2 Copier Service Manual (2003)
321 Pages • Printable PDF • 7.26 MB • Download
Xerox Models Covered & Key Technical Specifications
Model: K-C2
Sub-models / Variants: Basic Machine (without optional controller box), MFP Machine (with optional B658 controller box), One-tray non-duplex (B121), Two-tray non-duplex (B122), Two-tray duplex (B123)
Model Year: 2003
-
Input voltage (North and South America/Taiwan): 110–120 V, 60 Hz, 12 A
-
Input voltage (Europe/Asia): 220–240 V, 50/60 Hz, 7 A
-
Operating temperature range: 10°C to 32°C (50°F to 89.6°F)
-
Operating humidity range: 15% to 80% RH
-
Ambient dust limit: < 0.075 mg/m³
-
Installation altitude limit: Up to 2,000 meters (6,500 ft.)
-
Machine leveling tolerance: Within 5 mm
Xerox Manual Features & Selected Content Preview
This K-C2 copier service manual, dated December 1, 2003, covers the Ricoh Aficio 2015, 2018, and 2018D copiers (machine codes B121, B122, and B123).
PDF Search and Chapter Bookmarks
Finding service information. Search the manual text or use the bookmarks to jump to the main chapters. Some bulletin bookmarks point to a separate file. Zoom in for the smallest labels in the board diagrams and connector tables.

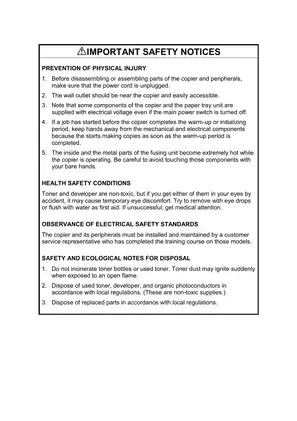

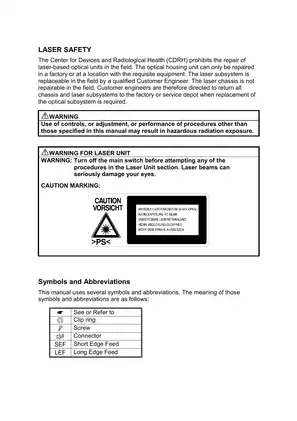

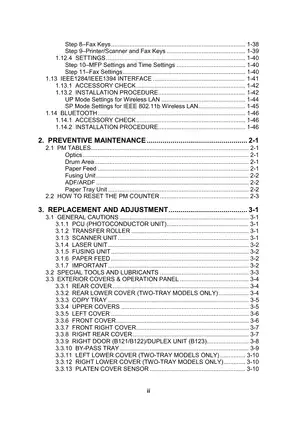

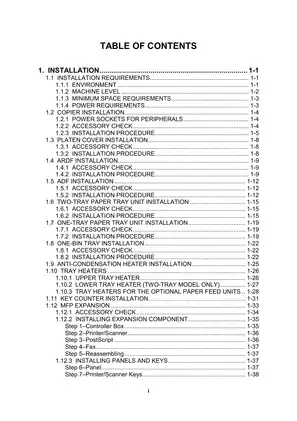

The download is one printable English-language PDF with 321 pages, including the cover, two pages of safety notices and symbols, and a 10-page table of contents.
Copier Setup, Imaging Repairs, and Fault Diagnosis
The topics below are a selection from the manual. The operating descriptions also cover drum charge correction and toner recycling.
- Installation and options — Step-by-step procedures cover copier setup, the platen cover, ADF and ARDF, optional paper trays, heaters, the key counter, and MFP expansion.
- Preventive maintenance — Cleaning, inspection, lubrication, and replacement schedules cover the optics, drum area, paper feed, fuser, document feeders, and optional tray units.
- Scanner and imaging repairs — Covers scanner belt alignment, lens block and exposure lamp replacement, laser alignment, and service of the PCU, OPC drum, charge roller, and developer.
- Paper transport and fusing — Covers feed clutches and sensors, registration, image transfer, fuser roller and thermistor replacement, and B123 duplex motor and control board replacement.
- Fault diagnosis — SC fault codes, connector-referenced sensor and switch tables, fuse conditions, BICU LED status, jam histories, and Service Program input and output checks.
- Service Program adjustments — Separate Basic and MFP tables support registration, magnification, standard white density calibration, memory clear, serial number entry, and firmware updates.
The manual is for copier service technicians who have completed training on these models.
Installation, Options, and Maintenance
The installation chapter covers site conditions, machine leveling, service clearance, and grounded power. Initial setup includes developer loading, TD sensor initialization in Service Program mode, language selection, and print registration checks. Original-size sensor diagrams include the China-market 8K/16K arrangement. A separate procedure shows how to reset the preventive maintenance counter.
Option procedures identify the B406 platen cover, B616 ADF, B617 ARDF, and B384/B385 paper tray units. MFP setup covers the B658 controller box, RAM, SD card hardware, USB board, B620 fax, B622 printer/scanner, B681 PostScript 3, and the required panels, keys, and settings. IEEE 1284, IEEE 1394, wireless LAN, and Bluetooth share one expansion slot.
The B621 one-bin tray installation applies to B122 and B123 machines fitted with the optional controller box. The PDF covers installation of the B621 tray and the B616/B617 feeders. Dedicated repair procedures for these peripherals require their separate service documentation.
Component Replacement and Adjustments
The scanner procedure uses positioning pins to align the carriage, and the laser alignment procedure uses the Trimming Area test pattern. Disturbing the paint-locked screws on the lens block or LD unit can shift factory alignment. The PCU section explains how toner on the edge of a new cleaning blade protects the blade and OPC drum.
Other procedures cover the fusing lamps and nip band, the BICU, power supplies, motors, and fans. The numbered Gear Arrangement drawing shows where each gear belongs if the train comes apart. The special-tools table identifies the A0069104 scanner positioning pins, A2929500 Test Chart S5S, A0299387 Fluke 87 digital multimeter, A2309352 flash memory card, G0219350 loopback connector, and B6455010 SD card assembly.
Some assemblies remain energized with the main switch off, and the fuser can retain heat. Field replacement of the laser subsystem requires a qualified technician. Optical housing and laser chassis repairs require a factory or service depot.
Electrical Diagnosis and Service Data
For a recurring jam with an empty paper path, the sensor fault table links the symptom to a BICU connector reference. The Service Program input check lets the technician compare that symptom with the sensor status. The manual also covers ID sensor error analysis, APS displays, SMC printouts, and service test patterns.
Basic machines use a flash memory card for firmware updates and NVRAM data transfer. MFP machines use an SD card. The BICU replacement procedure identifies which machine-specific data are retained by transferring the original NVRAM.
The Component Layout, Paper Path, and Drive Layout locate assemblies and trace media movement. The Board Structure block diagram shows how the BICU and SBU connect to other assemblies. The Copy Process Overview and Image Processing Path explain scanner drive and detection, laser auto-power control, toner-density control, transfer timing, fusing, duplex operation, and energy-saving sequences. Electrical references go as far as functional diagrams and connector-level fault tables. Specification tables cover regional size detection, supported media, machine configurations, and optional equipment.
A Look at Fuser Checks and Feeder Intervals
The fuser nip-band test holds a transparency in the fuser for 20 seconds. The procedure evaluates the resulting stripe by its symmetry and profile.
The ADF/ARDF maintenance table schedules replacement of the feed belt, separation roller, and pickup roller at 80,000 prints.
