Evinrude E-TEC 200/225/250 HP 2007 Outboard Service Manual (P/N 5007215)

This BRP factory service manual, P/N 5007215, covers the listed 2007 Evinrude E-TEC 200, 225, and 250 HP outboards, including the 200 and 225 High Output variants. It addresses model identification, installation, diagnosis, maintenance, and repair, with standard-rotation, counter-rotation, Saltwater Edition, and blue- or white-finish configurations identified in the model information. The shared EMM service-code chart does not extend repair coverage to other engine families.

Searchable PDF and Wiring Detail

Text search and diagram detail: The manual body has searchable text and embedded section and subsection bookmarks. Small connector and pin numbers in the large color wiring diagram are readable when enlarged.

One printable English PDF contains 406 pages, including both covers and three blank or page-number-only pages. The total also includes six Trouble Check Chart pages, seven diagram sheets, and the two-page EMM Service Code Chart.

E-TEC Diagnostics, Powerhead Repair, and Lower-Unit Service

The following selected topics illustrate the manual’s coverage rather than reproduce its full contents. Other subjects include reed-valve inspection and exhaust-pressure-fitting maintenance.

• Installation and rigging: Transom measuring and drilling, outboard lifting and mounting, steering, control cables, battery switching, auxiliary charging, MWS/CANbus connections, and dual-outboard alignment.

• EMM and SystemCheck: LED and service-code interpretation, stored and persistent fault histories, static and dynamic tests, cylinder-drop diagnosis, timing verification, injector programming, and EMM transfer.

• Fuel, oil, and cooling systems: Pressure, vacuum, resistance, and flow tests; injector and vapor-separator service; oil-system priming; and thermostat and pressure-relief-valve repair.

• Powerhead and electrical repair: Compression testing, crankcase disassembly, cylinder and bearing inspection, piston/crankshaft assembly, flywheel and starter service, sensor/charging tests, spark-plug indexing, and connector repair.

• Midsection and gearcases: Tilt-tube, exhaust-housing, and stern-bracket service; water-pump replacement; standard/counter-rotation teardown; bearing/seal replacement; driveshaft shimming; and reassembly.

• Power trim/tilt: Hydraulic leakdown, relay and motor tests, unit removal, cylinder disassembly and assembly, air purging, and trim-sender and tilt-limit adjustment.

• Maintenance and troubleshooting: Inspection schedules, corrosion-continuity checks, flushing, lubrication, winterization, submerged-engine recovery, service charts, an alphabetical index, symptom tables, wiring diagrams, and the EMM service-code chart.

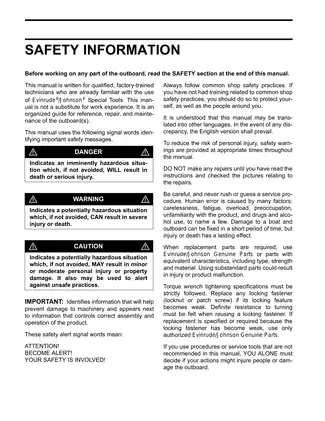

BRP wrote this manual for qualified, factory-trained technicians who are already familiar with Evinrude/Johnson Special Tools; it assumes workshop experience.

EMM Diagnosis and Electrical References

Fault-history screens record event counts and operating hours, while persistent faults retain a history that cannot be erased. Comparing these records with component tests helps a technician connect a running complaint with the appropriate fuel, ignition, or supply-circuit checks.

Software-based work uses Windows-based Evinrude Diagnostics P/N 763724 and interface cable P/N 437955. EMM software replacement also calls for Bootstrap Tool P/N 586551. The manual explains injector-coefficient updates, replacement-controller transfer, and timing verification after affected repairs.

The EMM Inputs and Outputs Diagram and Start Circuit Diagram support controller and starting-system diagnosis. The 200–250 HP Evinrude E-TEC Fuel System Electrical Circuits, Oiling System Electrical Diagram, and Hose Routing and Water Flow Diagram provide system-specific references. The color 90° V6 / 200–250 HP E-TEC wiring diagram identifies component connections and pin locations.

Fuel Delivery, Oil Distribution, and Cooling

Replacement injectors require coefficient programming matched to their cylinder locations, rather than mechanical installation alone. Fuel-system coverage also includes manifold service, injector sealing components, and supply-side fault isolation.

Oil-system tests distinguish electrical activation, supply restrictions, and delivery through the distribution fittings. The oil injection pump and manifold are replaced as an assembly; their individual components are not separately serviceable.

Cooling diagnosis separates thermostat-controlled low-speed operation from pressure-relief-valve operation at higher speeds. It also addresses water flow through the EMM and vapor separator, including cooling faults that can trigger S.A.F.E. or shutdown.

Internal Repair and Gearcase Setup

Step-by-step procedures cover powerhead removal, internal disassembly, inspection, assembly, and installation. Each connecting-rod cap belongs to its original rod; incorrect alignment or tightening without the specified fixture can permanently damage the rod and crankshaft. Incorrect starter-brush orientation can damage the starter or cause reverse rotation.

The large-gearset M-type and high-speed-profile L-type gearcases use different shimming gauge bars. Counter-rotation units have dedicated shaft, shift-housing, gear, bearing, and seal procedures, and their parts must not be interchanged with standard-rotation components. Housing inspection calls for Gearcase Alignment Gauge Kit P/N 5006349.

Trim/tilt pressure testing uses Service Kit P/N 434524. Cylinder, rod, seal, reservoir, and motor work is covered, but individual internal parts of the pump manifold are not supplied separately.

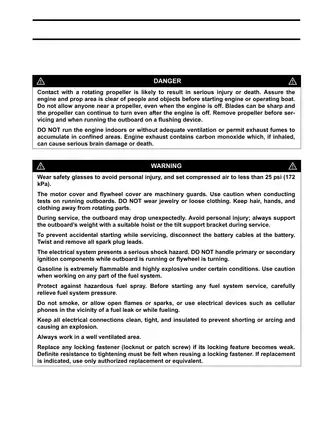

The safety material requires battery isolation and spark-plug lead removal against accidental starting, proper support of a raised outboard, propeller removal where specified, and fuel-pressure relief before fuel-system service.

Preview: Injector Resistance and Fuel-Inlet Vacuum

The fuel-injector resistance test specifies coil resistance of 2 to 3 Ω at 72°F (22°C), with circuit checks tied to the appropriate EMM connector locations.

Fuel-supply testing specifies a maximum inlet vacuum of 4 in. Hg (13.5 kPa) at the fuel lift pump from idle through wide-open throttle. Higher vacuum indicates excessive restriction in the fuel supply.
