BMW R60/6, R75/6, R90/6 & R90S Service Manual (1973–1976)
187 Pages • ZIP Download: Printable PDF • 51.36 MB
BMW Models Covered & Key Technical Specifications
Models: R60/6, R75/6, R90/6, R90S
Sub-models / Variants: 5-speed gearbox, 2-cylinder horizontally opposed engine, 2-cylinder opposing engine
Trade Names: Boxer, R-series
Model Years: 1973–1976 (1973, 1974, 1975, 1976)
-
Engine configuration: 2-cylinder 4-stroke horizontally opposed
-
Engine displacement: 599 cc (R60/6), 745 cc (R75/6), 898 cc (R90/6 and R90S)
-
Compression ratio: 9.2:1 (R60/6), 9.0:1 (R75/6, R90/6), 9.5:1 (R90S)
-
Maximum power output: 40 HP–67 HP (DIN)
-
Fuel capacity: 18 liters (R60/6, R75/6, R90/6), 24 liters (R90S)
-
Clutch type: Single plate dry type with diaphragm spring
-
Transmission: 5-speed with hooked lever shift
BMW Manual Features & Selected Content Preview

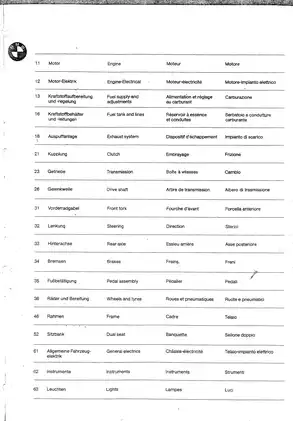

Covering the BMW R 60/6, R 75/6, R 90/6, and R 90 S, this English-language factory workshop manual from BMW Customer Service is organized by numbered repair groups and job codes.
Printable PDF, Search, and Diagram Detail
Search and wiring detail: PDF text search and embedded bookmarks are unavailable. Wiring color codes require zooming, and some small terminal markings remain faint or indistinct even when enlarged.
The ZIP contains one printable PDF with 187 pages, including four repeated technical-data sheets and one annotated cylinder-head tightening-sequence sheet.
Boxer Engine, Drivetrain, and Chassis Work
These are selected examples of the manual's workshop coverage. Further sections include air-filter replacement and exhaust-system and silencer removal.
-
Boxer engine repair: Compression testing, engine removal and installation, cylinder boring and honing, cylinder-head and valve work, crankshaft service, and piston and connecting-rod inspection.
-
Carburetor adjustment: Model-specific Bing slide, Bing constant-depression, and Dell'Orto accelerator-pump carburetors, with fuel-level adjustment, cleaning, mixture setting, and synchronization procedures.
-
Engine electrical systems: Bosch ignition timing, points and centrifugal-advance service, alternator and regulator testing, starter overhaul, and electrical fault isolation.
-
Clutch and gearbox: Clutch inspection and centering, gearbox removal and sealing, gear-train and selector service, shaft end-float shimming, and kick-starter work.
-
Shaft and final drive: Driveshaft removal, rear-drive teardown, matched crown-wheel and pinion replacement, gear setup, swingarm alignment, and bearing service.
-
Chassis, brakes, and wheels: Telescopic-fork rebuilding, steering adjustment, spring-strut service, drum and disc brakes, bleeding, wheel lacing, static balancing, and wheel-bearing setup.
-
Workshop reference data: Component-specific torque tables, metric and inch dimensions, capacities, wear limits, bearing and shim selections, electrical test values, and illustrated special-tool use.
BMW wrote this manual for master mechanics and fitters whose practical and theoretical Service School training is supplemented by the publication; its overhaul and measurement work assumes professional workshop experience and equipment.
Engine Measurement and Internal Repair

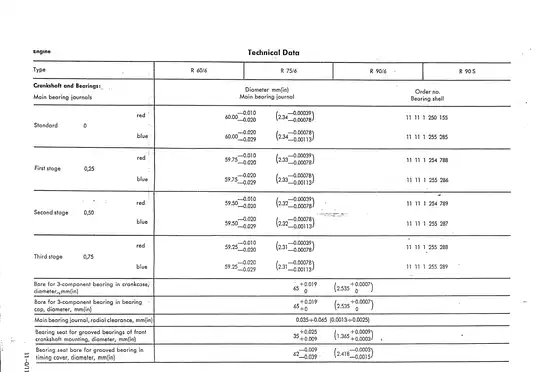

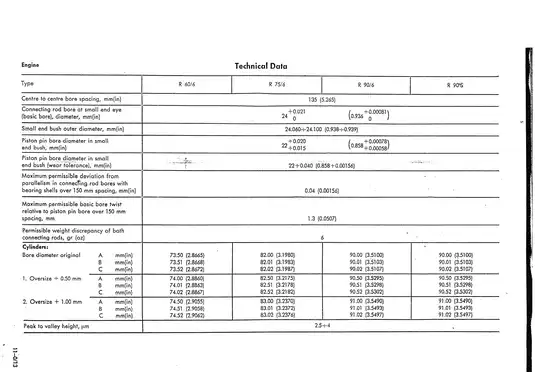

Model-specific tables cover color-coded bearing shells, crankshaft and connecting-rod clearances, piston and cylinder grades, ring data, valve timing, lubrication, and oil-pump inspection. Cylinder regrinding is limited to two oversize stages.
Step-by-step procedures cover main-bearing bush replacement and crankshaft endplay selection. Cylinder-head work includes removal with the BMW thrust bridge, valve-seat and guide renewal, while piston instructions address orientation and weight matching. Flywheel runout checks are also included.
Timing-chain removal notes warn that chain links can damage the sprocket rivet studs. Flywheel installation notes specify dry fastening bolts and oil-free mating surfaces.
Model-Specific Carburetor Setup
The R 60/6 uses inclined Bing slide carburetors, the R 75/6 and R 90/6 use Bing constant-depression units, and the R 90 S uses Dell'Orto PHM slide carburetors with accelerator pumps.
Jetting and needle tables accompany the adjustment procedures. Separate instructions address choke-chamber handling and off-idle synchronization, helping match the setup procedure to the fitted carburetor design.
Ignition, Charging, and Starter Diagnosis
Ignition coverage distinguishes static test-lamp checks from stroboscopic timing checks. Charging-system sections cover the diode carrier, rotor, stator, and regulator rather than treating the alternator as a single replacement assembly.
Starter work extends from in-place testing to dismantling, brush replacement, commutator inspection, field-coil checks, and armature work. Separate alternator and starter fault-finding charts connect symptoms with possible causes and corrective work, supporting diagnosis before component replacement.
Chassis electrical sections cover the battery, relays, combination instrument, instrument drive cables, headlamp alignment, lamps, and turn signals.
Gearbox and Final-Drive Setup
The gearbox chapter provides internal ratios and shim-adjusted axial-float data for all three shafts. Detailed work includes the output flange, housing cover, selector forks, selector bracket and discs, and neutral switch.
Gearbox cautions explain selector-fork orientation to prevent jamming and identify how clutch-pushrod felt rings and seal lips can be damaged during assembly.
Rear-drive instructions distinguish model-specific final-drive ratios and explain pinion depth, tooth backlash, contact-pattern checking, and crown-wheel lateral-play shimming. The crown wheel and pinion must remain a matched pair.
Suspension, Brakes, and Wheel Repair
Fork inspection includes tube straightness, parallelism, and alignment checks, with damper disassembly and seal-protection details. Steering-bearing adjustment and hydraulic steering-damper service are also covered.
Front-brake information separates the R 60/6 duplex drum arrangement from the hydraulic disc systems and the R 90 S twin-disc setup. Disc-brake procedures address the floating caliper, pad alignment, under-tank master cylinder, and hand-brake adjustment.
Wheel work includes rim-to-hub positioning, runout checks, spoke replacement, and tapered-roller bearing preload. The frame data identifies the double-loop chassis as unsuitable for sidecars.
Special Tools, Illustrations, and Workshop Scope
Illustrated tool callouts include the BMW No. 6000 stand with No. 6005/1 jig, No. 205 main-bearing arbor, No. 529/1 clutch centering arbor, No. 548 fork straightedges, and No. 550 spring-strut compression tool.
Reference illustrations include the compression-indicator graph, alternator and starter fault charts, crown-wheel/pinion contact-pattern views, and the chassis wiring diagram with cable-color and connector key.

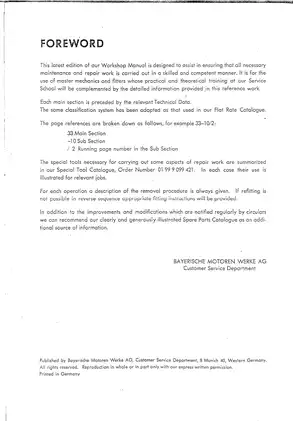

This is the workshop repair publication. The foreword refers to separate Special Tool and Spare Parts catalogues; tools are illustrated within the relevant jobs, but those complete catalogues are separate publications.
Support the motorcycle securely for engine, transmission, wheel, or suspension repair, disconnect the battery where directed, and keep hydraulic brake fluid away from painted surfaces.
A Preview of Valve and Crankshaft Clearances
For all four models, the valve-clearance table specifies 0.15 mm intake and 0.20 mm exhaust with the engine cold, at a maximum engine temperature of 35°C. These settings accompany the valve-adjustment coverage.

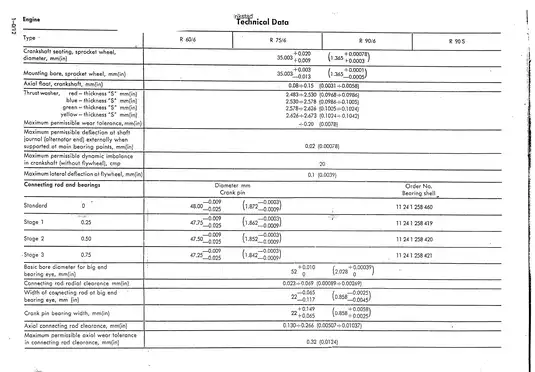

The crankshaft table gives an axial-float specification of 0.08–0.15 mm, alongside color-coded thrust-washer thickness ranges used in endplay selection.
