Case/International 5120 5130 5140 Tractor 1991–1998 Shop Manual (P/N 5120–5140)

• Covers the 1991–1998 Case International 5120, 5130, and 5140 tractors, documenting service for both 4-cylinder and 6-cylinder diesel configurations
• Official OEM publication (form number 5120–5140) spanning 134 pages

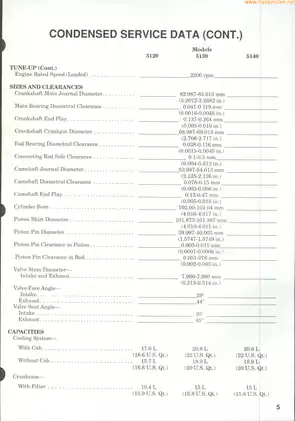

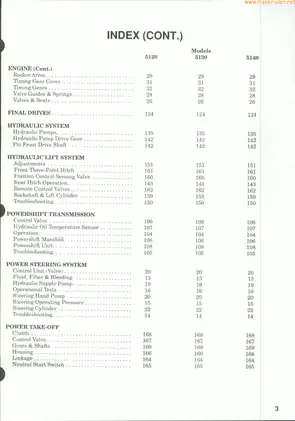

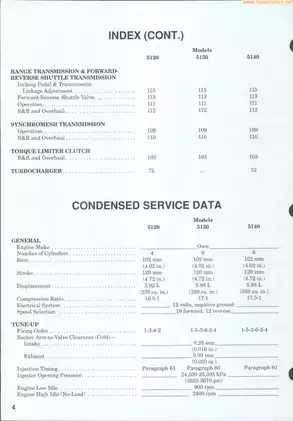

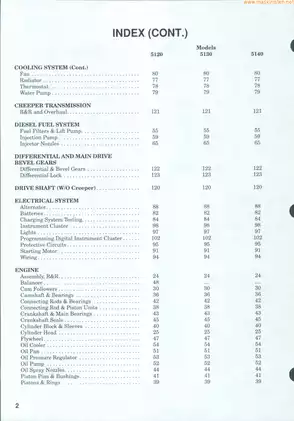

• Contains 159 detailed diagrams alongside 85 pages of technical specifications, torque values, and service limits
• The definitive reference material for professional engine, powertrain, and hydraulic repair planning
• Specific assemblies covered: Front-wheel drive (MFWD) axle, Creeper transmission, Danfoss power steering unit, Power Take-Off (PTO) clutch, Draft and position control
• Further system coverage: Diesel injection pump, Turbocharger, Aftercooler, Instrument cluster, Hydraulic rockshaft cylinder

Manual Content Overview

You get unfiltered access to factory-level data in this PDF manual for complete tractor maintenance. It provides the detailed step-by-step instructions needed to split the tractor between the speed and range transmissions—a highly labor-intensive job that usually requires an expensive trip to the dealership. The content breaks down engine assembly procedures logically. This includes crankshaft and main bearing clearances, valve train specifications, and timing gear configurations for naturally aspirated and turbocharged models. Extensive sections detail the complete overhaul of the Powershift, Creeper, and Synchromesh transmissions. You will find specific testing parameters for clutch slip, manifold operation, and drop shaft bearing adjustments.

The documentation thoroughly maps out the hydraulic lift system. It pinpoints exact pressure settings for remote control valves and outlines hydraulic pump troubleshooting. For electrical work, you will find complete wiring diagrams, alongside electrical system schematics and diagnostic charts for hydraulic oil temperatures. Electrical sections also cover alternator charging outputs, starting motor bench testing, and digital instrument cluster programming. Final drive overhauls—from rebuilding the planetary hubs to wet brake system bleeding—are heavily detailed. Complex mechanical rebuilds are clarified through exploded views of steering knuckles, cross-sectional views of the Powershift transmission, and precise component location drawings.

When dealing with these specific Case IH models, technicians often encounter strict assembly tolerances. For example, a common mechanical trap is misaligning the timing letters on the Robert Bosch or CAV injection pump drive gear, which immediately causes severe performance issues. Furthermore, failing to calculate the exact shim pack thickness for the Powershift drop shaft bearing covers frequently leads to premature transmission failure.

Specification Highlights

Hard numbers drive accurate service. This documentation highlights crucial technical data to keep your shop running smoothly. For instance, cylinder head bolt torque values are laid out in a strict multi-stage sequence, requiring a final-stage angle of 90° for 6-cylinder engines. The tune-up data table lists the intake valve clearance at 0.25 mm (0.010 in.) for the entire 1991–1998 lineup. Moving to the axles, the front wheel hub nut torque is set at 300 Nm (220 ft.-lbs.).

Having these factory-specific shim formulas and multi-stage torque sequences right at your workbench prevents costly re-work and ensures your drivetrain repairs meet exact OEM tolerances. Accurate data is the foundation of any successful repair. Always prioritize shop safety, carefully block the tractor when splitting the housings, and completely relieve all system pressure before opening hydraulic lines to prevent high-pressure fluid injuries.
