2007 Johnson 4 HP, 5 HP, 6 HP 4-Stroke Outboard Motor Service Manual (P/N 5007214)

• Covers 2007 Johnson 4 HP, 5 HP, and 6 HP 4-stroke outboard motor configurations, including both short and long shaft variants
• Official BRP OEM publication (P/N 5007214 © 2006), spanning 185 pages of detailed technical data
• Contains 42 technical tool reference diagrams and 19 electrical and system wiring schematics
• Provides definitive service and assembly workflows for the Johnson 4-stroke single-cylinder 138cc powerhead and associated gearcase mechanics
• Features comprehensive torque-specification tables for critical engine and drive system fasteners
• Outlines complete teardown and assembly procedures for the midsection, lower unit, water pump, tiller handle, swivel bracket, clamp bracket, and neutral start interlock
• Covers inspection and service protocols for the Keihin carburetor, fuel pump, thermostat, shift rod, propeller shaft, and trochoid oil pump

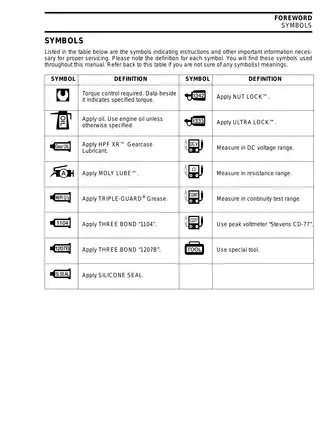

Technical Documentation and Coverage

Delivered as a comprehensive PDF, the 2007 Johnson 4-stroke service manual details system-level maintenance and teardown procedures for the powerhead, fuel system, and ignition modules. This reference accelerates daily shop operations by providing exact factory baselines for verifying component wear limits directly at the workbench, effectively preventing costly trial-and-error mistakes. Mechanics will find clear visual breakdowns for adjusting valve clearances under cold-engine conditions. It also outlines the correct process for setting idle speeds via the carburetor adjustment screw. Having access to step-by-step instructions for tasks that typically require an expensive trip to the marine dealership—such as water pump impeller replacement, carburetor overhauls, and lower unit gear shimming—allows mechanics to confidently complete the repair themselves. Dedicated troubleshooting workflows streamline the process to isolate component faults efficiently. Beyond basic tuning, the documentation covers the exact disassembly sequence for the recoil starter and internal clutch mechanics. Readers get a thorough look at the complete removal process for the powerhead from the driveshaft housing. Please note that servicing marine powerheads involves inherent risks. Always verify procedures against factory safety standards before turning a wrench, and consider consulting a certified marine technician if you lack specialized diagnostic tools.

Specifications and Maintenance Data

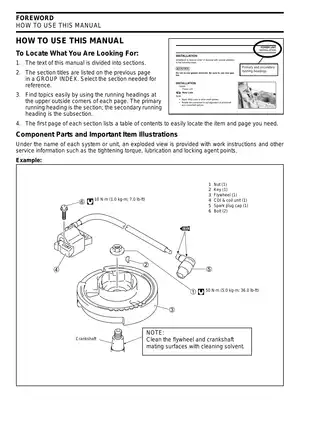

Expect precision tolerance charts detailing cylinder bore, piston ring gaps, and camshaft journal clearances. To further assist the workflow and ensure precise assembly, the text is supported by exploded views, a periodic maintenance chart, an ignition signal chart, an engine oil lubrication chart, optimal tooth contact pattern drawings, and a propeller selection chart. The guide highlights required torque values for critical fasteners throughout the engine block. For example, it specifies 50 Nm (36.0 lb-ft) for the flywheel nut and 28 Nm (20.5 lb-ft) for the cylinder head bolts. Diagnostics are straightforward with listed baseline metrics, which are invaluable during major engine repairs. Cylinder compression is documented at 550–650 kPa (78–92 psi) while the decompression system is active. In the primary specification table, intake valve clearance sits at a tight 0.03–0.07 mm. Electrical testing is supported by hard numbers, noting an ignition secondary coil resistance of 8.2–12.4 kΩ. Finally, fuel tank capacity for the built-in system is confirmed at 1.5 liters within the fuel delivery section.
