Suzuki Samurai SJ 410 Service Manual, 1987 Edition (P/N 99500-83310-33E)

This Suzuki Samurai factory service manual, P/N 99500-83310-33E, is the first edition of November 1987. It covers carbureted convertible and hardtop vehicles, including U.S. and Canadian specification differences, from the body-number starts listed in the model box.

PDF Search, Diagram Detail, and Page Count

Search and diagram navigation: Text search works through much of the manual, but several tables and the appended wiring diagrams are not searchable. There are no embedded PDF bookmarks. Small wire-color codes and switch-terminal labels require zooming.

Service-data display: Some labels and entries are missing from the table on PDF p. 474. PDF pp. 478–479 have reader-dependent display problems and may require a different PDF viewer.

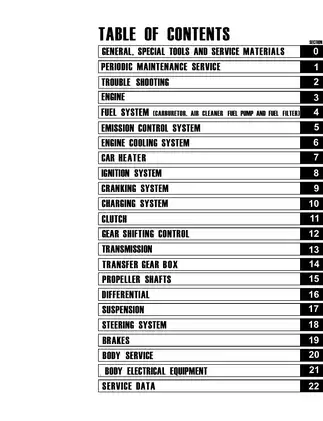

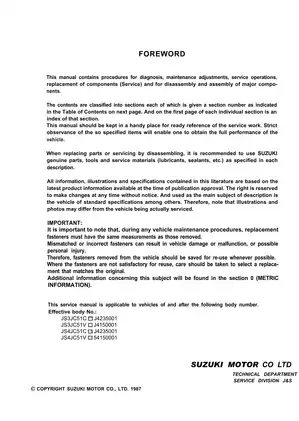

Supplied as one printable, English-language 482-page PDF. This total includes the cover, foreword, contents and publication page, two appended wiring-diagram sheets, and two duplicate pages.

Engine Overhaul, 4WD Service, and Electrical Diagnosis

The following selected repair topics outline the manual’s coverage rather than reproduce its complete contents. Additional subjects include severe-service maintenance schedules and exhaust-system inspection.

• Engine repair: Removal and installation, complete disassembly and reassembly, cylinder-head and valve-train service, timing-belt work, internal inspection, lubrication checks, and final adjustments.

• Fuel and emissions: Hitachi carburetor overhaul and adjustment, fuel-pump and line service, and diagnosis of PCV, TCAC, evaporative, EGR, fuel-cut, and ECM feedback systems.

• Drivetrain repair: Clutch and shift-control service, transmission teardown, transfer-case overhaul, propeller-shaft repair, and differential preload, backlash, and tooth-contact adjustment.

• Suspension and steering: Front and rear leaf-spring suspension, axle assemblies, wheel bearings, Barfield joints, optional free-wheeling hubs, steering-gear repair, alignment, and accident-damage checks.

• Brake service: Front disc and rear drum repair, master-cylinder and booster overhaul, parking-brake service, hydraulic bleeding, and operational checks.

• Electrical diagnosis: Starter and alternator testing and overhaul, ignition checks, heater circuits, body-electrical troubleshooting, and wiring-harness routing.

• Body and wiring references: Door and windshield service, hardtop rear-door procedures, chassis dimensions, and separate U.S. and Canadian wiring diagrams.

With full component teardown, precision-measuring checks, and factory special-tool callouts, this manual is best suited to experienced mechanics and well-equipped DIY owners.

Engine Inspection and Cooling-System Service

The engine chapter distinguishes work that can be done in the vehicle from procedures requiring engine removal. Internal inspection covers valve seats and guides, camshaft condition, cylinder wear, pistons and rings, crankshaft measurements, and bearing selection.

Step-by-step procedures address engine disassembly and reassembly, including timing-belt installation. Component-specific torque tables, clearances, wear limits, oil-pressure tests, and vacuum checks support the work.

Cooling-system coverage includes thermostat testing, radiator inspection and flushing, fan-clutch checks, and water-pump replacement. The water pump is replaced as an assembly rather than internally overhauled.

Carburetor Repair and Emission Fault Finding

The Hitachi two-barrel downdraft carburetor section includes an exploded view and cross-section, choke and float-system service, fuel-level inspection, accelerator-pump checks, and idle adjustment.

Emission diagnosis distinguishes U.S. and Canadian controls. It covers the oxygen sensor, ECM, mixture-control solenoid, thermal and throttle switches, mileage/check switches, and CHECK ENGINE circuit. The system-check flowchart connects warning-light behavior with component and circuit checks, helping separate feedback-system faults from carburetor adjustment problems.

The carburetor chapter identifies factory-adjusted mixture-control parts that must not be casually altered; it also explains how drills or wire can damage metering passages. The oxygen-sensor section warns that applied voltage or a directly connected ohmmeter can damage the sensor.

Transmission, Transfer Case, and Differential Setup

Transmission inspection extends to gears, shafts, bearings, synchronizer hubs, sleeves, keys, rings, and fork clearances. The clutch coverage includes the dry single-disc assembly, release mechanism, cable adjustment, and wear inspection.

Transfer-drive flow diagrams distinguish rear-wheel drive, 4WD High, and 4WD Low. Overhaul material includes shaft-clearance measurement and shim selection, alongside service that can be performed without removing the case.

Differential procedures cover pinion location, bearing preload, bevel-gear backlash, and tooth-contact patterns. These checks address how the gear set is positioned and loaded during reassembly.

Chassis, Body, and Workshop References

Steering coverage includes column inspection after accident damage and steering-box setup. Brake procedures extend beyond friction parts to booster operation and air-tightness tests, hydraulic-circuit diagnosis, and road checks.

Body service addresses window regulators, door locks, windshield bonding, and the hardtop rear door. Chassis-dimension drawings support body measurements.

Illustrations include the emission-system check flowchart, transfer-drive flow diagrams, and engine-room and instrument-panel harness-routing views. The appended wiring sheets cover both U.S. and Canadian vehicles.

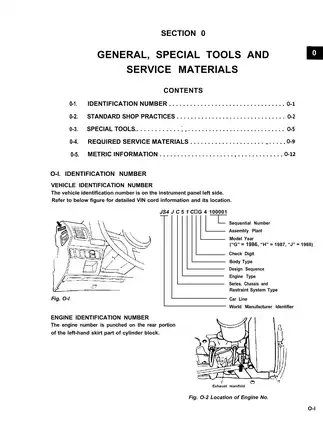

The special-tool catalog identifies valve lifter 09916-14510, clutch center guide 09923-38220, differential bearing-preload checking tool 09922-75221, and brake-booster overhaul set 09950-88210. Service-data tables collect capacities, tightening torques, electrical specifications, adjustment data, and inspection limits.

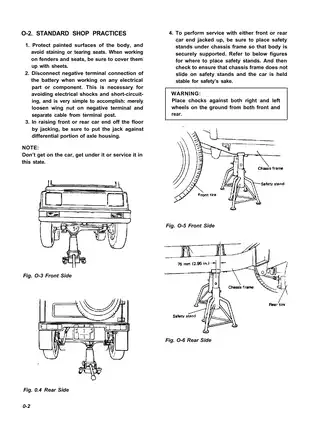

For chassis or electrical repair, use the specified support points and battery-isolation precautions. The brake chapter also addresses asbestos-containing friction materials and dust-control methods.

A Preview of Lubrication, Ignition, and Clutch Inspection Data

The engine oil-pressure test specifies 3.0–4.2 kg/cm² at 3,000 rpm with the engine at normal operating temperature. Distributor diagnosis includes a pickup-coil resistance specification of 130–190 ohms.

Clutch-facing inspection measures the depth from the lining surface to the rivet head. The manual lists 1.2 mm as standard and 0.5 mm as the service limit, providing a defined wear criterion for the clutch disc.
