Suzuki VL800 Volusia 2005 Service Manual Set (P/N 99501-38080-01E)
296 Pages • ZIP Download: 2 Printable PDFs • 45.16 MB
Suzuki Models Covered & Key Technical Specifications

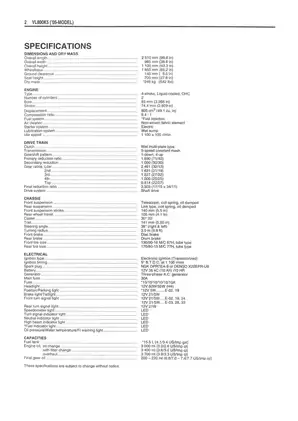

Model & Model Code: VL800 Volusia (VL800K5)
Sub-models / Variants: E-02, E-19, E-24, E-03, E-28, E-33, 000 (Japan)
Model Year: 2005
Serial Numbers: E-02 (U.K.) JS1BM111200101117-, E-19 (EU) JS1BM111100112285-, E-24 (Australia) JS1BM121300100613-, E-03 (U.S. except California) / E-28 (Canada) / E-33 (California) JS1VS55A 52100001-
-
Engine displacement: 805 cc
-
Engine configuration: 4-stroke, V2, liquid-cooled, OHC
-
Transmission: 5-speed constant mesh, wet multi-plate clutch
-
Fuel system: Electronic fuel injection
-
Idle speed: 1100 ± 100 r/min
-
Fuel tank capacity: 15.5 L
-
Fuel pressure: 300 kPa (43 psi)
Suzuki Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Suzuki VL800K5 Supplementary Service Manual (2005, P/N 99501-38080-01E) | 141 |
| Suzuki VL800K1 Service Manual (2001 base edition, P/N 99500-38040-01E) | 155 |
The K5 supplement covers changes from the 2004 VL800K4, including fuel injection diagnosis and revised service procedures. It refers back to the K1 manual for individual tasks such as body panel removal and ignition checks.
Suzuki specifies base manual edition 99500-38043-01E as the companion to the K5 supplement. The included K1 edition covers the earlier carbureted model through Section 9, Servicing Information. The separately indexed Section 10, Emission Control Information, is outside the coverage of the included K1 PDF.
Linked Contents and Wiring Diagram Detail

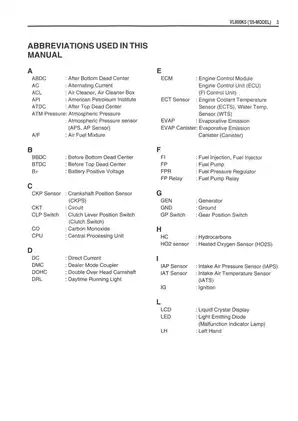

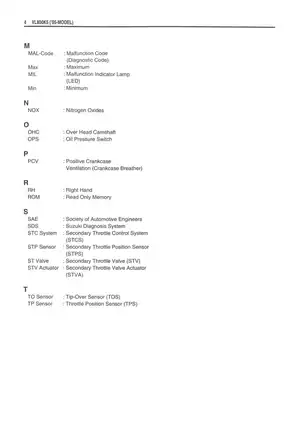

PDF search and navigation: Neither PDF supports text search. The K5 supplement has one bookmark that opens its linked contents page. The K1 base manual has no bookmarks. Zoom in for the K5 wire codes and ECM pin labels. Some small wire codes in the K1 diagrams remain faint at higher zoom.
The ZIP contains two printable PDFs totaling 296 PDF pages, including the K1 front matter and three repeated scans, plus the K5 cover and two unnumbered wiring diagrams. Most K1 PDF pages show two printed pages side by side.
K5 Injection Diagnostics and K1 Mechanical Service
This selection of service topics highlights the main repair and diagnostic work. The manuals also include K1 compression and oil pressure checks and a K5 cross-reference between SAE terms and earlier Suzuki terminology.

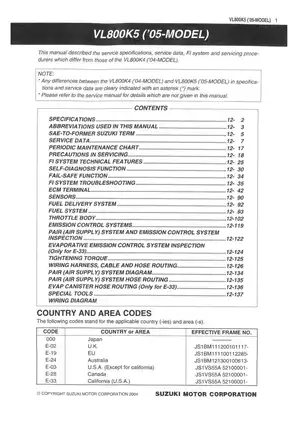

- K5 model identification: Country codes and effective frame numbers distinguish the Japanese, U.K., EU, Australian, U.S., Canadian, and California versions.
- Fuel injection diagnostics: Dealer mode, self-diagnosis and fail-safe tables, Suzuki Diagnosis System (SDS) fault data, and ECM circuit checks.
- Fuel delivery and throttle bodies: Fuel pressure and pump output tests, injector inspection, throttle body removal and cleaning, fast idle adjustment, and throttle valve synchronization.
- K1 engine and shaft drive: Engine removal and overhaul, clutch and transmission service, and secondary and final bevel gear setup.
- K1 chassis and electrical: Wheel, brake, fork, steering, and rear suspension service, plus charging, starting, and ignition tests.
- Market-specific wiring: Full vehicle wiring diagrams for the listed market groups, a K5 injection schematic and ECM terminal map, and harness, cable, and hose routing.
Suzuki wrote the base manual for people with motorcycle service knowledge and skills and access to the tools specified in the procedures.
K5 Fault Codes and Circuit Tests
The FI section explains how the ECM uses intake air pressure, engine speed, throttle opening, and sensor inputs to calculate injection timing. Fault pages pair detected conditions and possible causes with connector, continuity, resistance, voltage, and ground checks.
Coverage includes CKP (C12), front and rear IAP (C13/C17), TP (C14), ECT (C15), IAT (C21), tip-over (C23), secondary throttle actuator and position (C28/C29), gear position (C31), rear and front injectors (C32/C33), fuel pump relay (C41), PAIR solenoid (C49), and heated oxygen sensor circuits for E-02, E-19, and E-24 (C44). The injector fault pages help distinguish an injector fault from a wiring problem by pairing terminal tests with an ECM circuit diagram. SDS procedures cover stored fault data and active tests of the secondary throttle actuator and PAIR solenoid.
Fuel Delivery, Throttle Bodies, and Emissions
Fuel system procedures cover tank removal, pump and relay testing, pump disassembly, mesh filter inspection, and reassembly. The throttle body section covers injector service, STP and TP sensor settings, and synchronization using a digital vacuum tester or vacuum balancer. The service data identifies throttle body 41F1 for E-33 and 41F0 for the other versions.
Reusing the fuel pump bushing or O-ring can cause a leak. Losing the original position of the secondary throttle position sensor can affect its adjustment after reassembly. Suzuki warns of fire and explosion during gasoline service and of electrical damage from ignition-on ECM disconnection, reversed battery polarity, and forcing probes into connectors.
The supplement explains crankcase ventilation, the three-way catalyst, and noise control. It also covers PAIR reed valve and solenoid inspection and E-33 evaporative emissions inspection.
K1 Overhaul, Shaft Drive, and Chassis
The engine section covers cylinder heads, camshafts and cam chains, pistons, connecting rods, the crankshaft and crankcase, the clutch, oil pump, starter clutch, transmission, and shift forks. Shaft drive procedures cover secondary and final bevel gear inspection, backlash and shim adjustment, and tooth contact checks.
The base manual also covers carburetor service, radiator and water pump work, front hydraulic and rear drum brakes, and speedometer, switch, and battery checks. Its starting-system section includes side stand and ignition interlock diagnosis.
Wiring, Routing, and Workshop Tools
The K5 has wiring diagrams for E-02/E-19/E-24 and E-03/E-28/E-33. The K1 separates E-24 into its own diagram. Routing drawings cover the harness, throttle cables, cooling hoses, speed sensor lead, fuel tank, PAIR hoses, and E-33 EVAP hoses.
K5 tool references include the SDS set 09904-41010, mode select switch 09930-82720, needle-pointed probes 09900-25009, vacuum balancer 09913-13121, and fuel pressure gauge adapter and hose 09940-40211 / 09940-40220. The K1 adds tools for compression, oil pressure, backlash, bearings, steering, and fork service.
Sample K5 Fuel Pump and Injector Test Values
The K5 fuel pump output test calls for at least 168 mL in 10 seconds at 12 V with a fully charged battery. The service data lists injector resistance at 11–13 Ω at 20 °C (68 °F), measured across the injector terminals.
