2003 Bombardier Outlander 400 & 400 XT ATV Shop Manual - PDF
Technical reference for Bombardier Outlander 400 and 400 XT ATVs from 2003. Explains component service, diagnostics, and maintenance. PN 7535

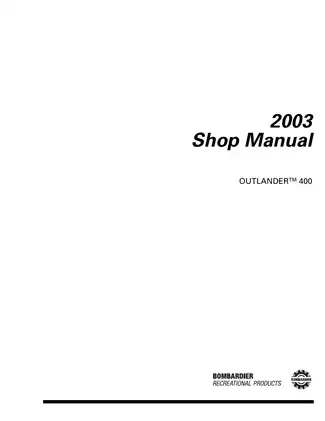

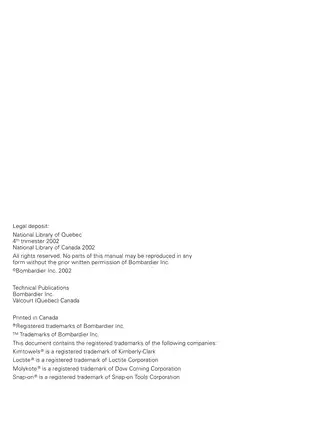

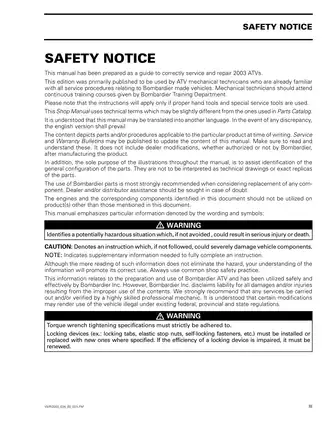

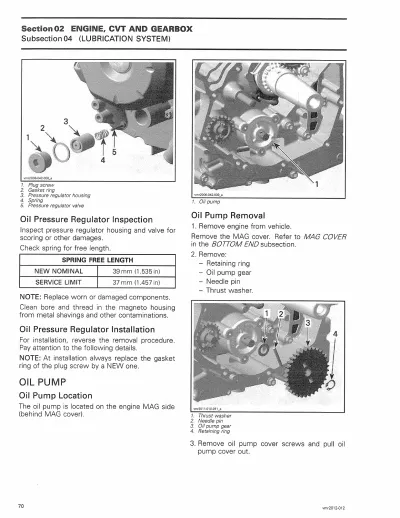

Manual Preview
Sample pages from the 2003 Bombardier Outlander 400 & 400 XT ATV Shop Manual - PDF manual
Purchase & Download
Models Covered & Key Technical Specifications
2003 Bombardier Outlander 400 & 400 XT ATV Shop Manual
Technical reference for Bombardier Outlander 400 and 400 XT ATVs from 2003. Explains component service, diagnostics, and maintenance. PN 7535 | Series Outlander Set
- System Spacing Data: 25.4 mm establishes the minimum clearance for the service limit.
- Specific Dimensional Tolerance: For proper component fit, 0.038 mm defines the maximum taper in diameter.
- Published Maximum Capacity: 32.00 mm signifies the maximum drive belt width.
- Authorized Technical Requirements: The starter drive pinion requires 19.996 mm for minimum operation.
- Measured Generation Capacity: 0.20 mm controls the ring end gap specification.
- Technical Output Quality: The crankshaft locking bolt governs the 37.760 mm alignment.
Professional Workshop Service Manual & Technical Specifications
Practical Maintenance Technical Manual: ATV Bombardier Service Manual: Outlander 400 & 400 XT ATV, PDF (2003) Transmission-Guide
Calibration-Scope: 2003 Bombardier Outlander 400 & 400 XT ATV Shop Manual | Engine-Type: ATV / Air-Cooled | Reference-Category: Service Manuals.

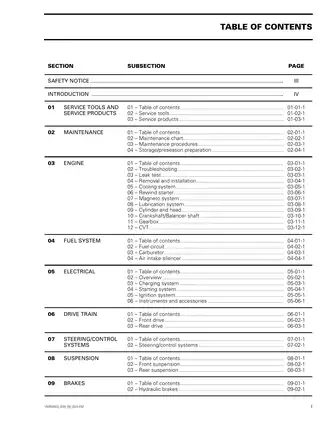

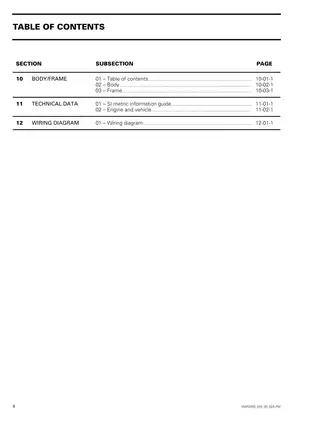

- Contents Overview:
- Systems and Component Identification
- Diagnostic Procedures
- Maintenance Schedules
- Exploded Views and Part Numbers
- Special Tools and Service Products
- Torque Specifications
| Identifier | Rating | Context |
|---|---|---|
| Model Compatibility | All Outlander 400 Models | Covers 2003 variants |
| Documentation Type | Shop Manual | For professional and DIY repair |
| File Format | Instant digital access | |
| Part Number Reference | PN 7535 | For Outlander 400 models |
The documentation is partitioned into 12 major sections, covering everything from basic maintenance and troubleshooting to in-depth engine, drive train, and electrical system repairs. This manual provides clear, step-by-step instructions for disassembly and reassembly, ensuring that all procedures are performed correctly and efficiently.
This manual details the procedures for inspecting, adjusting, and replacing components across all major vehicle systems, including the engine, fuel system, electrical system, drive train, suspension, steering, and braking systems. Specific sections address the CVT, magneto system, lubrication, cooling, and rewind starter systems with comprehensive guides for maintenance and repair.
Detailed Component Overviews:
This section details the various systems of the Bombardier Outlander, offering specific procedures for tasks such as engine removal and installation, cylinder head and piston service, crankshaft and balancer shaft inspection, and gearbox and CVT maintenance. It includes critical specifications for clearances, torques, and wear limits for each component.
Special Procedures and Troubleshooting:
Guides for special procedures like handling a flipped-over ATV or one submerged in water are included. The troubleshooting section is extensive, addressing common issues with symptoms like high engine temperature, no spark, low oil pressure, or hard shifting, providing step-by-step diagnostic checks for each problem.
