2004 Bombardier Outlander 330-HO, 400-HO, MAX, MAX XT ATV Shop Manual (P/N 219 100 180)

Bombardier’s 2004 Outlander Shop Manual (P/N 219 100 180) covers the 330-HO, 400-HO, MAX, and MAX XT, including the listed 2x4, 4x4, XT, and International configurations. European Community models require the separate 2004 Outlander European Community Shop Manual Supplement, which is not included in this PDF.

Searchable Service Text and Section Bookmarks

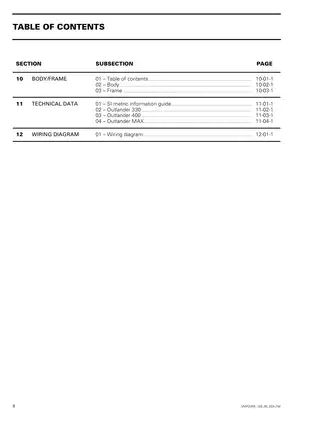

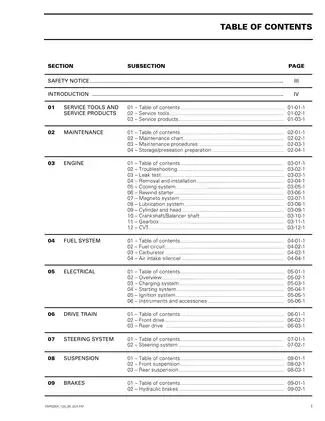

Search, navigation, and wiring detail: Service text is searchable, and embedded bookmarks link to the contents and all twelve main sections. Some illustration labels and the labels within the full-sheet wiring diagram are not searchable. Small wire-color codes, connector references, and terminal labels on that diagram are readable when enlarged.

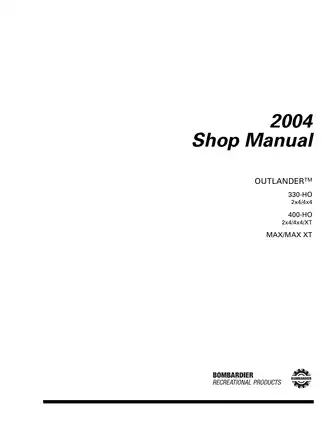

Supplied as one printable, English-language 371-page PDF, including the illustrated outer cover and internal title page.

Engine, CVT, and Chassis Service Coverage

The following selected coverage highlights outline the main workshop areas rather than reproduce the complete contents. Additional topics include rewind-starter service and storage/preseason preparation.

• Engine repair: Engine removal and installation, cylinder leak testing, cylinder-head service, valve adjustment, timing-chain work, and crankshaft/balancer-shaft inspection.

• Cooling and lubrication: Cooling-system leak testing, thermostat and temperature-switch checks, water-pump repair, engine oil-pressure testing, and oil-pump inspection.

• Fuel system: Fuel-system pressurization, vacuum-operated fuel-pump testing, carburetor cleaning and float adjustment, plus throttle- and choke-cable service.

• CVT and gearbox: Step-by-step belt replacement, drive- and driven-pulley disassembly, internal gearbox inspection, shaft shimming, and shifting-system adjustment.

• Final drives: Front and rear differential rebuilding, backlash and bearing-preload adjustment, drive-shaft boot replacement, and disconnect-unit service.

• Brakes and suspension: Hydraulic brake bleeding, master-cylinder and caliper service, McPherson strut disassembly, trailing-arm bearing replacement, and steering adjustment.

• Electrical diagnosis: Charging, starting, and CDI ignition tests, connector-pin identification, accessory-circuit checks, and the overall Outlander wiring diagram.

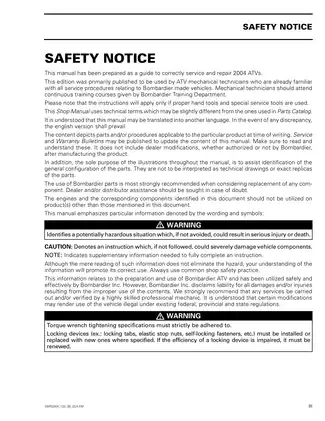

Written primarily for ATV mechanical technicians already familiar with Bombardier service procedures, this manual assumes access to proper hand tools and special service tools.

Engine and Cooling System Breakdown

The engine sections cover the lubrication circuit, oil pump, cylinder head, timing chain, crankshaft, and balancer shaft, with factory torque tables and component-clearance specifications. The cylinder-head procedures distinguish the 400 engine’s decompressor mechanism from the 330 engine, which does not use that system.

Cylinder leak-test guidance connects leakage locations with possible valve, piston-ring, and head-gasket faults. This gives the technician a way to narrow down an engine problem before selecting the corresponding repair procedure.

Exploded water-pump and lubrication-system views show component relationships and fastener callouts for bench work. Cooling coverage extends to radiator removal, pressure-cap testing, coolant replacement, and temperature-sender checks.

Crankcase assembly notes warn that Loctite Primer N and Loctite 5910 are chemically incompatible and can cause poor adhesion and a leaking joint.

CVT, Gearbox, and Differential Work

The CVT chapter identifies the drive pulley screw’s left-hand thread and warns that the balanced fixed half and ring gear require matched replacement to avoid damage. It also specifies that drive-pulley repairs must be performed by an authorized Bombardier ATV dealer.

Gearbox procedures cover shift forks, the shift drum, engagement components, shaft inspection, and shim selection. The manual identifies different high-range gearing for the 330 and 400 configurations.

For front differential rebuilding, the Backlash Shim Chart and Preload Shim Chart support the related measurement and adjustment procedures. Rear-hub instructions distinguish MAX/MAX XT assemblies from standard Outlander/XT assemblies.

The illustrated procedures and service-tool lists let a shop identify component access and required fixtures before starting engine or driveline work. Listed tools include the camshaft locking tool (P/N 529 035 926) and backlash measurement tool (P/N 529 035 665).

Electrical Testing, Brakes, and Suspension

Charging-system tests separate stator continuity and insulation checks from regulator/rectifier testing. Starting and ignition sections provide fault charts, switch tests, and CPS checks.

The Identification of Major Connector Pins views and overall Outlander wiring diagram connect the test instructions with terminal positions and wire-color references. Packard and Deutsch connector-service instructions address the connections used during electrical fault tracing.

Hydraulic brake coverage includes bleeding methods with and without a vacuum pump, plus master-cylinder and caliper inspection. Suspension procedures extend beyond strut removal to spring disassembly and trailing-arm bearing service.

A Preview of Oil-Pressure and Belt Inspection Data

Warm-engine oil pressure: With the recommended oil, the lubrication section lists minimum pressures of 70 kPa (10 PSI) at 1,300 RPM and 350 kPa (51 PSI) at 6,000 RPM. Nominal and maximum readings are also provided for comparison.

Drive-belt inspection: The CVT section specifies a new nominal belt width of 32.00 mm (1.260 in) and a service limit of 30.00 mm (1.181 in), alongside illustrated wear checks.

Please note that all service data provided in this description serves as a general preview. Always rely on the original OEM documentation and proper workshop safety protocols when performing actual maintenance.
