Bombardier Outlander 330/400/MAX ATV Service Manual Set – 2004 (P/N 219 100 180)
393 Pages • Printable PDF • 26.56 MB • Download
Bombardier Models Covered & Key Technical Specifications
Models: Outlander 330, Outlander 400, Outlander MAX
Models & Model Codes:
Outlander 330 — 330 HO 2x4 (7932, 7987, 7986); 330 HO 2x4 INTL (7969); 330 HO 4x4 (8101, 7931, 7985, 7930); 330 HO 4x4 INTL (7936)
Outlander 400 — 400 HO 2x4 (7984, 7966); 400 HO 4x4 (7978, 7929, 7928, 7964); 400 HO 4x4 INTL (7933, 7967); 400 HO XT 4x4 (7982, 7981, 7980, 7979, 7965); 400 HO XT 4x4 INTL (8137, 7968); European Community 400 HO 4x4 (8108, 8110), 400 HO XT 4x4 (8139, 8111)
Outlander MAX — MAX (7761, 7759); MAX INTL (7971); MAX XT (7990, 7989, 7970); MAX XT INTL (7974); European Community MAX (8130), MAX XT (8112)
Sub-models / Variants: 330 HO 2x4, 330 HO 4x4, 400 HO 2x4, 400 HO 4x4, 400 HO XT 4x4, MAX, MAX XT, INTL (International), European Community models
Model Year: 2004
-
Engine: Rotax 4-stroke single-cylinder
-
Transmission: CVT (Continuously Variable Transmission), dual range (HI-LO) with park, neutral and reverse; 2WD or selectable 2WD/4WD depending on model (European Community models: 4WD, with 2WD inactive)
-
Cooling: Liquid-cooled
-
Fuel Capacity: 16 L (4.2 US gal)
Bombardier Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 2004 Bombardier Outlander ATV Shop Manual, P/N 219 100 180 — 330 H.O., 400 H.O./XT and MAX/MAX XT; North American, International and European Community variants | 369 |
| 2004 Outlander Shop Manual Supplement — European Community 400/400 XT and MAX/MAX XT | 23 |
The EC supplement must be used with the base shop manual. Its changes apply to the European Community models identified in the coverage box above.

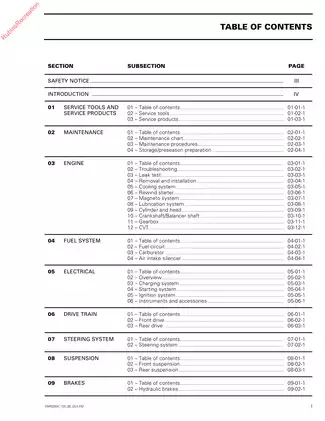

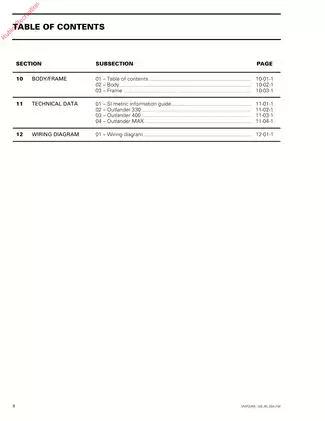

PDF Search, Bookmarks and Wiring Detail
Text access and diagram detail: Service text is searchable, but some illustration text and wiring labels are not. Embedded bookmarks organize both publications by major section. Small wiring labels need zooming; the EC wiring sheet is sideways and benefits from rotating the view. The separate Safety Notice page listed in each contents table is absent; procedure-specific warnings remain throughout.
One printable, English-language, 393-page PDF contains both publications and one additional cover page, already included in the total.
Engine, CVT and Chassis Service Coverage
These are selected service topics, rather than a complete contents list. Other subjects include storage/preseason preparation and seat-cover replacement.
-
Engine repair: Cylinder leak-down testing, top-end disassembly, valve adjustment, camshaft timing and crankshaft/balancer service.
-
CVT and gearbox: Drive-belt replacement, pulley and one-way clutch inspection, gearbox teardown and shifting-system diagnosis.
-
Front and rear drive: Wheel hubs, CV joints and boots, propeller-shaft U-joints, differential overhaul, disconnect-unit testing and backlash adjustment.
-
Fuel system: Fuel-system pressure testing, tank and strainer service, fuel-valve replacement, Mikuni pump testing and BSR33 carburetor adjustment.
-
Cooling system: Leak testing, coolant replacement and bleeding, thermostat checks, water-pump repair, radiator removal and fan diagnosis.
-
Electrical troubleshooting: Charging, starting and CDI ignition tests, battery load testing, connector identification and base/EC wiring diagrams.
-
Steering, suspension and brakes: Steering-column and wheel-bearing service, toe adjustment, strut and trailing-arm repair, master-cylinder/caliper overhaul and brake bleeding.
Suited to mechanics with engine-rebuild experience and the required measuring tools; the manual specifically reserves drive-pulley repairs for authorized Bombardier ATV dealers.
Engine Repair and Fault Isolation
Whether you are rebuilding the top end, diagnosing a no-start condition, or setting up the front differential, the manual’s 12-section layout provides model-specific factory procedures. The leak-down interpretation chart helps distinguish valve leakage from head-gasket or piston-ring problems before teardown.
The 330 uses a 325 cc Bombardier-Rotax single-cylinder, four-valve OHC engine with an 82 mm bore and no decompressor. The 400 and MAX use the 400 cc version with a 91 mm bore and an automatic decompressor. All share a 61.5 mm stroke and nominal 10.3:1 compression ratio.
Step-by-step instructions cover cylinder-head, cylinder and piston removal with the engine still in the frame; gearbox removal requires the engine out. Internal inspection includes wear limits, crankshaft/balancer alignment and bevel-gear shim calculations. The 330 and 400 gearboxes differ in their high-range gear ratio.
Magneto and lubrication: Repair sections address the magneto housing, rotor, stator, oil pump, strainer and pressure regulator, with an engine-oil pressure test. Magneto exploded views and the lubrication-system layout identify related parts.
The camshaft instructions warn that removing its retaining screw without proper locking can stretch the timing chain.
Cooling, Fuel and EC Changes
Cooling-system exploded views accompany the repair procedures. The water-pump instructions flag the risk of fracturing the ceramic rotary seal or damaging its bore through improper removal or hammer installation.
Carburetor and fuel supply: BSR33 coverage includes disassembly, cleaning, float-level checks and idle/pilot adjustment. Fuel-valve and vacuum-operated Mikuni pump coverage addresses testing, removal and replacement, alongside control-cable and air-intake silencer service.
EC differences: The supplement specifies six drive-pulley centrifugal levers instead of four and an O-0 needle jet: Bombardier P/N 404 162 055; Mikuni P/N 785-401003-O-0. Its models have 2WD disabled through the unplugged disconnect-unit actuator connector. Separate sections cover position lamps, turn signals, hazards, horn, mirrors and the associated wiring.
CVT Diagnosis and Differential Setup
Troubleshooting charts connect slow acceleration, excessive RPM, belt glazing, noise, vibration and poor shifting with inspection points. CVT instructions specify metric puller threads and address clutch balance, impact-tool restrictions and the prohibition on mixing used clutch parts.
Front auto-lock differential setup includes pinion/carrier centering, preload calculations and backlash/shim charts. Rear-differential repair has its own gear-centering and shim-selection procedures.
Electrical, Chassis and Brake Detail
Electrical tests: Diagnostic procedures cover the 18-pole three-phase stator, regulator/rectifier, starter and solenoid circuits, CPS and ignition-coil resistance. Packard and Deutsch connector service, fuses, lamps, switches and accessory outlets support fault tracing; XT coverage adds winch removal and control-switch tests.
Chassis: Repair extends to tie-rods, McPherson front struts, ball joints, rear shocks, torsion bar and trailing-arm bearings. Body/frame sections cover panels, MAX passenger-seat fittings and steel-frame welding precautions.
Hydraulic brakes: System layouts distinguish the drive configurations. The chapter explains two separate circuits and the parking-brake lock, DOT 4 fluid replacement with simultaneous front/rear bleeding, pad/disc limits, hoses, pedal and brake-light switch.
Service References and Required Tools
Tables provide model-specific and standard metric torques, maintenance intervals, electrical values, wear limits and fluid capacities. The oil-viscosity chart recommends SAE 5W-30 for all seasons; technical data also lists Bombardier synthetic 5W-40. Cooling tables cover thermostat and switch thresholds plus radiator-cap pressure, while tire-pressure data distinguishes the MAX chassis.
Engine and cooling tool references include camshaft locking tool 529 035 926, crankshaft locking bolt 529 035 617 and water-pump ceramic-seal installer 529 035 766. CVT and differential tools include drive-pulley puller 529 035 746, driven-pulley expander 529 035 747 and backlash tool 529 035 665.
Before major repair work, isolate the battery, support the ATV securely, work only on a cold cooling system, and follow the manual’s warnings for fuel, spring-loaded rewind-starter and CVT components, rotating parts, and hydraulic brakes.
A Preview of Belt, Backlash and Valve Data
Drive-belt inspection lists a 32.00 mm new nominal width and a 30.00 mm service limit.
For the front differential, acceptable backlash is 0.025–0.152 mm, checked at five positions around the pinion gear.
Valve-adjustment data gives 0.06–0.14 mm intake clearance and 0.11–0.19 mm exhaust clearance.
