Bombardier Models Covered & Key Technical Specifications

Models: Outlander 400, Outlander XT 400, Outlander 800, Outlander MAX 400, Outlander MAX XT 400, Outlander XT 800, Outlander MAX 800, Outlander MAX XT 800

Sub-models / Variants: Outlander 400 Series, Outlander 800 Series, Outlander MAX Series, XT trim

Model Year: 2006


  • Engine Type: Rotax 400 (400 Series) and Rotax V-810 (800 Series)

  • Engine Oil Capacity (400 Series): 3 L (3.17 qt)

  • Engine Oil Capacity (800 Series): 1.7–2 L (1.8–2.11 qt)

  • Coolant System Capacity: 2.5 L (2.65 qt); 50/50 antifreeze/distilled water mix

  • Radiator Cap Pressure Rating: 110 kPa (16 PSI)

  • Radiator Fan Operation: On at 98°C (208°F), off at 95°C (203°F) (800 Series)

  • Fastener Torque (M8/8.8 Grade): 24.5 Nm (18 lbf-ft)

  • Fastener Torque (M10/8.8 Grade): 48 Nm (35 lbf-ft)

  • Fastener Torque (M12/8.8 Grade): 85 Nm (63 lbf-ft)

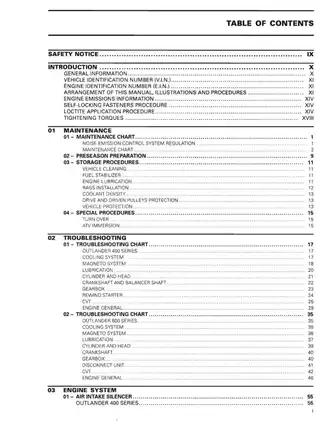

Bombardier Manual Features & Selected Content Preview

The 2006 Bombardier Outlander Vehicle Shop Manual (P/N 219 100 228) covers the Outlander 400 and 800 ATV series, including XT, MAX, and MAX XT versions. It covers vehicle service for the carbureted Rotax 400 and fuel-injected Rotax V-810.

PDF Download

The download contains one printable, English-language PDF with 526 pages.


Engine Service, EFI Diagnostics, and Drivetrain Repair

These are selected topics from the manual, which also includes preseason preparation and procedures for an overturned or submerged ATV.

  • Maintenance and engine service: Service intervals, storage, lubrication and cooling checks, exhaust work, and engine removal and installation for both platforms.
  • Carburetor and EFI service: Mikuni BSR33 carburetor service, fuel pump and injector tests, pump module replacement, and throttle body and idle actuator procedures.
  • Electrical diagnosis: Charging and starting tests, ignition coil checks, Digitally Encoded Security System (DESS) key programming, speedometer diagnostics, XT winch testing, and wiring diagrams.
  • CVT and gearbox: Drive belt replacement, drive and driven pulley service, one-way clutch inspection, and Outlander 800 gearbox disassembly, shimming, and reassembly.
  • Drivetrain: Model-specific 4x4 coupling service, front and rear differentials, driveshafts, CV boot replacement, and differential backlash and preload checks.
  • Steering and suspension: Steering column service, wheel alignment, front struts or A-arms by model, rear shocks, and trailing-arm bearing replacement.
  • Brakes and bodywork: Hydraulic disc brake inspection and bleeding, master cylinders, calipers, brake hoses, body panels, MAX seats, and XT bumpers.

BRP wrote this manual for technicians familiar with its vehicles and equipped with the specified diagnostic equipment and service tools.

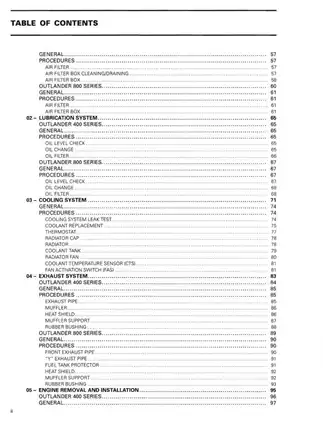

Cooling, Lubrication, and Engine Removal

The maintenance charts organize service by operating time and distance. Storage instructions distinguish the carbureted 400 from the EFI 800. Cooling system procedures cover leak testing, thermostat and radiator cap checks, fan diagnosis, and bleeding. The 400 uses a fan activation switch, while the 800 uses the coolant temperature sensor and ECM to control the fan.

The manual covers engine removal and installation on both platforms. Internal engine overhaul requires the separate Rotax 400 or V-810 Engine Shop Manual.

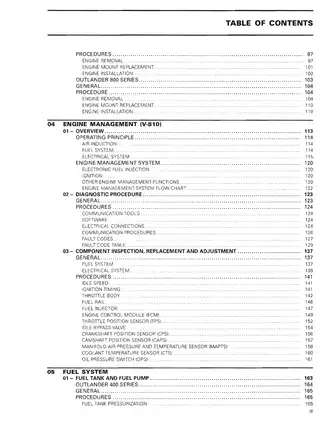

EFI Fault Tracing and B.U.D.S.

The 800 EFI chapter includes an engine management flowchart, diagnostic trouble-code tables, ECM connector pinouts, and sensor and actuator tests. It explains on-board fault-code retrieval through the multifunction speedometer and covers B.U.D.S. communication with the VCK or MPI-2 interface. The Closed Throttle and Idle Actuator reset procedure specifies the VCK.

The fuel delivery flowchart and pressure-loss tests help trace leakage to the fuel rail, pump check valve, injector, or pressure regulator before parts are replaced. The manual also explains how to avoid spreading ECM connector terminals during testing or damaging the idle bypass valve drive screw.

CVT, Gearbox, and Chassis Service

The transmission chapter separates pulley service by engine platform. The 800 gearbox section pairs exploded views with disassembly, reassembly, and clearance checks. The differential chapters explain when gear replacement requires shimming and how backlash and bearing preload are checked.

The chassis sections distinguish the 400’s MacPherson front struts from the 800’s double A-arms. Component torque values, wear limits, and special-tool references support inspection and reassembly. Follow the manual’s precautions for pressurized fuel, spring-loaded clutch components, and brake repairs.
