Rotax Models Covered & Key Technical Specifications

Model: V-810 (4-TEC)

Model Year: 2006


  • Engine displacement: 800 cm³ (48.82 cu in)

  • Compression ratio: 10.3:1

  • Engine Speed at Maximum Power: 6750 RPM

  • Engine Bore Diameter: 91 mm (3.58 in)

  • Oil Pressure: Minimum 350 kPa (51 PSI) at 6000 RPM, engine at 90°C (194°F)

  • Magneto Generator Output: 420 W at 6000 RPM

Rotax Manual Features & Selected Content Preview

This 2006 Rotax V-810 Engine Shop Manual (P/N 219 100 230) covers repair of the liquid-cooled, four-stroke SOHC twin-cylinder 4-TEC engine used in Bombardier ATVs. BRP specifies using this engine volume alongside the appropriate Vehicle Shop Manual, a separate publication.

PDF Reading and Page Breakdown

Text search and illustration detail: PDF search is unavailable for the technical text, and the file has no embedded bookmarks. Background text shows through on some pages, shadows obscure detail in some photographs, and small labels in exploded views benefit from zooming.

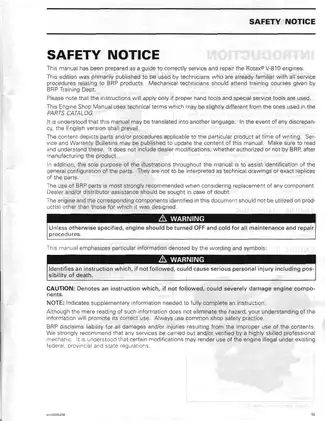

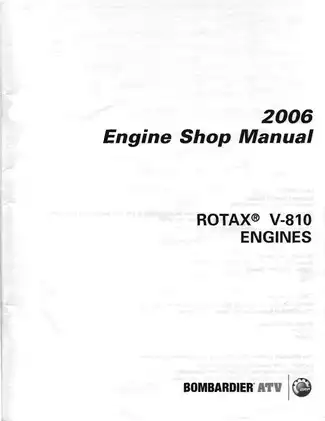

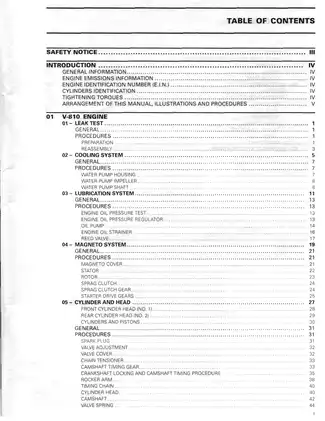

The download is one printable 88-page PDF in English. The total includes 74 technical pages, seven pages of contents, safety information, and introduction, two cover and title pages, and five otherwise blank pages.


Cylinder Leak Testing and Internal Engine Repair

These selected topics show the scope of the engine volume. The manual also covers spark plug removal and installation and inspection of the piston pin and its bore clearance.

  • Leak testing: Cylinder leak-test preparation, a leakage-percentage chart, and fault identification for valves, piston rings, head gaskets, and crankcase sealing.

  • Cooling system: Water pump housing, impeller, and shaft service, with inspection and replacement details for the rotary seal and oil seal.

  • Lubrication system: Engine oil-pressure testing, pressure regulator inspection, oil pump clearance checks, engine oil strainer service, and reed valve inspection.

  • Magneto system: Magneto cover, stator, and rotor removal and installation, plus mechanical inspection of the sprag clutch and starter drive gears.

  • Cylinder and head: Valve adjustment, camshaft timing gear and chain tensioner service, rocker arm inspection, valve guide replacement, and cylinder, piston, and ring checks.

  • Bottom end: PTO cover service, MAG- and PTO-side timing chain and guide service, crankcase separation, plain-bearing replacement, and crankshaft and connecting rod inspection.

BRP wrote this manual primarily for technicians already familiar with its service procedures and equipped with the appropriate hand tools and special service tools.

Leak Diagnosis, Cooling, and Lubrication

The leak-test section connects leakage paths with likely valve, piston-ring, cylinder, or gasket problems. This helps narrow the source of an internal leak before planning engine disassembly.

A water pump exploded view accompanies the housing and shaft procedures. Shaft replacement requires crankcase separation, and the manual identifies the ceramic seal installer used for assembly.

Oil pump illustrations show where rotor and axial clearances are measured. Regulator inspection includes spring-length limits. Oil-change procedures and engine oil and coolant capacities are covered in the separate Vehicle Shop Manual.

Cylinder Heads and Camshaft Timing

Separate front and rear cylinder-head exploded views distinguish the assemblies. The cylinder head, cylinder, and piston can be removed with the engine in the ATV. Camshaft timing drawings cover each cylinder individually and identify the camshaft locking tool, P/N 529 035 926.

Head installation includes staged tightening. Valve guide replacement covers installation depth, reaming, and valve-seat contact checks. The manual warns that mixing up the front and rear camshafts can damage the engine. Its chain tensioner procedure flags the spring load and the risk of a hot exhaust.

Crankcase, Bearings, and Connecting Rods

Crankshaft journal measurements are paired with MAG-side, PTO-side, and PTO support-bearing clearances. Connecting rod inspection distinguishes big-end radial play, big-end axial play, and small-end measurements.

Press-tool and support-sleeve illustrations show the different plain-bearing orientations on the two crankcase sides. Incorrect oil-hole alignment can cut off lubrication and damage the engine. A crankcase tightening-sequence drawing supports reassembly.

Magneto Repair and Electrical Coverage

Rotor removal calls for a magneto puller and crankshaft protector. The manual includes a sprag clutch functional test and identifies the DI (Digital Induction) ignition system and its fixed ignition timing.

Electrical stator testing is covered in the charging-system section of the separate Vehicle Shop Manual. This engine volume contains no wiring diagrams.

Valve Clearance and Ring-Gap Examples

Cold valve-clearance ranges are 0.06–0.14 mm for the intake valves and 0.11–0.19 mm for the exhaust valves.

The upper compression-ring end gap is 0.20–0.40 mm when new, with a service limit of 1.50 mm. The specified measurement location is 8–16 mm below the top of the cylinder.
