2006 Rotax 400 4-TEC ATV Engine Shop Manual (P/N 219 100 232)

This 2006 Rotax 400 4-TEC Engine Shop Manual (manual part no. 219 100 232) covers service and repair of the liquid-cooled SOHC Bombardier ATV engine and its internal gearbox. Vehicle-specific engine removal and installation require the separate Vehicle Shop Manual.

• Leak testing: Cylinder leak-test preparation, a leakage-percentage chart, and diagnosis of leakage through the valves, cooling system, and crankcase.

• Cylinder and valve train: Cylinder-head disassembly, valve adjustment, camshaft and rocker-arm inspection, decompressor service, timing chain tensioner checks, and piston and ring replacement.

• Crankshaft and crankcase: Crankcase separation, bearing replacement, connecting-rod inspection, oil-seal service, crankshaft clearance checks, and balancer-shaft timing.

• Gearbox and output shaft: Gear, shift-drum, and shift-fork inspection; output-shaft service; bevel-gear adjustment; thrust-washer selection; and final gear-selection checks.

• Cooling and lubrication: Water-pump disassembly and seal replacement, oil-pressure testing, oil-strainer cleaning, pressure-regulator inspection, and oil-pump wear measurements.

• Starting and magneto components: Rewind-starter rope and spring service, starting-pulley removal, and mechanical service of the magneto stator, rotor, and Crankshaft Position Sensor (CPS).

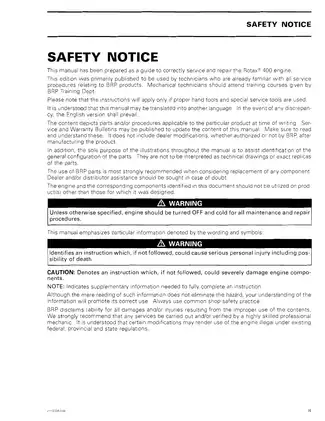

Written primarily for technicians already familiar with BRP service procedures, this manual assumes access to proper hand tools, measuring equipment, and the specified special service tools.

Leak Diagnosis and Cylinder-Head Repair

Leak-test results are linked to specific leakage paths. This helps a technician distinguish valve-sealing problems from ring, cylinder, or head-gasket faults before committing to a teardown.

The cylinder and head procedures include valve-guide replacement and reaming, valve-seat contact checks, and camshaft and rocker-arm measurements. Illustrated micrometer and dial bore gauge setups explain piston-to-cylinder clearance checks; valve-seat contact-width drawings and piston circlip installation views support the related assembly work.

The timing procedures specify camshaft locking tool P/N 529 035 926 and explain sprocket indexing. The manual warns that incorrect valve timing can damage engine components.

Water-Pump, Lubrication, and Magneto Work

Water-pump service covers the impeller, shaft, oil seal, and ceramic rotary seal, with criss-cross cover-tightening illustrations. The seal-installation procedure specifies installer P/N 529 035 766 and warns that hammering can damage the ceramic component.

The lubrication chapter identifies oil passages and covers pump-rotor inspection, pressure-regulator spring checks, and a final oil-pressure test. Dial-indicator views show how pump housing and rotor wear are assessed.

Scope limits: Thermostat and coolant-temperature-switch removal, testing, and installation are referred to the separate Vehicle Shop Manual. Stator electrical checks and CPS testing are also referred there; this engine manual covers their mechanical removal, inspection, and installation.

Crankcase Bearings and Gearbox Adjustment

Crankcase procedures identify the supports and installers used for plain and needle bearings. Reference tables distinguish new dimensions from service limits for pistons, rings, connecting-rod bores, and crankshaft bearing surfaces.

Bevel gears: A section view, measurement formulas, and thrust-washer tables separate MAG-side backlash adjustment from PTO-side axial clearance. These help a rebuilder select washers from measured dimensions when the output shaft, bevel gear, or crankcase is replaced.

Shift-drum and shift-fork inspection covers wear at the tracks, engagement pins, and gear grooves. The shifting-indicator section includes a resistance test and wire-color identification for park, reverse, and neutral.

Engine repair involves spring-loaded parts and exposed rotating components. Follow the manual's warnings and complete procedures along with standard shop safety practices.

Oil-Pressure and Shaft-Clearance Examples

The following figures are a small sample of the pressure-test and clearance data in this manual. For a warm engine using the recommended oil, the minimum oil pressure at 6000 rpm is 350 kPa (51 PSI).

The crankcase section gives a new crankshaft axial-clearance range of 0.1–0.4 mm. The output shaft has a separate axial-clearance service limit of 0.30 mm.

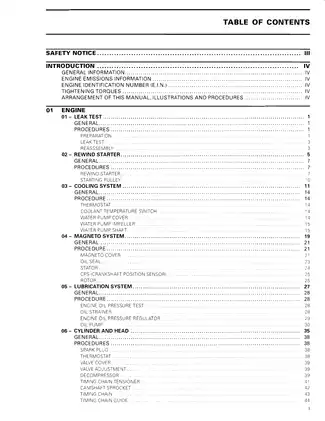

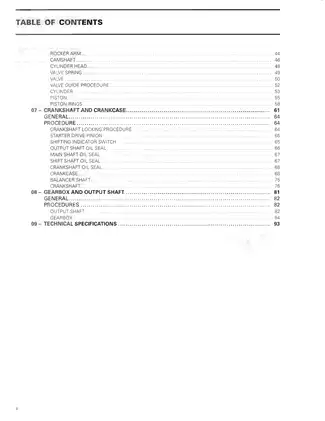

PDF Navigation and Included Pages

Text search and navigation: PDF text search and embedded bookmarks are not available. The contents pages and printed section/page numbers provide the navigation reference.

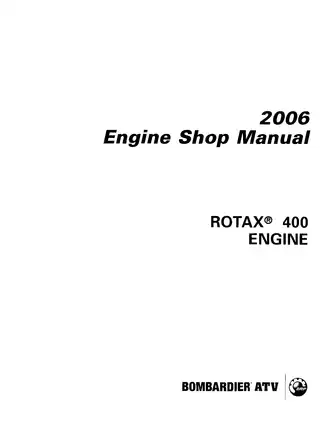

The download is a single, printable 104-page PDF in English: 91 technical pages, six contents/safety/introduction pages, two cover/title pages, and five additional pages, all included in the total.
