Suzuki DR750S/DR800S Service & Repair Manual 1988–1997 (P/N 99500-47010-01E)

Suzuki service manual P/N 99500-47010-01E covers the DR750S and DR800S range for 1988–1997. The 1988 DR750SJ workshop sections form the base, followed by factory model-change chapters through the 1997 DR800SV. The foreword carries a 1990 copyright notice.

Printable PDF, Search and Diagram Detail

Search, navigation and wiring detail: PDF text search is not available, and there are no embedded bookmarks. Small wiring labels require zooming; some lines in the 1991 wiring diagrams are faint.

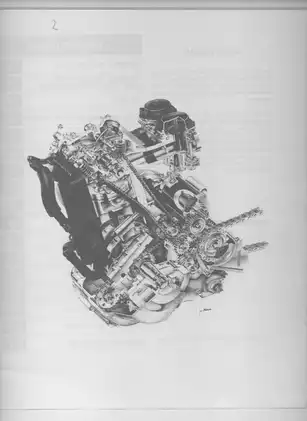

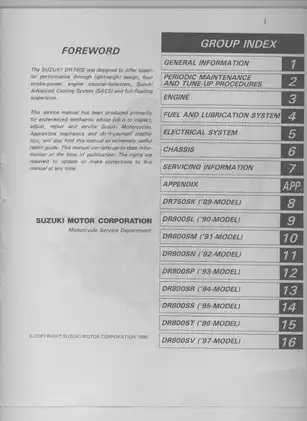

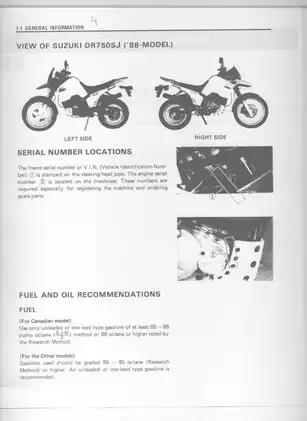

The ZIP contains one printable, English-language 353-page PDF. This total includes 191 pages of base workshop sections, 157 pages of model-change chapters, the one-page ’88-model appendix, and four pages comprising the front cover, foreword/group index, engine illustration and back cover.

Engine Overhaul, Balancer Service and Chassis Repair

The following selected coverage highlights outline major workshop content. Additional topics include air-cleaner maintenance and combination-meter inspection.

• Engine repair: Step-by-step engine removal, disassembly and reassembly, cylinder-head and valve service, camshaft inspection, piston and cylinder work, and crankshaft checks.

• Clutch and transmission: Clutch inspection and repair, transmission rebuilding, shift-fork and gearshift-mechanism service, starter-clutch checks, and transmission assembly drawings.

• SACS and counterbalancers: Oil-pressure testing, oil-pump and pressure-regulator service, balancer-chain adjustment, balancershaft inspection, timing references, and lubrication/cylinder-head-cooling charts.

• Fuel-system service: Twin-carburetor disassembly, needle-valve inspection, float-height adjustment, throttle-valve balance setup, fuel-cock information, and vacuum fuel-pump checks.

• Electrical diagnosis: Charging and CDI ignition tests, starter-motor repair, de-compression control checks, troubleshooting charts, resistance tables, and market-specific wiring diagrams.

• Brakes and running gear: Wheel and hub service, brake bleeding and hydraulic-component overhaul, fork disassembly, steering-bearing service, swingarm work, and rear-suspension reassembly.

Written primarily for experienced mechanics, the manual also addresses apprentice and DIY mechanics; internal repairs call for the measuring equipment and special tools specified in the procedures.

Base Engine Repair and Counterbalancer Timing

The main workshop sections identify components removable with the engine in the frame and provide compression and oil-pressure checks before internal repair. Cylinder-head coverage extends to rocker arms, the de-compression shaft, valve guides, valve-seat conditioning and cam-drive components.

Internal assembly: Piston-ring inspection, connecting-rod and crankshaft checks, clutch-pack assembly, transmission shafts, shift forks and the shift cam receive component-level treatment. The transmission cross-sectional view shows gear, washer and circlip positions.

The top-drive and third-driven-gear bushing instructions identify oil-hole alignment that protects shaft lubrication; incorrect orientation can restrict oil flow and damage the bushing or gear. The valve-seat section cautions that excessive cutting can compromise valve-stem-to-rocker contact geometry.

Counterbalancers and SACS: Separate front and rear balancershafts, driven sprockets, chain guides and the tensioner are illustrated. Timing references relate sprocket marks to the chain’s chrome-plated links. Dedicated lubrication and cylinder-head-cooling flow charts trace the oil circuits.

Carburetor Service and Electrical Fault Finding

Carburetor construction drawings support inspection of jets, diaphragms, floats and needle valves. The fuel-system material also explains fuel-cock operation, vacuum-pump action, fuel-line inspection and filter condition. Pump faults lead to assembly replacement rather than an internal pump-rebuilding procedure.

Starting and charging: Electrical coverage includes generator output, regulator/rectifier checks, ignition and magneto coils, CDI testing, starter brushes and armature checks, starter-relay inspection, switches, lamps and battery service.

The troubleshooting charts connect starting, running and charging symptoms with possible causes and corrective actions. Used with the circuit diagrams and component tests, they support fault tracing across the related systems. CDI and regulator/rectifier resistance tables include cautions that readings can differ with meters other than the specified Suzuki pocket tester.

Brakes, Suspension and Workshop References

Chassis procedures cover hub-bearing replacement, spoke and rim inspection, speedometer-gearbox service, brake-disc checks, caliper and master-cylinder overhaul, fork oil-level setting, and steering-stem bearing replacement and adjustment.

Rear suspension: Swingarm and cushion-lever/rod bearings, seals and assembly details are included, along with shock-absorber installation and spring-preload adjustment. The base section specifies replacement of a damaged or leaking shock-absorber assembly.

Always secure the motorcycle on a suitable lift or stand before engine, wheel, fork, steering or rear-suspension work. The brake-fluid cautions explain that mixing the specified glycol-based fluid with silicone- or petroleum-based fluid can damage the hydraulic system.

Drawings and routing: Representative references include the transmission section view, balancer-chain timing view, SACS flow chart, carburetor construction drawing, front-fork section drawing and regional wiring diagrams. Routing pages cover wiring, magneto leads, cables, brake and fuel hoses, carburetor vents, oil-cooler lines, vacuum lines and breathers.

Factory tools are identified by number, including the 09920-13120 crankcase separating tool, 09930-40130 balancer driven sprocket holder, 09916-24900 valve-seat cutter set and 09943-74111 fork oil-level gauge. Reference tables supply component and general-fastener torques, wear limits, clearances, runout limits, carburetor data, electrical test values, tire data, fluids and capacities.

Model Changes That Affect Parts and Procedures

The later chapters supplement the base procedures and refer back to earlier sections for unchanged details. They help distinguish revised components and test procedures before parts or service data are selected.

DR750SK and DR800SL: The 1989 chapter documents the rear drum-to-disc brake change, with rear-brake assembly and hose-routing information. The 1990 chapter distinguishes the DR800 crankshaft, connecting rod and piston configuration and adds mounting and cable-routing details.

DR800SM: The 1991 material covers revised clutch components, an added balancer-chain guide, starter torque-limiter inspection with dedicated tools, and an electric de-compression solenoid with timed starter control. Battery changes and extensive wiring, cable and hose-routing pages are also included.

DR800SN and DR800SP: The 1992 chapter supplies the revised balancer-chain adjustment procedure. The 1993 chapter adds adjustment and routing information for the twin throttle cables.

DR800SR through DR800SV: The 1994 material adds wiring and mounting information, including the fuel-tank lower bridge. The 1995 chapter provides specifications and service data. The 1996 update includes throttle-position-sensor inspection and positioning, revised CDI and regulator/rectifier tests, and wheel and brake information. The 1997 chapter states that its specifications and service data follow the T-model baseline.

A Preview of Valve Clearances and Sensor Test Data

For the DR750SJ, cold intake and exhaust valve clearance is 0.05–0.10 mm. The DR800SM data separates cold intake clearance at 0.08–0.13 mm from cold exhaust clearance at 0.15–0.20 mm.

The DR800ST throttle-position-sensor inspection specifies 3.5–6.5 kΩ between terminals A and B. Its accompanying illustration identifies the test terminals, and the same section explains sensor positioning after removal.
