Suzuki FA50 Shuttle Moped Service Manual 1980–1991 (P/N SR-0570 (英)E-03)

Suzuki Motor Co.’s FA50 service manual for the FA50 Shuttle, P/N SR-0570 (英)E-03, dated July 1980. It documents the reed-valve engine, Suzuki CCI lubrication, wet-shoe centrifugal clutch, and PEI ignition configuration.

PDF Access and Wiring Diagram Detail

Search, bookmarks, and diagrams: PDF text search is not available. Embedded bookmarks link to individual pages but use image filenames and are not arranged in page order. Small wire-color labels in the full wiring diagram require zooming; the diagram is printed sideways.

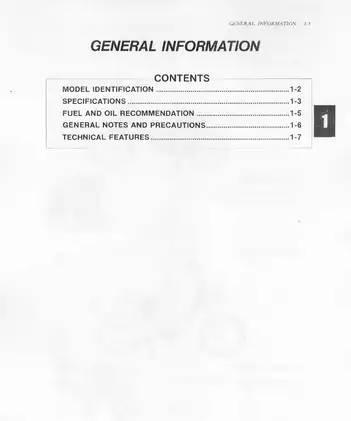

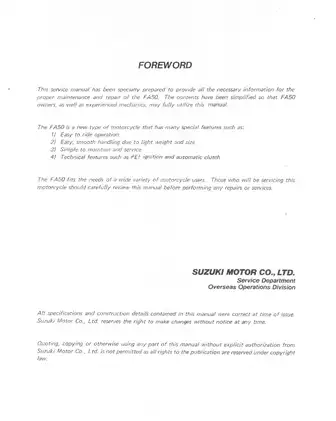

The ZIP download contains one printable English-language PDF with 74 pages total: 70 section pages, two cover pages, one foreword page, and one group-index page. All four cover and introductory pages are included in that total.

Engine, Automatic Clutch and PEI Service Coverage

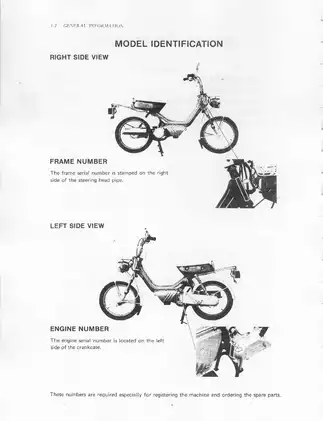

These selected service topics outline the repair coverage rather than reproduce the full contents. Additional topics include fuel and oil recommendations and frame- and engine-number identification.

• Engine repair: Step-by-step engine removal and installation instructions, plus cylinder-head, piston, ring, crankshaft, and crankcase service with illustrated inspection references.

• Automatic clutch and transmission: Engagement and lock-up inspections, clutch-component checks, kick-starter service, drive-chain inspection, and final-drive assembly references.

• Carburetor and CCI lubrication: Carburetor overhaul, float and needle-valve inspection, oil-pump air bleeding, and measured pump-output testing.

• Electrical testing: Flywheel-magneto removal, ignition-timing checks, and component tests for the stator, ignition coil, PEI unit, and rectifier.

• Steering, suspension and brakes: Steering-bearing service, front-suspension inspection, wheel-bearing checks, and drum-brake repair with wear specifications.

• Maintenance and service data: Periodic Maintenance Chart, Lubrication Chart, adjustment procedures, tightening-torque tables, and standard dimensions versus service limits.

• Troubleshooting and wiring: Starting, running, overheating, and clutch-fault tables, supported by PEI circuits, wiring diagrams, and wire-and-cable routing drawings.

Written for FA50 owners as well as experienced mechanics, the manual specifies special tools and electrical test equipment for the relevant procedures.

Maintenance, Carburetor and CCI Lubrication

The maintenance section goes beyond a basic owner’s schedule. Its Periodic Maintenance Chart covers the air cleaner, battery, brakes, carburetor, cylinder head and cylinder, oil pump, spark plug, steering, tires, and transmission oil. A separate Lubrication Chart identifies the brake cables and cam shafts, choke cable, speedometer gear and cable, and throttle cable.

CCI lubrication coverage includes air bleeding and a measured oil-pump discharge check. Transmission-oil service specifies SAE 20W/40 motor oil. The fuel-line replacement schedule is also included.

The Mikuni VM12SH carburetor section covers cleaning, float inspection, and needle-valve checks. Its specification table identifies the 3F13-3 jet needle, E-6 needle jet, #77.5 main jet, and #15 pilot jet, alongside float-height and idle-adjustment data.

Internal Engine and Drivetrain Repair

Exploded service views show piston and ring orientation, left-cover and kick-starter assembly, crankcase bearings and seals, and power-transmission components. Inspection data covers cylinder bore, piston clearance, ring end gap, conrod small-end bore, and crankshaft deflection, with cylinder-head tightening information alongside the repair drawings.

The drivetrain material explains the oil-bath drive chain and final-drive arrangement. Clutch inspection distinguishes initial engagement from full lock-up, while component checks address shoe wear, spring condition, and clutch-wheel diameter. Assembly notes also cover final-drive shimming.

The crankshaft section identifies remover 09920-13111 to prevent crankshaft and bearing damage; the clutch lock-up section warns that prolonged full power can damage the clutch or engine.

Special-tool references: Callouts include CCI oil gauge 09900-21602, electro-tester 09900-28106 with PEI test lead 09900-28607, clutch holder 09920-30220, bearing remover 09921-20210, and rotor holder 09930-40113.

PEI Diagnosis and Symptom-Based Troubleshooting

Electrical diagnosis receives component-level coverage. Beyond the ignition components, continuity tables address the ignition switch, left-handle switch, engine kill switch, and front and rear brake switches. Separate procedures cover rectifier testing and horn inspection.

The PEI section’s Connecting Diagram and Wiring Circuit explain the ignition connections and circuit operation. Wire and Cable Routing drawings and the full Wiring Diagram support tracing the harness and control cables.

Hard-starting tables distinguish crankcase and combustion-chamber compression leakage from fuel-circuit and electrical causes. Other entries address stalling, insufficient power, poor low- and high-speed performance, overheating, and defective clutch operation. These references help compare mechanical, fuel, and ignition causes before selecting a repair procedure.

Steering, Wheels and Drum Brakes

Chassis specifications identify telescopic front suspension, an oil-dampened swinging-arm rear suspension, internal-expanding brakes, and 2.25-14 4PR tires. Repair references cover steering races and balls, front-suspension components, wheel-bearing replacement criteria, axle deflection, and axial and radial rim runout.

Brake and wheel service data includes drum-diameter, lining-thickness, and tire-tread limits. Brake-service warnings explain how excess grease can contaminate the linings and cause brake slippage.

Working on motorized vehicles presents inherent physical risks, and incorrect adjustments can lead to component failure or accidents. Use the manual’s specified test conditions, torque values, and safety cautions when carrying out repair work.

Selected Cylinder and Clutch Inspection Values

The cylinder service-data table lists a standard bore of 41.000–41.015 mm, measured 15 mm from the top surface, with a 41.065 mm service limit. Piston-to-cylinder clearance is 0.055–0.085 mm standard, with a 0.120 mm service limit.

With the engine at normal operating temperature, the automatic-clutch inspection specifies initial engagement at 2,400 ± 200 rpm and lock-up at 3,500 ± 300 rpm. The manual treats these as separate operating checks.
