Suzuki GR650 / GR650X Factory Service Manual, 1983 (P/N 99500-36030-01E)

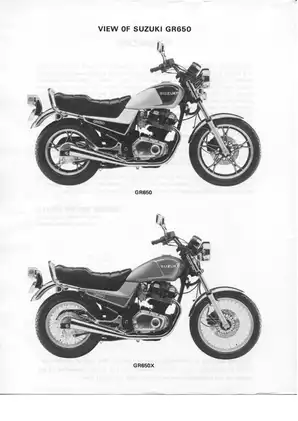

Suzuki’s February 1983 factory service manual (P/N 99500-36030-01E) uses the cast-wheel GR650 as its baseline and identifies service differences for the spoke-wheel GR650X.

Printable PDF and Wiring Diagram Detail

Text search, bookmarks, and diagram labels: The PDF has no built-in text search or embedded bookmarks. Zoom in to read the small wire-color codes and switch labels on the wiring diagrams.

The ZIP contains one printable English-language PDF. Its 270 pages include the front and back covers, the publication information page, and three blank pages.

Engine Overhaul, Carburetor Service, and Chassis Repair

These selected service topics illustrate the manual’s scope. The manual also includes a drive-chain wear check and a guide to routing the front brake hose.

• Scheduled maintenance: Service intervals, a lubrication chart, and tune-up procedures with a shim selection chart for valve clearance adjustment.

• Engine overhaul: Compression testing, access to components with the engine in the frame, engine removal and reinstallation, teardown, inspection, reassembly, and cam timing.

• Crankshaft and transmission: Variable Mass Crankshaft and flywheel centrifugal clutch inspection, bearing selection, starter pinion checks, and service procedures for the wet clutch, transmission, and shift mechanism.

• Fuel and lubrication: Vacuum fuel cock operation, Mikuni BS36SS carburetor teardown and reassembly, fuel-level checks, float adjustment, needle-valve inspection, carburetor balancing, and oil-pressure testing.

• Electrical diagnosis: Charging and generator tests, transistorized ignition and ignitor checks, starter motor repair, switch continuity tests, combination meter and coil-type fuel gauge diagnosis, and battery service.

• Wheels, brakes, and suspension: Front and rear wheel service, cast-wheel tubeless tire work, hydraulic front brake caliper and master cylinder repair, bleeding, rear drum brake service, and steering bearing inspection.

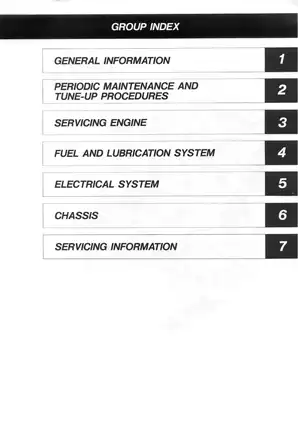

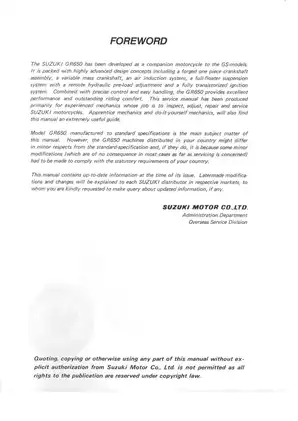

Suzuki wrote the manual primarily for experienced mechanics and also identifies it as a reference for apprentices and DIY mechanics.

Bearing Selection and Engine Assembly

Selection tables match crankshaft journal, connecting rod, and counterbalancer bearings to the relevant component markings. Suzuki also gives thrust bearing checks and illustrates how the counterbalancer offsets crankshaft forces and how the auxiliary flywheel mass engages and disengages.

The cylinder head section covers valve guide replacement and valve seat work. Suzuki warns that poor guide-bore preparation can damage the replacement guide or cylinder head, and that uneven tightening of the location-matched camshaft holders can damage the head or holder thrust surfaces. Twin Dome Combustion Chamber diagrams illustrate swirl and squish.

Carburetor Identification and Oil Flow

The service data lists carburetor body ID 15520 for E18 and 15500 for the other listed markets. The Air Induction System and intake tract drawings show the air path, while the lubrication chart traces oil flow to the piston-cooling jets. Suzuki specifies replacement of the oil pump as a complete assembly.

Market Wiring and Suspension Differences

Seven wiring diagrams are keyed to wheel version and market code. That lets you select the correct diagram before tracing the harness. The electrical section also shows the electronic advance waveform and provides separate generator and regulator/rectifier checks for investigating low charging output.

The fork section separates the ordinary fork from the Canadian E28 cast-wheel air fork, which has its own oil and air settings. The Full Floater section covers swingarm and linkage bearings, shock removal and inspection, and remote hydraulic spring-preload adjustment. Suzuki specifies external checks for the shock unit and excludes internal disassembly. For front brake work, follow the manual’s brake-fluid compatibility and bleeding precautions.

Troubleshooting, Torque, and Special Tools

Troubleshooting charts cover the engine, carburetors, electrical system, battery, chassis, and brakes. Section views, exploded assemblies, wire and cable routing, torque tables, and service limits support inspection and reassembly.

The illustrated 62-item special-tool catalog gives Suzuki part numbers. It marks hex wrench 09900-18720, N-233 valve seat cutter head 09916-24490, and clutch sleeve hub holder 09920-53721 as GR650-specific.

Sample Valve Clearance and Charging Specs

The tune-up chapter specifies 0.03–0.08 mm cold tappet clearance for both intake and exhaust valves on the GR650 engine. The accompanying shim chart is used when a clearance falls outside that range.

The charging check specifies 13.5–15.5 V DC across a fully charged battery at 5,000 rpm. At the same speed, the separate no-load generator check specifies at least 80 V AC between the generator leads with the generator disconnected from the harness.
