Suzuki GSX-R750 Service Manual 1996–1999 (P/N 99500-37083-03E)

Suzuki Motor Corporation’s service manual covers the 1996 GSX-R750T, 1997 GSX-R750V, 1998 GSX-R750W, and 1999 GSX-R750X. P/N 99500-37083-03E, 4th Edition, March 1999, was prepared by the Motorcycle Service Department and printed in Japan; the first edition dates to November 1995.

PDF Search, Page Navigation, and Diagram Detail

Finding procedures and wiring details: PDF text search is not available. Embedded bookmarks link to individual pages under image filenames rather than chapter names. Small wiring labels require zooming, and some dense connector and wire-color markings remain soft at higher magnification.

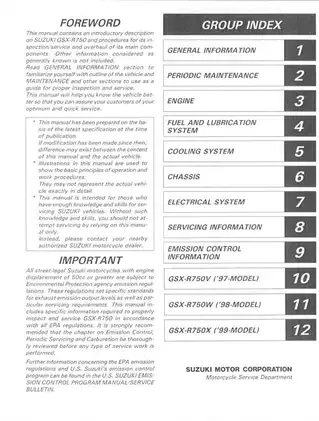

The ZIP contains one printable, 557-page PDF. That total already includes five cover and introductory pages, nine blank separator pages, and one publication-information page, together with the integrated V, W, and X update chapters.

Engine Overhaul, Fuel-System Diagnosis, and Chassis Service

The following selected coverage highlights are not a complete contents list. Further topics include tire removal and installation, instrument-panel checks, and fairing and frame-cover assembly references.

• Periodic maintenance: Tappet-clearance inspection and shim selection, spark plugs, oil and filter service, throttle-cable adjustment, drive-chain care, and chassis inspections.

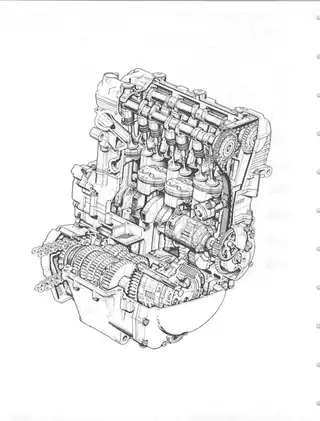

• Engine repair: Step-by-step engine removal and installation, camshaft and cylinder-head service, valve-guide and seat work, and cylinder/piston inspection.

• Clutch and transmission: Clutch overhaul, crankcase separation, gearshift-component inspection, transmission reassembly, and crankshaft/conrod inspection with bearing-selection tables.

• Fuel systems: T/V carburetor disassembly, cleaning, and synchronization; W fuel-injection diagnosis, fuel-pressure testing, injector checks, throttle-body service, and TPS setting.

• Cooling and lubrication: Water-pump overhaul, thermostat and cooling-fan checks, oil-pump and oil-cooler service, and lubrication-system diagrams.

• Chassis and brakes: Front-fork disassembly and oil-level setting, steering-head service, swingarm and rear-suspension work, caliper/master-cylinder repair, and drive-chain cutting and joining.

• Electrical troubleshooting: Charging and ignition tests, starter-motor overhaul, interlock-circuit diagnosis, market-specific wiring diagrams, and component test specifications.

This manual is intended for readers with sufficient knowledge and skills to service Suzuki vehicles; it does not teach generally assumed workshop fundamentals.

How the Model-Year Chapters Work Together

The coverage is cumulative: the V chapter records changes from the T, the W chapter records changes from the V, and the X section records changes from the W. Each refers back to earlier sections for unchanged procedures, so the update chapters must be used with the preceding material.

W-model changes: The switch to fuel injection comes with revised transmission ratios and final drive. First gear changes from 2.866 to 2.625, while final reduction changes from 2.687 to 2.750. The chapter also adds steering-damper service and revised chassis, electrical, and emission-control information.

X-model changes: The final section covers updated service data and torque references, a revised cam-chain tension adjuster, engine-oil cooling, the Engine Lubrication System Chart, and PAIR hose routing. Cam-chain tension-adjuster locking tool 09917-62430 is identified for the revised adjuster.

Carburetor Service and W-Model FI Diagnosis

The T/V fuel-system material goes beyond jet specifications: it includes carburetor cleaning, needle-valve inspection, fuel-level and float-height checks, throttle-position-sensor positioning, and synchronization.

For the W, the FI System and Intake Air System section explains fuel delivery, ECM operation, injection timing, and intake-air control. Diagnostic coverage includes individual IAP, TP, CKP, CMP, IAT, ECT, AP, and tip-over sensor checks, plus vacuum-control-solenoid, vacuum-transmitting-valve, actuator, and vacuum-damper inspections.

Dealer-mode diagnosis: Malfunction tables connect codes to affected circuits, including C11 CMP, C12 CKP, C14 TP, C23 tip-over, C32–C35 injectors, C41 fuel-pump relay, and C42 ignition switch. These tables work with circuit checks and sensor tests to help distinguish a component fault from a wiring or connector problem.

The section identifies mode selection switch 09930-82710 and fuel-pressure gauge adaptor 09940-40210. The W fuel-pressure inspection specifies 290 kPa (41 psi) with the ignition switched on.

Internal Engine Work and Serial-Specific Starter Service

Crankshaft and conrod coverage includes bearing-clearance measurement and selection tables. The W chapter supplies revised crankshaft-journal bearing data and a clutch-plate stack inspection procedure, rather than relying solely on the base-model specifications.

For the W starter-clutch variants identified by the engine serial ranges above, the manual distinguishes the component arrangement and specifies rotor holder 09930-40113 with spacers P/N 09180-08140. This allows the service procedure and tooling to be matched to the engine’s particular build.

Camshaft and valve-guide cautions address cam-chain trapping between the crankcase and drive sprocket, and guide or cylinder-head damage during dry guide installation. W-model FI cautions explain the risk of electronic-component damage from powered ECM-coupler handling or reversed battery polarity.

The manual carries specific cautions for fuel, hot coolant, brake systems, and electrical servicing.

Wiring, Routing, and Assembly References

Market-specific references distinguish UK E-02, U.S. E-03, California E-33, Germany E-22, Australia E-24, Canada E-28, Austria E-39, and other European applications. Brazil appears as E-37 in the T material and P-37 in later sections.

Named drawings include the Engine Lubrication System Chart, Starter System and Side-Stand/Ignition Interlock System circuit diagrams, FI System Diagram, FI System Wiring Diagram, and PAIR (Air Supply) System Diagram. Separate wiring pages address U.S./Canadian, UK, Australian, and grouped European/Brazil applications, supporting fault tracing against the appropriate market configuration.

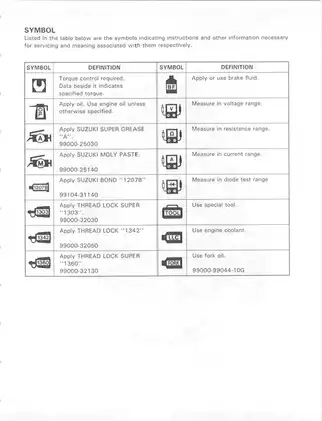

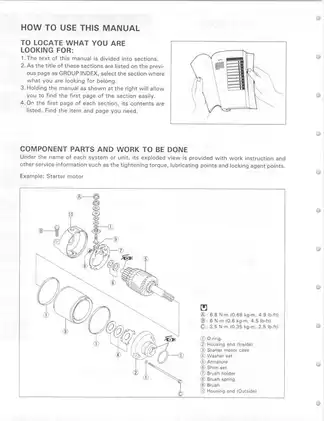

Exploded views combine assembly orientation with tightening torques, lubrication points, locking-agent callouts, and special-tool references. Engine and chassis tables include staged cylinder-head and crankcase fastener tightening, clutch-hub and generator-rotor torques, fluid capacities, wear limits, and electrical test data.

Selected Valve-Clearance and Engine-Test Specifications

Cold valve clearance is 0.10–0.20 mm intake and 0.20–0.30 mm exhaust. Intake valve-stem outside diameter is specified at 4.475–4.490 mm.

For the warmed-engine compression check, standard pressure is 1,100–1,500 kPa, with a 900 kPa service limit and a maximum 200 kPa difference between cylinders.

The oil-pressure check specifies above 200 kPa and below 500 kPa at 3,000 rpm with the oil at 60°C (140°F).
