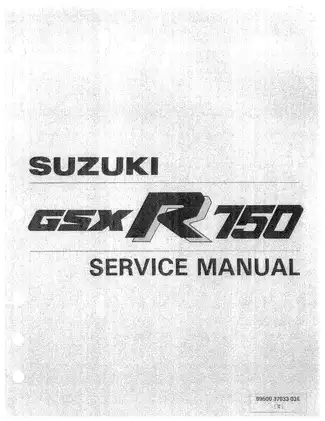

Suzuki GSX-R750 G/H/R 1986–1987 Factory Service Manual (P/N 99500-37033-03E)

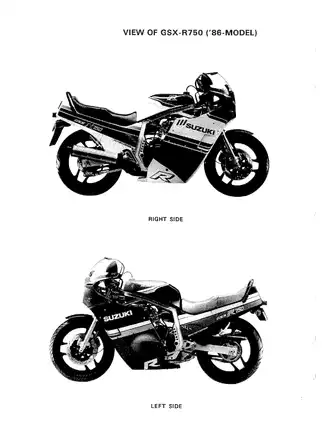

This English-language Suzuki factory service manual covers the 1986 GSX-R750G, 1986 GSX-R750R Limited Edition, and 1987 GSX-R750H. Suzuki Motor Co., Ltd., P/N 99500-37033-03E, third edition May 1987; first edition November 1985, copyright 1985. The Limited Edition and H-model chapters describe model-specific differences and refer back to G-model procedures for shared repair work.

PDF Search, Diagram Detail and File Contents

Text search and wiring detail: PDF text search and embedded bookmarks are not available. Small wire-color codes and component labels in the wiring diagrams are readable when zoomed; the sideways diagram pages benefit from page rotation.

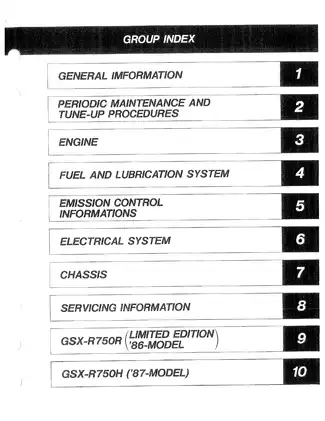

The ZIP contains one printable 311-page PDF. That total includes the original cover, five blank pages, an illustrated divider, the publication-information page, and the three-page spare-crankcase appendix.

Engine Overhaul, Carburetor Service and Electrical Diagnosis

These selected coverage highlights are not a complete table of contents. Other topics include break-in guidance and frame/VIN and engine-number identification.

• Engine repair: Compression testing, in-frame service options, engine removal, step-by-step disassembly and reassembly, component inspection, transmission service, and clutch repair.

• Fuel and lubrication: Carburetor-rack repair, needle-valve and float inspection, fuel-level checks, synchronization, oil-pressure testing, and SACS lubrication and cylinder-head cooling circuits.

• Electrical diagnosis: Charging, ignition, and starter-system tests; generator and starter-motor service; combination-meter, lighting, switch, and battery checks; wiring diagrams and troubleshooting tables.

• Brakes and wheels: Caliper and brake-master-cylinder repair, fluid bleeding, wheel-bearing service, tubeless-tire removal and mounting, and tire and rim inspection.

• Steering and suspension: Front-fork overhaul and adjustment, steering-stem bearing service, and the opening portion of rear-suspension removal and disassembly.

• Variant-specific systems: Limited Edition dry-clutch and NEAS material, plus H-model interlock, carburetor, intake-pipe, front-axle, and wiring changes.

Suzuki wrote this manual primarily for experienced mechanics; apprentice and DIY mechanics will also need the measuring equipment and special tools specified for the work.

Engine Inspection and Reassembly

The base engine uses Suzuki’s TSCC combustion system and SACS cooling. The in-frame service list identifies components that can be removed without taking out the engine, helping plan access before disassembly. Compression diagnosis and symptom-based troubleshooting support decisions about further inspection or teardown.

Internal inspection covers the cylinder head, valves and guides, camshafts, cam-chain tensioner, cylinders, pistons and rings, connecting rods, and crankshaft-bearing selection. Transmission material includes countershaft and driveshaft disassembly, gearshift-fork inspection, and assembly reference views.

Reassembly covers crankcase sealing, oil-pump installation, the starter clutch and signal generator, piston and cylinder assembly, valve timing, and final checks. The camshaft-installation section warns that unevenly seating the journal holders can damage the cylinder-head or holder thrust surfaces.

Carburetors, Lubrication and Emissions

Fuel-system coverage explains the vacuum fuel cock and the slow, main, starter, float, and fuel circuits. Repair material reaches throttle-valve setup, diaphragm positioning, rack reassembly, and the relationship between needle-valve condition and fuel overflow.

Lubrication pages cover the oil filter, sump filter, relief valve, oil cooler, and causes of abnormal oil pressure. The Engine Lubrication System Chart and Cylinder Head Cooling System Chart show the separate oil paths.

U.S.-market material addresses federal emission-service requirements. California-specific pages add evaporative-emission components and canister hose routing.

Electrical Tests, Drawings and Workshop References

Charging-system service reaches the generator’s IC regulator, rectifier, rotor, stator, and brushes. Ignition checks use the pocket tester, electro tester, and ignitor checker; starter-motor inspection covers brushes, commutator, armature, and seals.

Main and variant-specific wiring diagrams accompany charging and starter circuit diagrams. Brake, clutch, and oil-cooler routing views support reinstallation, while exploded assemblies cover the engine, transmission, carburetors, wheels, brakes, and forks.

Factory tool references include carburetor balancer 09913-13121, compression gauge 09915-64510, ignitor checker 09930-70710, and fork oil-level gauge 09943-74111. Component-specific torque tables, wear limits, clearances, electrical test values, assembly precautions, and service data accompany the procedures.

Chassis Service and Coverage Limits

The maintenance chapter adds the factory schedule, lubrication points, drive-chain inspection and adjustment, chassis-fastener checks, and brake- and clutch-fluid bleeding. It also identifies approved fluids, sealants, and thread-locking materials.

Rear suspension and clutch master cylinder: The file jumps from printed chassis page 7-49 to Group 8; pages 7-50 through 7-65 are absent. Rear-suspension removal stops partway through, and the hydraulic clutch-master-cylinder repair chapter is outside this file. Front suspension, steering, wheel, tire, and brake repair are present.

Fuel-system repair requires ventilation and ignition-source control. The manual also provides bleeding precautions and warns that glycol-based brake and clutch fluid can damage paint and plastic.

Limited Edition and H-Model Differences

Limited Edition: The differences chapter documents the cable-operated dry clutch, magnesium clutch and sprocket covers, floating front brake discs, NEAS fork and relay tests, and suspension settings. Transmission ratios remain the same as the G model, while the countershaft, its left-side oil seal, and drive chain differ.

Dry-clutch precautions address engine-oil contamination of the drive and driven plates. The NEAS unit is treated as a replacement assembly and must not be disassembled.

H model: Combination-meter and side-stand/ignition-interlock material accompanies the carburetor and intake-pipe changes. The front axle increases from 15 mm to 17 mm, with corresponding bearings, spacers, axle nut, and speedometer gearbox changes.

The spare-crankcase appendix distinguishes early and late replacement cases and provides the matching crankshaft thrust-bearing selection data. This distinction matters when selecting parts and checking thrust clearance after a case replacement.

A Preview of Valve and Carburetor Setting Data

For G, H, and Limited Edition engines, the cold valve-clearance specification is 0.10–0.15 mm for both intake and exhaust valves.

Carburetor float-height inspection specifies 14.6 ± 1.0 mm with the carburetor inverted and the float arm just touching the needle valve, without compressing its spring.
