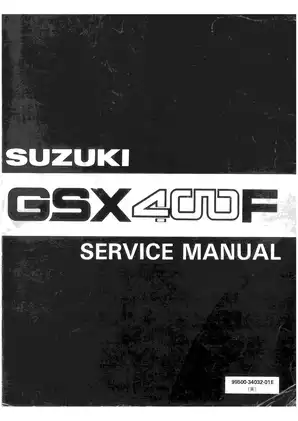

Suzuki Katana GSX400F 1981–1998 Factory Service Manual (P/N 99500-34032-01E)

Suzuki factory service manual for the Katana GSX400F family, P/N 99500-34032-01E, English-language 4th Edition, December 1983. Includes GSX400FX base coverage, the GSX400FZ model-difference supplement and GSX400FD service-data tables.

Printable PDF and Diagram Readability

Search, navigation and wiring detail: PDF text search is not available, and there are no embedded PDF bookmarks. Small labels in the checked wiring diagrams are readable when enlarged; sideways diagram pages benefit from rotation.

The ZIP download contains one 292-page printable PDF, including the 54-page GSX400FZ supplement and nine-page GSX400FD service-data section. Covers, introductory material, publication details and four blank pages are already included in the total.

Engine Overhaul, Carburetor Service and Anti-Dive Fork Work

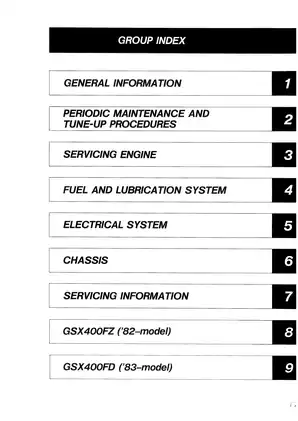

The following is a selected content overview, rather than a complete table of contents; additional topics include air-cleaner servicing and drive-chain inspection.

• Engine repair: Step-by-step engine removal, disassembly and reassembly, cylinder-head and valve service, camshaft inspection, cam-chain timing, and piston and crankshaft checks.

• Clutch and transmission: Clutch inspection, starter-clutch service, transmission shaft disassembly, shift-fork inspection, bearing selection and exploded transmission assemblies.

• Fuel and lubrication: Mikuni BS26SS carburetor separation, inspection, reassembly, float and fuel-level checks, throttle-valve setup, synchronization, lubrication routing and oil-pressure testing.

• Electrical diagnosis: Charging and transistorized-ignition tests, starter-motor and relay service, meter checks, switch continuity charts, and market-specific wiring diagrams.

• Brake service: Front hydraulic-brake overhaul, drum- and disc-type rear-brake configurations, caliper and master-cylinder inspection, pad replacement and circuit bleeding.

• Suspension and steering: Wheel-bearing service, telescopic-fork disassembly, oil-seal replacement, steering-head bearings, swingarm inspection, rear-suspension reassembly and FZ anti-dive inspection.

• Workshop references: Maintenance schedules, factory tool numbers, tightening tables, service data, and troubleshooting charts for the engine, carburetors, electrical system, battery, chassis and brakes.

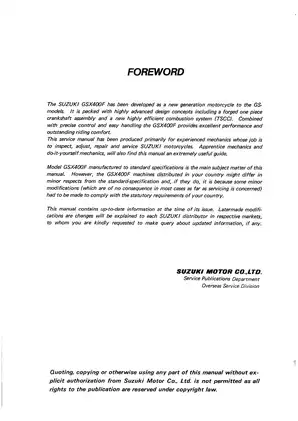

Written primarily for experienced Suzuki mechanics, the manual also addresses apprentice and DIY mechanics; internal overhaul and electrical testing call for the specified measuring equipment and service tools.

Base Procedures and Model-Specific Updates

The main sections apply to the 1981 GSX400FX configuration. The 1982 GSX400FZ supplement lists differences and refers back to Sections 1–7 for unchanged procedures; its revised parts, specifications and methods take precedence.

The 1983 GSX400FD section contains service-data tables, rather than another set of teardown chapters. Its tables cover the valve train, cylinders and pistons, crankshaft, oil pump, clutch, transmission, carburetors, electrical system, brakes, wheels and suspension.

The FZ material distinguishes early and late engine builds through effective engine numbers. Changes concern the rocker-arm shaft stopper, journal-bearing arrangement, oil-gallery plug locking plates, oil-pump fasteners and generator-rotor bolt. Revised oil-capacity components and the cylinder-base O-ring have their own change points, helping a shop select the correct parts and instructions before opening an engine.

The supplement also explains parts compatibility: the late rocker-arm shaft and stopper do not fit the early cylinder head. The oil pump is serviced as a replacement assembly, while the primary driven gear and spacer are supplied and fitted as a matched set.

Internal Engine Inspection and Assembly

Overhaul coverage extends to valve-guide replacement and seat servicing, automatic cam-chain-tensioner inspection, piston-ring checks, and connecting-rod and crankshaft bearing selection. TSCC Twin Swirl Combustion Chamber and squish-area section views explain the cylinder-head design, while an in-frame service chart identifies components removable without taking out the engine.

The camshaft section documents sprocket indexing and warns that uneven holder tightening can damage the cylinder head and holder thrust faces. The bearing update explains how a non-grooved shell installed in the lower crankcase can interrupt oil distribution and damage internal engine parts.

Referenced tooling includes compression gauge 09915-64510 with adapter 09915-63210, clutch sleeve-hub holder 09920-53710, and piston-ring holder components 09916-74520/09916-74530. The FZ rotor procedure identifies revised rotor holder 09930-44511.

Carburetor Circuits and Lubrication

Carburetor cross-sections explain diaphragm operation and the slow, main, starter and float circuits, alongside the vacuum-operated fuel cock. Synchronization instructions include calibration of carburetor balancer 09913-13121, connecting the adjustment procedure to the measuring equipment it requires.

The engine lubrication-flow schematic traces oil delivery through the bearings, valve gear and transmission. Oil-pressure testing and oil-pump replacement information accompany the lubrication service material.

Electrical Tests and Wiring References

Charging and ignition circuit diagrams support tests of the generator, regulator/rectifier, signal generator, transistor igniter and ignition coils. Starter coverage includes brush, commutator and armature inspection.

Combination-meter, fuel-meter and fuel-sender checks are treated separately, with additional checks for handlebar switches, the battery, lamps and the gear-position circuit. Wire and cable routing drawings accompany the export-market wiring diagrams.

Chassis Service and FZ Anti-Dive Limits

Exploded front-fork views support inspection of springs, tubes and sliding components; the manual identifies oil-seal installer 09940-50111. Steering-stem, wheel-bearing and swingarm procedures include installation details and related inspection limits.

FZ anti-dive oil-flow views explain the connection between braking pressure and fork damping. Inspection covers the modulator plunger, valve and seals; individual internal replacement parts are not provided for the plunger and valve assemblies.

The anti-dive unit shares the front-brake hydraulic circuit. The supplement emphasizes complete air bleeding because trapped air can reduce both braking performance and anti-dive operation.

Inspection Tables and Tightening References

Service data distinguishes standard dimensions from wear limits for clearances, runout, spring condition and bearing oil clearance. Further tables cover carburetor calibration, electrical output and resistance, brake dimensions, suspension data, fluid types and capacities.

Engine and chassis tightening tables are supplemented by general bolt-grade torque charts. These references support repair decisions based on measured condition rather than visual inspection alone.

Examples of Valve-Clearance and Charging Specifications

For the GSX400FX base model, the intake and exhaust valve-clearance specification is 0.08–0.13 mm with the engine cold.

The base charging-output test specifies 14–15 V DC at 5,000 rpm with a fully charged battery and the headlight on high beam.

The FZ service-data table changes regulated voltage to 13.5–16.0 V at 5,000 rpm for day and night operation, illustrating why the model-specific data must accompany the base test procedures.
