1996–2000 Suzuki RG150 E/ES Service Manual
170 Pages • 5.16 MB • Printable PDFs (ZIP Download)
Suzuki Models Covered & Key Technical Specifications
Models: RG150
Model Years: 1996–2000 (1996, 1997, 1998, 1999, 2000)
-
Engine: Two-stroke, water-cooled
-
Engine displacement: 148 cc
-
Bore and stroke: 61.00 mm x 50.60 mm
-
Carburetor: MIKUNI TM 28 TYPE SLINGSHOT
-
Transmission: 6-speed constant mesh
-
Dry mass: 128 kg
-
Fuel tank capacity: 14 L (including 3 L reserve)
-
Transmission oil capacity: 1050 ml
-
Coolant capacity: 1050 ml
-
Front fork oil capacity: 302 ml per leg
Suzuki Manual Features & Content Preview
Covers 1996–2000 Suzuki RG150 E/ES motorcycles with the 148cc water-cooled, reed-valve two-stroke engine. This Suzuki service manual documents maintenance, diagnosis, and repair of the engine, chassis, cooling, and electrical systems.
One English-language, 170-page PDF, supplied in a ZIP download.
-
Engine repair: Engine removal, complete disassembly, top-end rebuilds, piston and reed-valve inspection, crankshaft servicing, and exhaust power-valve repair.
-
Clutch and transmission: Clutch pack replacement, geartrain teardown, gearshift cam and fork inspection, and crank-balancer assembly.
-
Fuel and lubrication: Carburetor tuning, float-height adjustment, fuel-cock service, and CCI oil-pump adjustment, bleeding, and output testing.
-
Cooling system: Radiator and cap pressure tests, water-pump disassembly and seal replacement, coolant service, and water thermo-gauge testing.
-
Electrical diagnosis: Magneto pick-up coil and stator testing, CDI/actuator control-unit checks, regulator/rectifier diagnosis, and battery inspection.
-
Brakes and chassis: Front fork rebuilds, brake bleeding, caliper and master-cylinder repair, steering stem maintenance, and wheel-bearing and swingarm service.
-
Troubleshooting and diagrams: Symptom/cause/remedy charts, the RG150 E/ES wiring diagram, ignition and charging schematics, and wire, cable, and hose routing drawings.
Suited to mechanics with motorcycle overhaul experience and the measuring equipment needed for crankshaft alignment and internal engine inspection.
Maintenance and Engine Repair

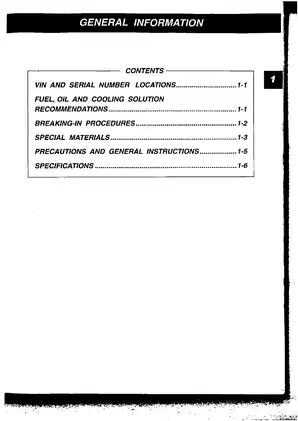

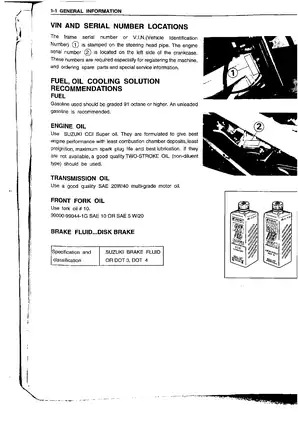

Early chapters handle workshop fundamentals, including VIN locations and breaking-in procedures. The schedule section outlines inspection intervals for the drive chain, brake fluid, and coolant system.
The engine chapter identifies components removable with the engine in the frame before covering full removal and teardown. Cylinder and exhaust decarbonization, piston-ring inspection, and crankshaft shim selection are documented alongside the assembly procedures.
The crankcase separating tool 09920-13120 is identified in the relevant procedures. A crankshaft installation warning explains how hammering the shaft into the crankcase can disturb its alignment.
Clutch and Transmission Inspection
Transmission cross-sections show gear, washer, and circlip positions. The repair instructions distinguish the three shift forks and show crank-balancer indexing. Clutch coverage includes plate wear and distortion, spring inspection, and release-bearing condition.
Carburetor, CCI Lubrication and Cooling
Fuel and oil delivery: Carburetor procedures address needle-valve wear, blocked passages, and float inspection. Oil-pump coverage includes output measurement with CCI oil gauge 09900-21602 and the relationship between throttle-cable and oil-pump adjustment. Carburetor specifications differ between the general-specification and service-data tables.
Cooling: A coolant-circulation diagram accompanies radiator testing, water-pump mechanical-seal service, and temperature-sender resistance checks. Troubleshooting covers both overheating and overcooling, including thermostat-related causes.
Ignition, Charging and Exhaust-Valve Controls
Electrical diagnostic tables cover the magneto pick-up coil and CDI unit, with terminal identification for the control unit. Separate charging checks address generator output and the regulator/rectifier. Together with the fault charts, these help narrow the circuit responsible for a no-spark or charging complaint before components are replaced.
The resistance tables specify Suzuki pocket tester 09900-25002; other meters can produce different readings. The exhaust-valve actuator instructions also identify the risk of internal gear damage during pulley-bolt removal or tightening.
Follow the manual's ventilation and fire precautions during fuel-system work and battery charging.
Forks, Brakes and Rear Suspension
Separate frame-cover removal pages distinguish the E and ES versions. Fork procedures cover seals, bushings, and oil-level setting; wheel sections explain bearing placement and wheel alignment during drive-chain adjustment. Fork-oil quantities differ between the specification tables and the fork procedure.
Rear suspension repair covers swingarm and cushion-linkage bearings, plus shock removal and inspection. The rear shock absorber is non-serviceable; internal shock overhaul is excluded.
Reference tables collect tightening torques, fluid capacities, wear limits, clearances, and electrical test specifications.
File Format and Readability
The total includes 157 numbered manual pages, eight section contents pages, one opening engine illustration, and four blank pages. All are contained in the single PDF; there are no separate supplements.
Text search and navigation: PDF text search and embedded bookmarks are unavailable. Navigation uses the printed section contents and PDF page controls; some printed cross-references are inconsistent.
Wiring readability: Small labels require enlargement. Some densely packed wire-color codes and switch markings remain difficult to read when enlarged.
