2002–2014 Suzuki RM85/L Owner's Service Manual (P/N 99011-02B79-01A)

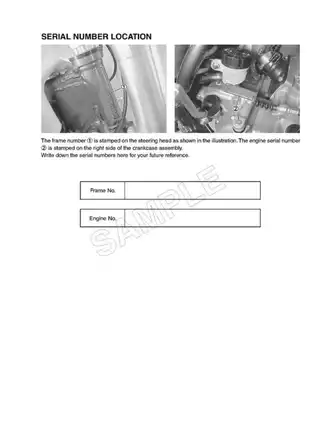

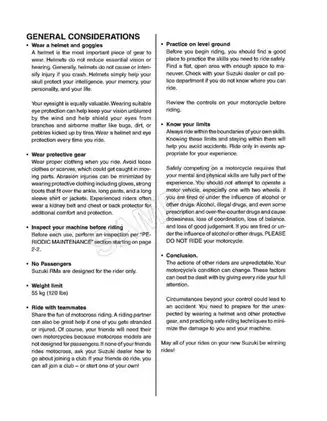

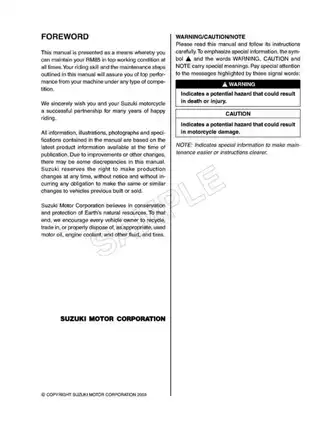

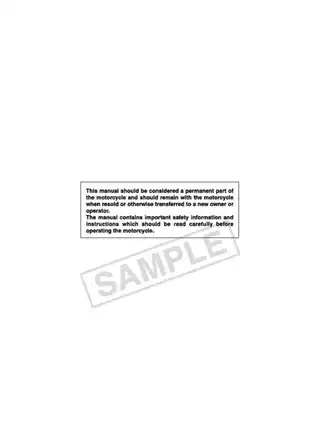

• 191-page PDF scan of Suzuki’s RM85/L Owner’s Service Manual, Part No. 99011-02B79-01A, K4 edition dated July 2003; the supplied pages carry a visible SAMPLE watermark throughout.
• Coverage is specific to the K4 (2004 model) RM85 and RM85L, including the standard-wheel and large-wheel differences in final drive, drive chain, tires, chassis dimensions, and rear-suspension setup.
• Engine repair sections cover removal and installation, cylinder/piston/exhaust-valve work, exhaust-valve governor service, clutch and kick-starter repair, gearshift linkage, crankcase separation, transmission inspection, and crankshaft reassembly.
• Fuel, cooling, and ignition coverage includes carburetor tuning by throttle range, carburetor and reed-valve service, radiator and water-pump repair, ignition peak-voltage testing, CDI/coil/stator checks, and magneto rotor/stator service.
• Chassis procedures include wheel bearings and brake discs, hydraulic brake bleeding and component overhaul, front-fork disassembly and oil-level setup, steering-bearing replacement, rear-shock oil service, swingarm work, and linkage-bearing repair.
• Reference material provides an ignition-circuit schematic, complaint/cause/remedy troubleshooting tables, component construction views, routing drawings, special-tool numbers, torque data, fluid capacities, adjustment specifications, and wear limits.

Model Coverage and Scope

Despite the Owner’s Service Manual title, this is not a basic operating handbook. The publication combines competition maintenance and machine setup with repair procedures that reach from pre-race inspection and periodic service to engine bottom-end work and suspension overhaul. Coverage is tied to the K4 publication rather than a blanket 2002–2014 model range.

The RM85 and RM85L are not treated as interchangeable chassis. Model-specific data distinguishes their final reduction, drive-chain specification, tire fitment, overall dimensions, rear-shock spring rate, spring preload, and rebound-damping setup. That separation matters when selecting parts or applying settings to the standard-wheel RM85 versus the large-wheel RM85L.

Technical Maintenance Overview

The engine chapters go well beyond top-end replacement. They document cylinder-head, cylinder, piston, piston-ring, exhaust-valve, and exhaust-valve-governor inspection and reassembly. Lower-end coverage includes primary-drive removal, crankcase separation, transmission removal, shift-fork and gear inspection, crankshaft checks, oil-seal and bearing replacement, and final crankcase assembly. Clutch plates, the clutch sleeve hub, kick-starter mechanism, and gearshift linkage each receive their own repair procedures.

Carburetor material explains how the main jet, jet needle, throttle-valve cutaway, slow jet, and air screw affect different throttle openings, then connects those principles to practical mixture diagnosis. Separate fuel-system procedures cover carburetor removal, disassembly, float and jet inspection, reassembly, and reed-valve service. The cooling chapter addresses coolant replacement, radiator-cap and hose checks, radiator removal, and water-pump repair.

Electrical coverage is focused on the motocross ignition system: magneto, CDI unit, ignition coil, engine-stop switch, and spark plug. Test sections include ignition peak-voltage checks, coil resistance, CDI inspection, stator-coil testing, and magneto rotor/stator removal and installation.

Brake coverage includes fluid replacement and air bleeding, pad and disc service, caliper disassembly and cleaning, master-cylinder repair, and rear-brake-pedal work. The suspension chapters cover fork compression and rebound adjustment, spring replacement, oil-level changes, symptom-based tuning charts, rear-shock sag and spring selection, and front-to-rear suspension balance. Rear-shock procedures extend into spring removal, oil replacement, disassembly, inspection, reassembly, gas charging, swingarm service, and linkage-bearing replacement.

Factory Specifications and Reference Data

The fork section has a clear limit: Suzuki says not to disassemble the damper-rod assembly, even though the chapter covers seals, bushings, spring, oil, and overall reassembly. Important cautions also call out the left-hand-thread primary driven gear nut, piston-ring end alignment at the locating pin during cylinder installation, and rear-linkage bolt orientation. Missing those details risks thread or piston-ring damage and can interfere with suspension movement or damage the linkage.

Key drawings include the cylinder/piston/exhaust-valve construction view, transmission/crankshaft layout, front-fork/steering and rear-suspension assembly views, the magneto-CDI ignition circuit, and wire/cable/hose routing sheets. Factory tool references include crankcase separating tool 09920-13120, crankshaft installer 09910-32812, and clutch sleeve hub holder 09920-53740. Fork and shock work calls out front fork assembling tool 09940-30250, front fork oil seal installer set 09940-52861, and rear shock absorber socket wrench 09941-53650.

Rear-shock repair involves a pressurized unit, and brake repair depends on correct fluid handling and complete bleeding. Leave those jobs to a qualified technician when the required tools or experience are not available.
