Suzuki VZ1600 Marauder Shop Manual 2004–2008 (P/N 99500-39261-03E)

This Suzuki factory service manual covers the VZ1600K4 and VZ1600K5, with market-specific effective frame numbers and component differences identified throughout the repair sections. The prepared-by page identifies P/N 99500-39261-03E, 2nd Ed. November 2004; the original cover carries 99500-39261-01E. Buyers with other model codes should confirm applicability before selecting this K4/K5 edition.

PDF Search, Bookmarks, and Diagram Detail

Search and viewing: The main text is searchable, and embedded bookmarks link to the chapters. Many diagram labels are outside the searchable text layer; small wiring labels require zooming. Pages carry SAMPLE watermarks. PDF p. 65 is labeled “Dummy Page” and contains no exploded-view illustration.

One printable English PDF is supplied in a ZIP download, with 619 pages total. This count already includes 16 front-matter pages, two cover pages, one imprint page, and the DFI placeholder page.

DFI Diagnosis, Engine Repair, and Shaft-Drive Service

The following selected contents outline the workshop coverage rather than reproduce the full table of contents. Additional topics include clean-air-system valve tests and automatic turn-signal canceling diagnosis.

• DFI diagnostics: Self-diagnosis, service-code reading and erasing, sensor and ECU tests, injector checks, fuel-pump diagnosis, and fuel-pressure and flow testing.
• Engine and transmission: Step-by-step procedures for engine removal, camshaft-chain service, cylinder-head and valve repair, crankcase assembly, crankshaft inspection, and transmission disassembly.
• Hydraulic clutch: Line bleeding, master- and slave-cylinder service, clutch removal and installation, inner-hub disassembly, plate inspection, and spring-plate gap adjustment.
• Shaft drive: Final gear case and front bevel-gear overhaul, propeller-shaft inspection, bearing-preload setup, backlash adjustment, and tooth-contact checks.
• Cooling system: Pressure testing, radiator-cap and thermostat checks, water-pump inspection, mechanical-seal replacement, coolant replacement, and air bleeding.
• Brakes and chassis: Caliper and master-cylinder overhaul, brake-line bleeding, wheel and bearing service, front-fork disassembly, rear shock adjustment, and steering-stem service.
• Electrical troubleshooting: Regional wiring diagrams, charging and ignition tests, starter-motor repair, interlock checks, connector references, and cable, wire, and hose routing.

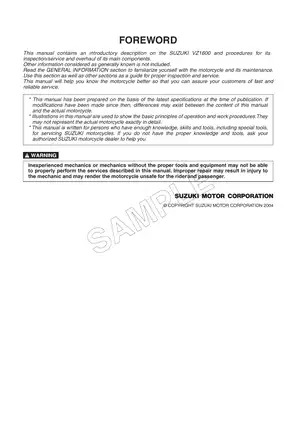

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners performing basic maintenance and repair who understand mechanical work, tool use, and workshop procedures.

DFI Fault Tracing and Throttle-Body Limits

The DFI section combines symptom-based troubleshooting with tests for inlet-air and atmospheric-pressure sensors, water- and inlet-air-temperature sensors, crankshaft sensors, the vehicle-down sensor, ISC valves, ECU power supplies, relays, and fuses. California evaporative-emission components have their own inspection coverage.

The diagnostic workflow helps distinguish fuel-delivery faults from electronic control problems before components are replaced. It also identifies faults that do not produce a service code, so an absent code is not treated as proof that every DFI component is working.

Throttle sensor: Coverage includes voltage and resistance tests, not sensor adjustment. The manual expressly prohibits removing or adjusting the factory-set sensor; a failed resistance test calls for replacement with the throttle body.

Top-End, Lubrication, and Internal Engine Work

Engine coverage extends to rocker cases, camshafts, the KACR automatic compression-release mechanism, compression testing, valve guides and seats, pistons, rings, cylinders, and exhaust components.

Because hydraulic lash adjusters maintain valve clearance, routine valve-clearance inspection and adjustment are not required. The manual instead covers HLA removal, air bleeding, inspection, and installation.

Deeper repair includes connecting-rod bearing selection, primary gears, the starter clutch, external shift mechanism, shift drum, transmission shafts, bearings, and oil seals. Lubrication procedures cover oil-pump and oil-line service, oil-pressure measurement, and relief-valve inspection.

The non-return cam-chain tensioner needs particular care: incorrect handling or crankshaft rotation with the tensioner removed can disturb cam timing and damage the valves.

Clutch Setup and Bevel-Gear Adjustment

Spring-plate gap measurement is tied to clutch behavior, including abrupt engine braking, rear-wheel hop, clutch slip, and a spongy or pulsating lever. Adjustment instructions distinguish plate selection from hydraulic-system faults.

The final-drive chapter provides shim selection, preload measurement, backlash checks, and tooth-contact illustrations for gear setup. These checks also apply when specified fasteners are loosened, even without replacing gears; excessive bearing preload can damage the bearings.

K4/K5 Chassis Differences

Separate front-brake views and pad-retention procedures distinguish K4 from K5 assemblies. Wheel-balance-weight designs and fitment also differ, and model-specific downtube fastener specifications continue into engine installation and frame service.

Rear suspension coverage includes air-pressure and rebound-damping adjustment, shock inspection, and swingarm bearings. During brake master-cylinder repair, the manual warns that removing the piston’s secondary cup damages it.

Brake and clutch hydraulic service, engine removal, and internal drivetrain repair require the proper tools and workshop knowledge. Improper repair can leave the motorcycle unsafe to operate.

Electrical Tests, Diagrams, and Special Tools

Electrical procedures cover alternator and regulator/rectifier testing, ignition-coil and crankshaft-sensor checks, starter-motor disassembly and inspection, starter-relay tests, and junction-box circuit checks.

References include the DFI Wiring Diagram, Coolant Flow Chart, Engine Oil Flow Chart, regional wiring diagrams for U.S./Canada, Australia, and other covered markets, Cable, Wire, and Hose Routing drawings, and bevel-gear tooth-contact illustrations.

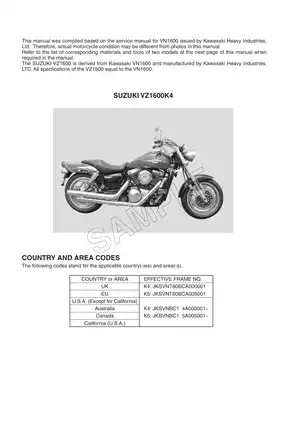

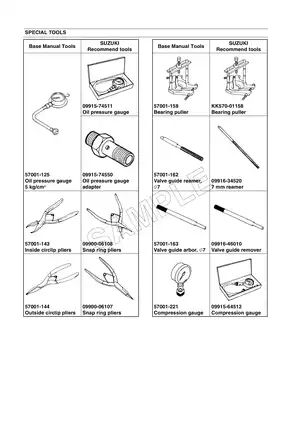

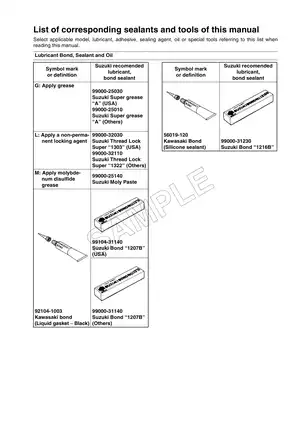

Suzuki explains that this publication was compiled from the Kawasaki VN1600 service manual and that some photographs may differ from the Suzuki motorcycle. The front matter cross-references Kawasaki sealants and tools to Suzuki-recommended equivalents, including the 09915-74511 oil pressure gauge, 09900-25008 multi circuit tester, and 09913-70210 bearing installer set.

Component-specific torque tables, wear limits, fluid specifications, and electrical test data accompany the procedures. Gear-ratio tables distinguish U.S./Canada/California specifications from other-market specifications.

Fuel-Pressure and Thermostat Specification Preview

The fuel-pressure inspection specifies 310 kPa immediately after ignition is switched on with the pump running, 280 kPa after the pump stops following its three-second run, and 260 kPa with the engine idling. These separate conditions support comparison of pump operation, residual pressure, and running pressure.

The thermostat inspection specifies a valve-opening temperature of 58–62°C, providing a component test reference alongside the cooling-system leak and radiator-cap checks.
