1984–1986 Yamaha XJ900N / XJ900 Fours Service Manual (TP-001)

This two-publication Yamaha service set pairs the full XJ900RK/33F base manual with the XJ900N 1984-1986/1FX Service Information supplement. The 1FX booklet is not a standalone engine-overhaul manual; it concentrates on the later model's changed components and specifications, while the 33F book supplies the complete repair procedures for the shared engine, driveline, chassis, and electrical systems.

• Coverage and document scope: Includes a 223-page XJ900RK/33F base publication and a 29-page XJ900N/1FX supplement, for 252 scanned PDF pages. The manuals identify frame and engine starting numbers 33F-000101 and 1FX-000101.
• Covers engine removal, cylinder-head and camshaft work, cam-chain service, valve and guide repair, piston and crankshaft inspection, clutch and oil-pump service, starter and generator work, transmission assembly, middle-gear adjustment, and shaft-drive repair.
• Details Mikuni carburetor disassembly and inspection, float and fuel-level checks, diaphragm and jet service, YICS-assisted carburetor synchronization, and air-cleaner and crankcase-ventilation service, with separate BS35 and BS36 specifications for the two model codes.
• Includes wheel and tubeless-tire service, hydraulic master-cylinder and caliper overhaul, brake bleeding, steering-head and swingarm work, final-drive inspection, the 33F air-assisted anti-dive fork, and the separate 1FX fork and steering procedures.
• Provides starting, charging, T.C.I. ignition, lighting, signal, self-canceling flasher, fuel-gauge, and oil-level diagnosis, supported by component tests, cable-routing views, exploded assemblies, and full model-specific wiring diagrams.

Model and Engine Differences

The model distinction is important before parts or specifications are selected. The 33F tables describe an 853 cc air-cooled DOHC four with four Mikuni BS35 carburetors, an air-assisted front fork, and a hydraulic anti-dive system linked to the front brake. The 1FX XJ900N supplement changes the engine specification to 891 cc, identifies four Mikuni BS36 carburetors, and adds its own piston, clutch, suspension, wheel, and electrical data. These differences affect top-end measurements, carburetor components, fork parts, and diagnostic values; the two sets of specifications should not be treated as interchangeable.

Engine, Carburetion, and Driveline Repair

The base manual follows the engine from removal through disassembly, inspection, reassembly, timing, and final adjustment. It covers the cylinder head, camshafts and caps, cam chain and automatic tensioner, valves, guides and seats, cylinders, pistons and rings, connecting rods, crankshaft bearings, clutch, oil pump and strainer, A.C. generator, starter drive, crankcases, five-speed transmission, middle gear and damper, and oil cooler. Inspection sections include wear limits, bearing-clearance checks with Plastigauge, gear-lash and shim calculations, tightening sequences, lubrication points, and component-specific torque tables.

Carburetor coverage goes beyond routine synchronization. The manual shows the constant-vacuum carburetor section, jet and passage locations, diaphragm and float inspection, fuel-level measurement, bank alignment, and reassembly requirements. Factory tool references include the YICS shut-off tool 90890-04068 and vacuum gauge 90890-03094 for synchronization, the tappet adjusting tool 90890-01245, clutch holding tool 90890-04086, and final-gear lash tool 90890-01230.

Several warnings are specific to these assemblies. Separating the carburetor bank without restoring alignment on a surface plate can leave the bodies misaligned because the support screws are secured with locking compound. During camshaft work, rotating the cams after the sprockets are released can bend valves, while uneven cam-cap tightening can damage the head, caps, or camshaft. The 1FX fork section also warns against bottoming the inner tube during separation because the taper spindle can be damaged.

Chassis, Electrical, and Reference Material

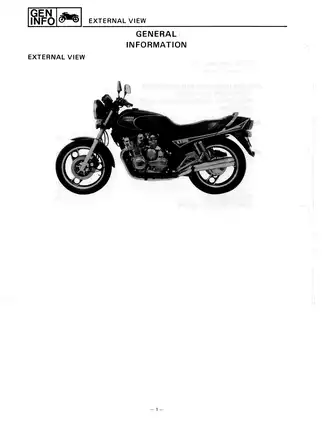

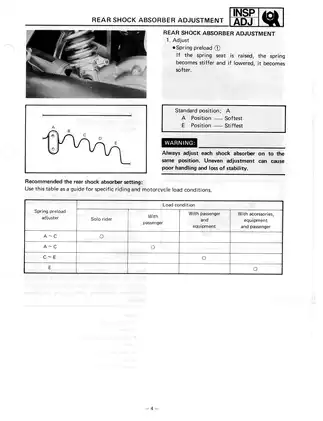

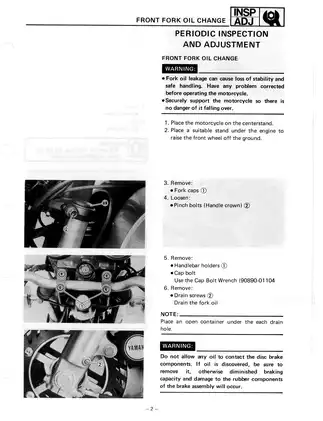

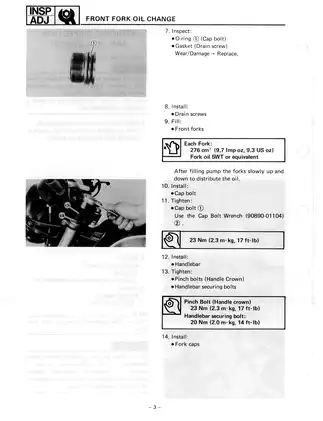

Chassis chapters cover front and rear wheels, wheel bearings, tubeless tires, brake discs and pads, opposed-piston calipers, front and rear master cylinders, hose inspection, system bleeding, front forks, anti-dive diagnosis, steering bearings, rear shocks, swingarm bearings, cables, final gear, drive shaft, and universal joint. The 1FX supplement adds front-fork oil service, complete fork removal and overhaul, steering-head removal and bearing inspection, rear-shock preload adjustment, and headlight replacement and aiming. Its fork work calls out the cap-bolt wrench, damper-rod holder, T-handle, and fork-seal driver by Yamaha tool number.

Electrical coverage includes the starter motor and starting-circuit cut-off relay, A.C. generator and rectifier/regulator, battery and fuse checks, T.C.I. ignition and pickup-coil testing, lighting, brake-light circuits, turn signals, the self-canceling system, fuel sender, oil-level switch, and switch continuity. Particularly useful illustrations include the carburetor section view, front-fork/anti-dive exploded view, starting-circuit cut-off function chart, A.C. generator and rectifier/regulator schematic, engine lubrication diagrams, and model-specific cable-routing and wiring sheets with color codes.

The specification appendices supply engine, chassis, and electrical test data; fluid and lubricant information; clearances and wear limits; gear backlash and shim data; suspension settings; general and assembly-specific torque tables; and exploded views for the major repair groups. Brake and anti-dive hydraulics, fuel-system work, spring-loaded forks, and engine removal require stable motorcycle support, clean fluid handling, and the workshop precautions printed in the manual.
