1998 Yamaha Bear Tracker 250 ATV Service Manual Set: YFM250XL(C), YFM250XN & YFM250XP (P/N LIT-11616-12-01)

This Yamaha Bear Tracker 250 service manual set combines the 1998 YFM250XL(C) Service Manual (P/N LIT-11616-12-01; manual number 4XE-F8197-10, first edition February 1998) with the YFM250XN and YFM250XP supplementary manuals. The supplements document model-specific changes and are used with the base manual; the XP supplement also calls for the XN supplement.

Supplied as one printable, English-language, 398-page PDF containing three publications:

The total includes all introductory and contents pages, three covers, and three publisher imprint pages.

• Engine overhaul: Engine removal and installation, cylinder-head and valve-gear repair, piston and crankshaft inspection, balancer assembly, oil-pump service, and recoil-starter repair.

• Mikuni carburetion: BST34 carburetor disassembly, diaphragm and starter-plunger inspection, float-height measurement, fuel-level adjustment, and revised supplementary jetting data.

• Clutches and shaft drive: Primary and secondary clutch inspection, transmission and shifter repair, universal-joint service, middle-gear shim selection, and final-drive backlash adjustment.

• Brakes and chassis: Drum-brake service, supplementary hydraulic front-brake repair and bleeding, steering-knuckle and tie-rod inspection, and front strut and rear swingarm service.

• Electrical diagnosis: C.D.I. and DC C.D.I. ignition tests, A.C. magneto charging checks, starter-interlock troubleshooting, lighting diagnosis, and model-specific wiring diagrams.

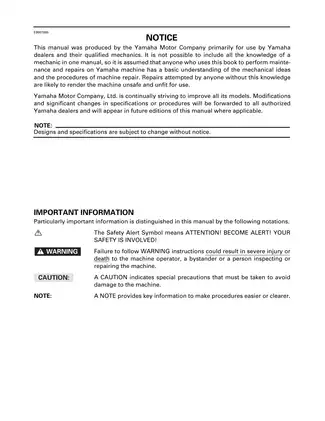

Written primarily for Yamaha dealers and their qualified mechanics, these publications assume basic mechanical knowledge and familiarity with machine maintenance and repair.

Engine Overhaul and Carburetor Service

The engine chapters detail valve-seat refacing and lapping, camshaft and rocker-arm inspection, timing-chain tensioner checks, and piston-to-cylinder wear assessment. Exploded cylinder-head and clutch views accompany the inspection limits and assembly notes.

Engine-removal notes distinguish top-end and clutch work that can be performed with the engine installed from work requiring engine removal. Lubrication diagrams and cable-routing drawings support reassembly.

The Mikuni section covers the vacuum piston, coasting-enricher diaphragm, needle valve, and float chamber. The XN supplement supplies revised carburetor identification and jetting data, so the base carburetor specifications are not the only reference in the set.

Clutch, Transmission, and Shaft-Drive Repair

Clutch coverage includes centrifugal-shoe and friction-plate inspection, one-way clutch checks, and release adjustment. Internal transmission inspection extends to shift forks, guide bars, and the shift drum.

The middle-gear chapter separates drive-pinion, driven-pinion, reverse-gear, and middle-shaft shim selection. Its component-replacement table identifies which shims need recalculation, helping match the required checks to the parts being replaced.

Universal-joint work is supported by the special-tool list, including holder YM-04062 and gear-lash measurement tool YM-01231. The text identifies left-hand threads on the reverse-gear securing nut and final-drive bearing retainer. Final-drive cautions explain how insufficient gear lash can damage gear teeth.

Brake and Suspension Differences

The base manual covers front and rear drum brakes. The XN supplement adds hydraulic front-disc brake procedures, including pad replacement, caliper and master-cylinder repair, and air bleeding. The XP supplement specifies dual front discs and adds front-brake and rear brake-light switch adjustment information.

Chassis coverage includes steering knuckles, tie-rods, toe-in adjustment, the strut front suspension, and the Monocross rear swingarm. Tire tables distinguish Carlisle Trail Wolf and Dunlop fitments; the XN supplement also lists Cheng Shin options.

Hydraulic-brake cautions explain how solvents can swell and distort internal seals. Follow the manual's workshop safety instructions, especially when supporting the ATV or servicing brakes, and consult a qualified technician if a procedure is beyond your experience.

Ignition, Charging, and Starting Circuits

The electrical sections provide system circuit diagrams and diagnostic charts for ignition, charging, starting, lighting, and indicator faults. The starter-interlock explanation helps distinguish an unmet starting condition from a starter-motor fault.

Separate XL, XN, and XP wiring diagrams show connector layouts and wire-color codes. The supplements address DC C.D.I. and brake-light circuit changes, while the base manual includes an ignition timing graph and starter-motor inspection data.

A Preview of Engine Test and Drivetrain Data

For the YFM250XL(C), standard compression pressure is 900 kPa at sea level, with the test specified at wide-open throttle and a fully charged battery. Cold intake valve clearance is 0.05–0.09 mm.

The final gear case specification lists 0.25 L for a periodic oil change. The engine torque table gives 50 Nm for the balancer drive gear nut, with a lock washer.

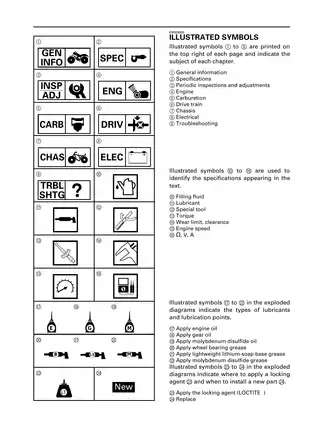

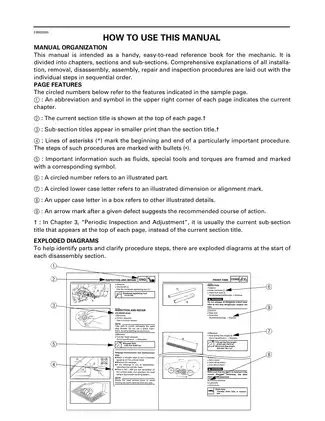

Searchable PDF and Publication Breakdown

Text search and wiring detail: Searchable text and embedded bookmarks cover the base manual and both supplements. Small connector labels and wire-color codes in the full wiring diagrams require zooming for comfortable reading.
