Suzuki DR-Z250 2001–2009 Service Manual (P/N 99500-42157-01E)

Suzuki’s DR-Z250 service manual, P/N 99500-42157-01E, is the 8th Edition, January 2009, covering the K1, K2, K3, K4, K5, K6, K7, and K9 model versions. It combines the original service chapters with market-specific material and later model updates.

PDF Search, Bookmarks, and Page Count

Finding procedures and reading diagrams: OCR text search is available, although recognition errors can affect searches for numbers and diagram labels. Embedded bookmarks link to the main chapters and model updates. Small wiring-diagram labels are readable when enlarged.

One printable English PDF contains 285 pages: 284 pages of Suzuki manual material and one appended supplemental link sheet, included in that total.

Engine Overhaul, Chassis Service, and Electrical Diagnosis

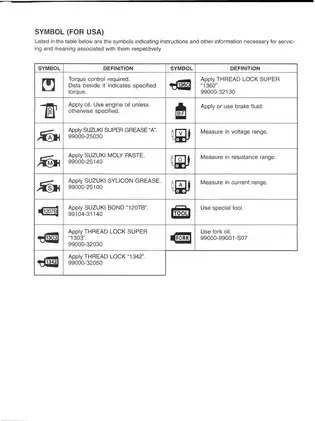

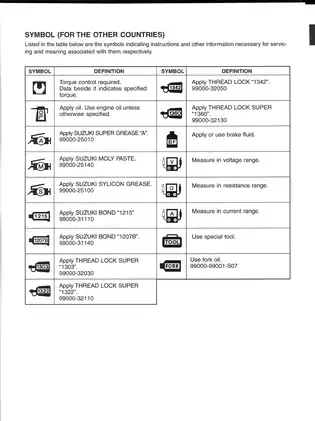

The following selected service topics outline the manual’s coverage rather than reproduce its full contents. Other procedures include air-cleaner maintenance and spark-arrester cleaning.

• Engine overhaul: Step-by-step engine removal, disassembly, reassembly, and installation, with cylinder-head service, piston and crankshaft inspection, balancer work, and crankcase-bearing replacement.

• Carburetor service: MIKUNI TM28SS and BSR32/BSR32SS construction, disassembly, cleaning, inspection, float adjustment, and remounting, supported by fuel-system checks.

• Clutch and transmission: Clutch-pack inspection and assembly, gearshift-shaft and fork inspection, and countershaft/driveshaft assembly with a transmission cross-sectional reference.

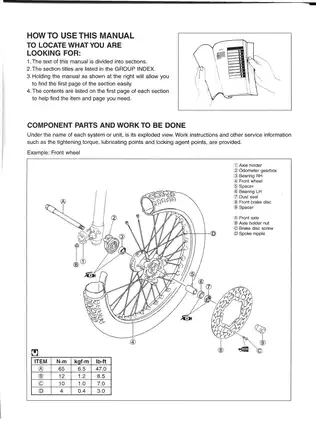

• Suspension and wheels: Front-fork disassembly and reassembly, suspension settings, steering and swingarm bearings, wheel inspection, and rear suspension removal and installation.

• Brake hydraulics: Front and rear caliper and master-cylinder disassembly, inspection, and reassembly, plus pad replacement, fluid replacement, and bleeding.

• Electrical troubleshooting: Charging, starter, CDI ignition, battery, relay, and switch tests, with wiring diagrams and E-24 side-stand/ignition interlock diagnosis.

• Maintenance and service data: Maintenance schedules, valve-clearance checks and shim selection, compression and oil-pressure tests, torque tables, capacities, wear limits, and electrical specifications.

Suzuki wrote this manual for readers with sufficient motorcycle-service knowledge, skills, and tools, including the specified special tools; it suits professional technicians and experienced owners equipped for advanced engine and chassis repair.

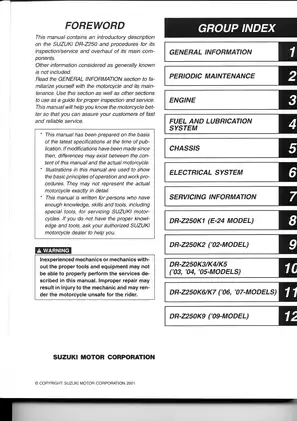

Model Updates and Market Differences

The core K1 chapters establish the inspection, maintenance, repair, and overhaul procedures. Later chapters provide changed specifications, service data, or procedures and refer back to the earlier material. There is no separate K8 model chapter.

Market codes identify E-03 as the United States except California, E-24 as Australia, E-28 as Canada, and E-33 as California. The K9 update covers E-24 only and supplies specifications rather than a stand-alone repair section.

Carburetor and road equipment: E-33 uses the BSR32 family, while the applicable E-03, E-24, and E-28 versions use the TM28/TM28SS family. The Australian material adds its own maintenance schedule, interlock and switch checks, electronic speedometer functions, wiring diagram, and cable/hose routing.

Engine Assembly and Workshop References

Valve train and internal inspection: Cylinder-head coverage includes valve-guide and valve-seat work, cam timing, camshaft journal checks, and automatic-decompression inspection. Cylinder, piston, connecting-rod, and crankshaft measurements support assessment of internal wear.

Starter-clutch and generator service, oil-pump installation, and lubrication-system references are also included. The manual treats the oil pump and camshaft/automatic-decompression assembly as units that must not be disassembled.

Assembly guidance: The transmission cross-sectional view establishes the placement and orientation of gears, washers, bushings, and circlips during reassembly. Camshaft journal holders are position-specific; uneven tightening can damage the cylinder head or holder thrust surfaces.

Special tools: References include crankcase separator/crankshaft remover 09920-13120, crankshaft installer 09910-32812, and valve-seat cutter set 09916-21111. Front-fork procedures identify inner-rod holder 09940-52841 and oil-level gauge 09943-74111.

Fault Tracing, Maintenance, and Chassis Limits

Troubleshooting charts connect starting, running, carburetor, charging, starter, and no-spark complaints with checks of the relevant systems. The electrical-component location view and wiring diagrams support circuit tracing; dedicated routing sheets show wire, cable, carburetor-vent, and brake-hose placement.

The engine lubrication-system chart and carburetor construction views provide additional system references. Maintenance coverage distinguishes the base hour-based schedule from E-24 distance/time intervals and includes drive-chain care, suspension checks, and chassis fastener inspection.

Rear shock absorber: Coverage includes removal, inspection, replacement, spring and damping adjustments, and disposal precautions. The manual explicitly identifies the shock absorber as non-serviceable internally.

The brake sections warn that mixing incompatible brake-fluid types can seriously damage the system. Follow the factory safety precautions when working around gasoline, hot engine components, electrical tests on a running engine, or opened brake circuits.

A Preview of Valve-Clearance and Charging Specifications

For the DR-Z250 valve check, the specified clearances with the engine cold and the piston at compression-stroke TDC are 0.10–0.20 mm intake and 0.20–0.30 mm exhaust. The shim-selection tables relate measured clearance to replacement shim thickness.

The charging-system check specifies 14.0–15.5 V across the battery terminals at 5,000 rpm with a fully charged battery. Generator and regulator/rectifier tests accompany the charging diagnosis.
