Can-Am DS 450 EFI 2009 Operator's Guide (P/N 708 200 117)
144 Pages • 1 Printable PDF (English) • Download
Can-Am Models Covered & Key Technical Specifications
Model: DS 450 EFI
Model Year: 2009
-
Engine displacement: 449.3 cc (27.42 cu. in)
-
Bore: 97 mm (3.82 in)
-
Stroke: 60.8 mm
-
Max engine RPM limiter: 10,200 RPM
-
Fuel tank capacity: 11.5 L (3 U.S. gal)
-
Front tires: 21 x 7R-10
-
Rear tires: 20 x 10R-9
Can-Am Manual Features & Selected Content Preview

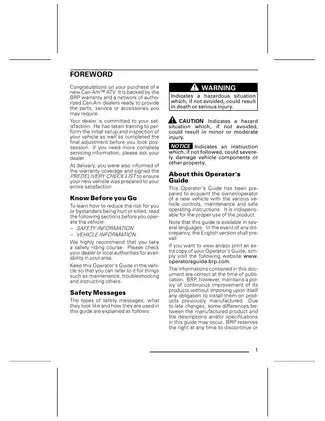

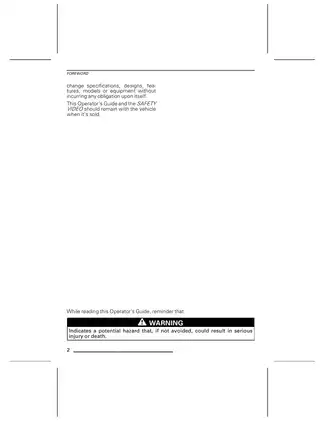

BRP's original Operator's Guide for the 2009 Can-Am DS 450 EFI sport ATV (P/N 708 200 117, copyright 2008) covers safe operation, suspension setup, and owner-level maintenance.
PDF Search, Bookmarks, and Page Count
Finding sections and procedures: Search the main text or use the embedded bookmarks to jump to riding information, maintenance procedures, specifications, and troubleshooting. Cover text and some form labels need to be read on the page.
The download is one printable English PDF with 144 pages, including the covers, warranty information, and owner forms.
Riding, Suspension Setup, and Routine Service
These selected topics show what the guide covers. Other sections address storage, preseason preparation, and regional warranty terms.
-
Riding and transport: Pre-ride inspection, primary controls, break-in, starting, five-speed shifting, shutdown, post-ride care, rollover and water-immersion response, and transport tie-down locations.
-
Front and rear suspension: Spring preload, compression and rebound damping, factory baseline settings, and the requirement to keep both front shocks matched.
-
Engine and cooling maintenance: Illustrated procedures for oil and filter replacement, oil-tank strainer cleaning, coolant replacement, foam air-filter care, spark-arrester cleaning, and spark-plug installation.
-
Controls and chassis maintenance: Clutch and throttle adjustment, O-ring chain inspection and lubrication, eccentric rear-axle chain adjustment, sprocket and slider checks, wheel and axle inspection, suspension lubrication, and hydraulic brake checks.
-
Electrical service: Battery service, fuse locations and ratings, bulb replacement, and headlight aiming.
-
Maintenance planning and troubleshooting: Periodic charts distinguish owner tasks from dealer work. Symptom-based checks cover starting, engine performance, shifting, and check-engine warnings.
BRP prepared the guide for owners and operators, with basic maintenance procedures for those who have the necessary mechanical skills and tools.
Controls and Riding Safety

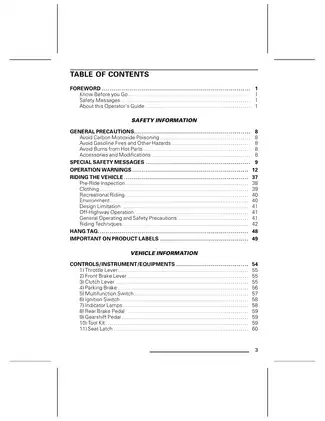

The controls section identifies the throttle, front and rear brakes, clutch, parking brake, multifunction and ignition switches, indicator lamps, gearshift pedal, supplied tool kit, and seat latch. The guide also covers fuel selection, safe refueling, and access under the seat.

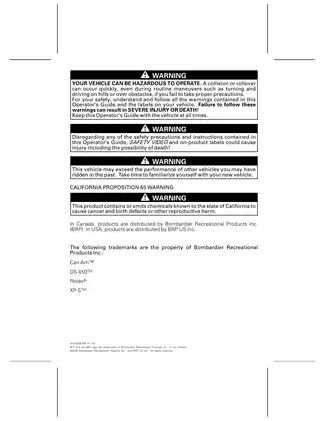

The safety chapters cover single-rider, off-road use, the recommended minimum operator age, protective equipment, and riding on hills and uneven terrain. They also address rollover and collision risks, fuel and fire hazards, and burns from hot components.
Break-In and Suspension Baselines
The guide specifies a 10-hour break-in before sustained full-throttle operation. It calls for the initial engine oil and filter change after three fuel tanks or five riding hours, whichever comes first, and recommends a dealer inspection at 10 hours or 400 km, whichever comes first. The dry-sump system uses a shared oil supply for the engine and transmission, including the wet clutch.
The suspension section explains how front and rear settings interact. Factory spring lengths and damping references give owners a baseline when returning the shocks to their original settings. Unequal front-shock settings can compromise handling and stability. The guide warns that the front shocks are pressurized and should remain assembled.
Maintenance References and Dealer Service
The specification tables identify the single-cylinder BRP Rotax DOHC four-valve engine, electronic fuel injection, liquid cooling, and dry-sump lubrication. They also cover the five-speed constant-mesh transmission, multi-disc wet clutch, chain-driven solid rear axle, double A-arm front suspension, rear swing arm, HPG shocks, and hydraulic disc brakes.
Reference tables give approved oil, coolant, premium fuel, and brake-fluid requirements, along with fluid capacities, electrical ratings, spark-plug data, brake wear limits, tire pressures, steering geometry, dimensions, weights, load limits, and component-specific torque figures.
Illustrations locate the oil-tank strainer and filter assembly, clutch-cover adjuster, throttle-cable lubricator connection, eccentric rear-axle adjuster, and VIN and engine identification labels. The guide identifies the supplied clutch-adjustment tool P/N 529 035 081 and cable lubricator P/N 529 035 738. It warns that an overly tight clutch-release adjustment can wear the clutch discs prematurely and that pressure washing or gasoline can damage the drive-chain O-rings and lead to early chain failure.
The periodic charts assign valve adjustment, throttle-body service, cooling and fuel-system pressure tests, fuel-pump pressure testing, EMS fault-code reading, ECM connector inspection, and front-wheel alignment to dealer service. BRP also directs owners to an authorized Can-Am dealer for brake-fluid replacement and brake repairs.
Troubleshooting covers preliminary checks for no-crank and no-start conditions, power loss, overheating, backfire or misfire, unusual engine noise, poor shifting, and check-engine or limp-home warnings. Internal engine and transmission repair, shock disassembly, and advanced electrical diagnosis requiring EFI/ECM tests, wiring diagrams, or connector pinouts require separate service documentation.
Free-Play Specifications at a Glance
The clutch section gives a nominal clutch-lever free play of 10–15 mm. The throttle section specifies 2–4 mm measured at the tip of the throttle lever.
For the eccentric rear-axle adjustment, the drive-chain section specifies 22 mm of free play midway between the sprockets, with the rider or equivalent weight on the ATV, on level ground, and with the transmission in neutral.
