Yamaha YZF-R1 YZFR1Y(C) 2009 Service Manual (P/N LIT-11616-22-78)

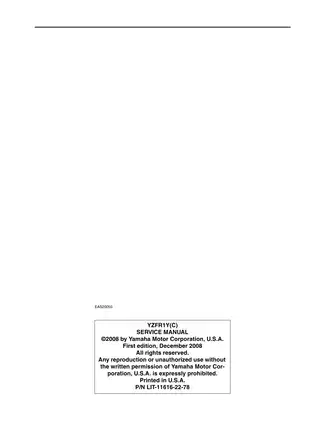

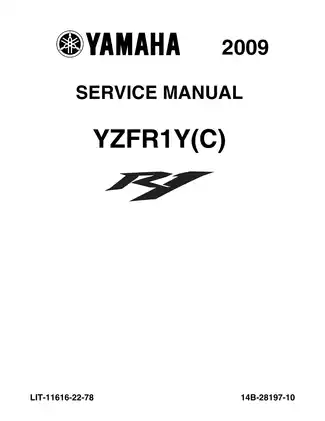

This Yamaha factory service manual covers the 2009 YZF-R1, identified as YZFR1Y(C), including USA variants 14B4/14B7 and California variants 14B5/14B8. This is the first edition, December 2008, P/N LIT-11616-22-78; the original cover also carries Yamaha manual number 14B-28197-10.

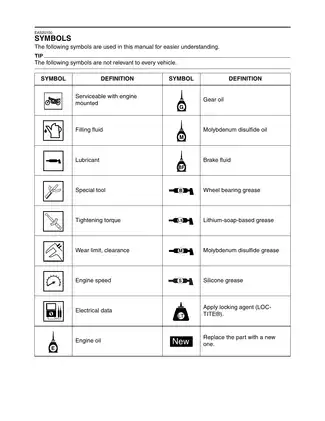

Service Text, Bookmarks and Wiring Sheets

Search and diagram detail: Service text supports PDF text search, and embedded bookmarks lead to chapters, individual service sections, and the wiring diagram. Small connector labels and wire codes in the checked schematics are clear when enlarged, but diagram labels are not searchable.

Supplied as one 526-page printable PDF in English. The total includes the original cover and front matter, five blank pages, the rear cover, and two large-format wiring sheets showing monochrome and color versions.

Engine, Chassis and Fuel-Injection Service

The following highlights are a selection of the manual’s contents. Other covered topics include rider-footrest adjustment and headlight-beam adjustment.

• Maintenance and adjustments: Valve-clearance adjustment, valve-pad selection, throttle-body synchronization, hydraulic brake bleeding, and periodic maintenance charts.

• Engine repair: Step-by-step engine removal, camshaft installation, cylinder-head service, piston inspection, and crankshaft and balancer-shaft checks.

• Clutch and transmission: Clutch disassembly, friction-plate inspection, clutch assembly-width adjustment, shift-fork and shift-drum checks, and gearbox reassembly.

• Chassis and brakes: Brake-caliper and master-cylinder service, front fork leg disassembly, steering-head inspection, swingarm service, and drive-chain replacement.

• Cooling system: Radiator-cap and system pressure tests, thermostat testing, oil-cooler service, and water-pump disassembly and seal replacement.

• Fuel and intake: Fuel-pump removal, fuel-pressure testing, primary and secondary injector checks, and YCC-T throttle and YCC-I intake-system procedures.

• Electrical diagnosis: Ignition, starting, and charging circuit diagrams, ECU fault-code charts, sensor checks, actuator tests, and system-specific troubleshooting.

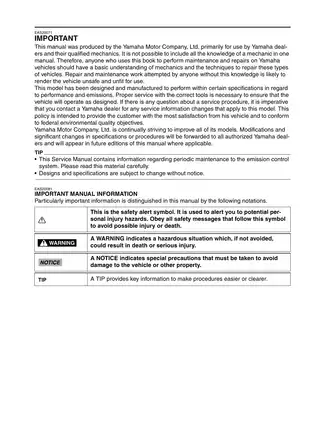

Written primarily for Yamaha dealers and qualified mechanics, this manual assumes a working knowledge of motorcycle mechanics and the appropriate service tools.

Engine Internals and Assembly References

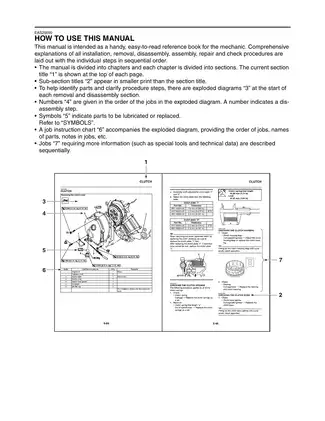

Exploded-view diagrams assist with component identification during service. Job-order tables identify parts and assembly requirements, while the crankshaft and connecting-rod sections explain Plastigauge clearance checks and color-coded bearing selection.

The valve-seat instructions require replacement of titanium intake valves used for lapping. Connecting-rod procedures specify new bolts and replacement after over-tightening; incorrect big-end-bearing placement can cause engine damage.

The transmission section goes beyond removal diagrams, covering shaft runout, gear-dog condition, gear engagement, and the installation positions of shift forks and retaining hardware.

Fork, Brake and Cooling Work

Front fork assembly includes damper bleeding and oil-level checks, with the required tools identified by name and part number, including fork spring compressor YM-01441. Steering-head procedures cover bearing inspection and adjustment, supported by cable routing diagrams for reassembly.

Rear shock coverage addresses removal, inspection, and replacement of the assembly. The manual warns against opening the pressurized shock; it should not be treated as an internal shock-rebuilding guide.

The water-pump section identifies seal installation requirements and dedicated tools, including water pump seal installer YM-33221-A. Cooling system diagrams and the engine oil lubrication chart show the relevant flow paths alongside component inspection and leak-testing information.

YCC-T, YCC-I and Electrical Fault Isolation

Yamaha Chip Controlled Throttle (YCC-T) and Yamaha Chip Controlled Intake (YCC-I) are explained through system and control outlines. Service coverage extends to throttle and accelerator position-sensor adjustment and intake-funnel actuation checks. A California-only rollover-valve check is identified separately.

ECU troubleshooting tables connect fault codes with symptoms, fail-safe behavior, probable causes, electrical checks, and recovery confirmation. This lets a technician compare a reported fault with connector, wiring-continuity, and component tests before selecting a repair.

Ignition and starting-system circuit diagrams also explain the sidestand and starting interlocks. Component tests supply the sensor voltage, resistance, and operating references needed for circuit diagnosis.

Always verify your diagnostic approach and consult a certified Yamaha technician before major mechanical work, particularly on brake systems and pressurized suspension components.

Selected Compression, Valve-Clearance and Torque Data

The engine specification table lists standard compression pressure at sea level as 1480 kPa at 350 r/min. Cold intake valve clearance is 0.11–0.20 mm, with valve-pad selection and clearance rechecking covered in the maintenance chapter.

Torque-table examples include 43 Nm for the engine oil drain bolt and 115 Nm for the clutch boss nut. The clutch installation section also specifies thread lubrication and staking alongside the tightening requirement.
