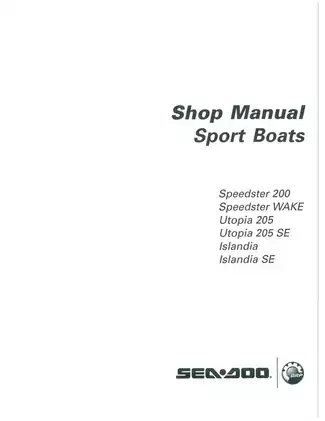

Sea-Doo Speedster, Utopia & Islandia 2006 Jet Boat Shop Manual (P/N 219 100 246)

The 2006 Sea-Doo Sport Boats Shop Manual (P/N 219 100 246) covers Speedster 200, Speedster WAKE, Utopia 205, Utopia 205 SE, Islandia and Islandia SE, including the listed tower variants. Engine procedures apply to configuration B; configuration A requires the separate Sport Boats Vehicle Shop Manual and 1503 Engine Shop Manual.

PDF Search, Diagram Detail and Page Count

Search and navigation: Text search is partial, with gaps across propulsion, steering, controls and Islandia hull/body sections; embedded PDF bookmarks are absent. Small circuit labels require zooming, and some connector-service pages appear out of sequence near the end.

One printable, English-language PDF contains 469 pages, including 23 cover and introductory pages, 21 additional blank pages and three Notes pages.

Engine, Jet Pump and Boat-System Service

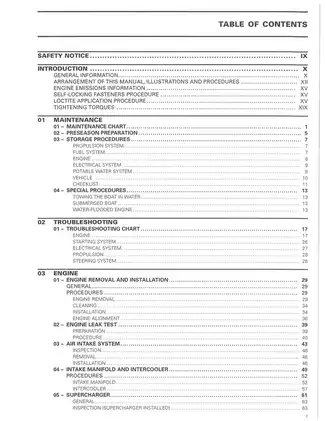

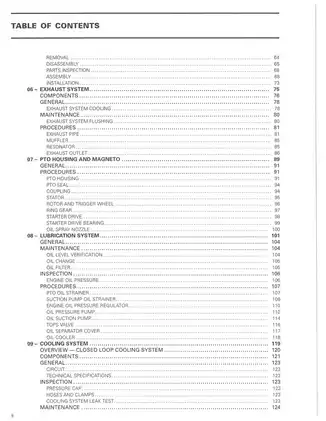

The following selected topics highlight the workshop coverage; other included subjects range from preseason preparation to gelcoat repair.

• Engine repair: Naturally Aspirated and Supercharged Intercooled 1503 engine removal, alignment, leak testing, cylinder-head and cylinder-block repair, and supercharger clutch service.

• Cooling and lubrication: Coolant replacement, cooling-circuit leak testing, water-pump and thermostat service, oil-pressure checks, and oil-pump inspection.

• Fuel system: Fuel-system leak tests, pump-pressure diagnosis, tank and pump removal, fuel-filter service, and hose and clamp replacement.

• EMS and electrical: B.U.D.S. fault diagnosis, DESS key programming, ECM replacement, and sensor, charging-system and starting-system tests.

• Propulsion: Step-by-step jet-pump disassembly, wear-ring replacement, impeller shaft and bearing installation, and drive-shaft and carbon-ring service.

• Steering and controls: Steering alignment, reverse-gate and cable service, model-specific throttle/shifter controllers, and Inlet Clearance System (ICS) electrical tests.

• Hull and onboard equipment: Scupper valves, bilge-pump and deck-drain arrangements, hull fittings, and the Islandia potable water system.

Written primarily for sport boat mechanical technicians already familiar with BRP service procedures, this manual assumes access to the specified hand tools and special service tools.

Internal Engine Repair and Special Procedures

Cylinder-head and cylinder-block chapters cover camshaft timing, valve and guide inspection, piston-ring fit, crankshaft bearings and balancer-shaft clearances. The valvetrain uses hydraulic lifters with no valve-clearance adjustment. Tool references include camshaft locking tool P/N 529 035 839.

The supercharger chapter covers clutch-component inspection, disassembly and reassembly, with separate new-component dimensions and service limits. Assembly notes specify bearing-cage orientation and warn that transmitting installation force through the bearing balls shortens bearing life.

Maintenance charts and storage procedures support seasonal service planning. Special procedures include step-by-step instructions for treating water-contaminated engine oil and carrying out the water-flooded engine boil-out procedure.

Cooling, Lubrication and Fuel Diagnosis

The “Overview — Closed Loop Cooling System” illustration traces the relationship between the water pump, thermostat, heat exchanger and oil cooler. Related procedures cover rotary seals, while lubrication sections extend to the PTO housing, oil strainers and pressure-regulating components.

The “Fuel Pump Diagnostic Flow Chart” connects pressure behavior with possible fuel-rail, injector, regulator and pump check-valve faults. This gives technicians a way to compare test results with specific fault branches before choosing the next inspection.

Exhaust installation receives separate attention: strain at the flexible joint can cause bellows failure.

B.U.D.S., DESS and Electrical Fault Tracing

The “Engine Management System Flow Chart” and ECM terminal-identification views support circuit tracing alongside fault-code and monitoring-beeper tables. B.U.D.S. procedures cover the closed-throttle and idle-actuator reset, component activation and replacement-ECM setup.

The communication-tool section explains MPI and MPI-2 connections and the equipment needed for different diagnostic tasks. Charging-system tests distinguish rectifier/regulator checks from stator tests; starting-system material includes separate left- and right-engine neutral-switch circuits.

Wiring coverage: System circuit diagrams are included, such as the “Inlet Clearance System Electrical Diagram,” but the complete boat wiring diagrams referenced at the end of the manual are absent from this PDF.

Jet Pump, Controls and Islandia Water Equipment

Impeller-tool tables distinguish Speedster 430 HP applications from the naturally aspirated boats. Pump-service instructions include seal and bearing installation and leak testing, with exploded views showing the assembly relationships.

Separate throttle/shifter-controller sections address Islandia, Speedster and Utopia arrangements. Islandia water-system coverage extends to the main and fountain pumps, filter cleaning, disinfection and pressure testing.

For engine repairs, follow the manual’s battery-isolation precautions; fuel-system work requires adequate ventilation and control of ignition sources.

Supercharger and Exhaust Specification Preview

For the supercharged intercooled Speedster engines, the clutch slipping-moment table lists 7–12 N·m for a new supercharger and 5–10 N·m after initial break-in. These are clutch inspection specifications, separate from assembly-fastener torques.

For exhaust installation, the manual specifies a maximum gap of 0.5 mm all around between the exhaust-pipe flange and engine manifold, alongside its discussion of alignment and flexible-joint loading.
