2010 Sea-Doo 150, 180, 200, 210 & 230 Series Sport Boats Shop Manual (P/N 219 100 439)

This BRP shop manual (P/N 219 100 439) covers the 2010 Sea-Doo 150, 180, 200, 210 and 230 Series Sport Boats, including the Speedster, Challenger and Wake variants listed above. It details inspection procedures and technical baselines for engine, propulsion and hull repair, with model-specific configurations identified throughout.

PDF Search, Diagram Detail and Page Coverage

Search and navigation: The main chapters have searchable OCR text, although recognition errors can affect individual terms. There are no embedded PDF bookmarks. Small wire codes, connector numbers and schematic labels in the checked diagrams are best read with zoom.

Missing pages: Printed pages 58–59 in the intake manifold/215-engine intercooler section, 456–457 in the 200-series body section, and 556–557 in the 200/210-series technical specifications are absent. The intercooler leak-test procedure starts on printed page 57 but its continuation is missing.

One printable 604-page PDF in English, including the original covers and front matter, a notes page and 19 retained blank pages.

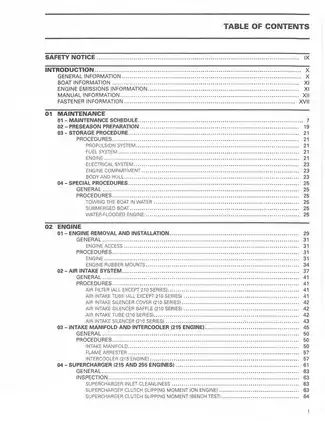

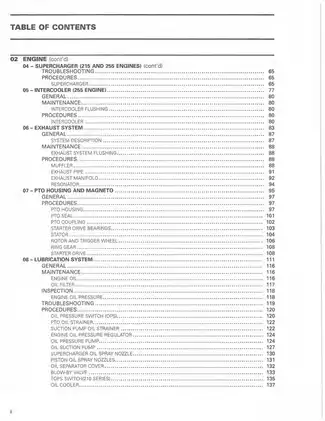

Engine Overhaul, Electronic Diagnosis and Jet-Drive Service

The following selected coverage highlights outline the main workshop areas. Additional topics include preseason preparation and procedures for a submerged boat or water-flooded engine.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head service, timing-chain replacement, piston and connecting-rod work, and crankshaft and balancer-shaft inspection.
• Intake and supercharger: Air-intake service, supercharger clutch slip testing on the engine and bench, supercharger disassembly and rebuilding, and separate intercooler sections.
• Lubrication and cooling: Oil-pressure diagnosis, pump and regulator inspection, cooling-system leak testing, thermostat checks, rotary-seal replacement and heat-exchanger service.
• Electronic diagnostics: B.U.D.S. connection troubleshooting, fault-code tables, CAN communication checks, ECM replacement procedures and model-specific D.E.S.S. key programming.
• Fuel injection and iTC: Injector operation and resistance tests, fuel-pump pressure testing, sensor checks, closed-throttle resets and 210-series throttle-accelerator-sensor adjustment.
• Jet drive and controls: Impeller and wear-ring replacement, pump bearing service, drive-shaft and carbon-ring procedures, reverse-cable adjustment and steering alignment.
• Body and hull: Series-specific assembly illustrations, windshield service, retractable-windshield motor testing, Wake ballast-bag replacement and fiberglass/gelcoat repair.

Written for mechanical technicians already familiar with BRP sport-boat service procedures, this manual assumes the specified hand tools and special service equipment.

Engine Inspection and Rebuild Detail

The internal engine chapters distinguish new-part dimensions from service limits for valve guides, pistons, rings, crankshaft bearings and other wear points. Engine leak-down testing includes a diagnostic chart that relates leakage locations to possible faults.

Engine installation includes alignment checks and model-specific shim information. The procedure identifies the alignment shaft, P/N 295 000 141, and shaft adapter, P/N 529 035 719, among the required alignment tools.

Supercharger coverage extends to clutch components, bearings and assembly checks. The lubrication chapters address oil-pump rotor clearances and pressure-regulator spring inspection, alongside the Engine Lubrication Circuit illustrations.

Cooling, Exhaust and Seal Service

The cooling section separates the ride-plate heat exchanger used on the 150 and 180 Series from the separate heat exchanger fitted to the 200, 210 and 230 Series. Exhaust coverage includes flushing, muffler and manifold inspection, and pipe installation.

The rotary-seal instructions identify the ceramic component that can be damaged by hammer installation. Drive-shaft installation illustrations also show how incorrect PTO-seal positioning can cause contact with the crankshaft splines and an oil leak.

Engine lifting, pressurized fuel and moving throttle plates require the safety precautions specified for the relevant procedure.

B.U.D.S., Fuel Injection and Electrical Fault Tracing

Fault-code tables connect reported faults with possible causes and service actions. Together with CAN continuity checks, they support fault isolation before an electronic module is condemned. Communication procedures use B.U.D.S. and the MPI-2 interface, P/N 529 036 018.

The 210 Series has separate iTC, ECM and throttle-body procedures. Its electric throttle actuator and throttle-position sensor are integral to the throttle body and cannot be replaced separately. D.E.S.S. programming applies to the other covered series.

Electrical illustrations include separate Engine Management Schematics, series-specific CAN Diagrams, connector pinout views and retractable-windshield switch diagrams. Deutsch, Packard, Kostal, Molex, Delphi and Furukawa connector servicing is described.

The full-boat wiring diagrams referenced as inserts in the original back-cover pocket are not included in this PDF; the system schematics and connector illustrations remain available.

Jet-Pump, Steering and Hull Work

Jet-pump inspection connects impeller condition, wear-ring clearance, shaft play and leak testing with pump service decisions. The Jet Pump Main Components view identifies the assemblies before the removal and bearing-replacement procedures.

Steering coverage distinguishes single-nozzle adjustment from twin-nozzle alignment. The body and hull chapters add windshield mechanisms, inlet grates, ride plates, jet-pump supports and ballast-bag procedures for the Wake models.

Preview of Fuel-Pressure and Jet-Pump Inspection Data

For the naturally aspirated 150 Speedster and 230 Challenger SP, the fuel-pump test specifies 290–310 kPa (42–45 PSI) when the electrical system is activated. Other covered models use 386–414 kPa (56–60 PSI). These figures accompany checks of pump delivery, pressure regulation and pressure retention.

The jet-pump inspection section gives a maximum impeller-to-wear-ring clearance of 0.35 mm (.014 in) for all covered models, measured between the blade tip and wear ring at the center of each blade.
