Sea-Doo Sportster 4-TEC & Challenger 180 Service Manual – 2006 (P/N lmr2005-039)

This Sea-Doo shop manual covers the 2006 Sportster 4-TEC and Challenger 180 series, including the naturally aspirated, supercharged and supercharged intercooled configurations identified in the model list. The introduction carries document code lmr2005-039.

Bookmarks and Multi-Page Wiring Diagrams

Search and diagram detail: PDF text search is not available. Embedded bookmarks cover the main sections and selected subsections. Small wiring labels require zooming, and the large model-specific wiring diagrams are divided across multiple pages.

One printable English-language PDF contains 311 pages total, including two cover/title pages and 24 pages of wiring-diagram sections. These pages are already included in the total.

Jet Pump Service and 4-TEC Diagnostics

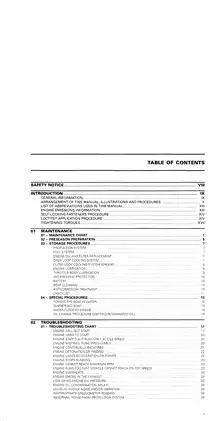

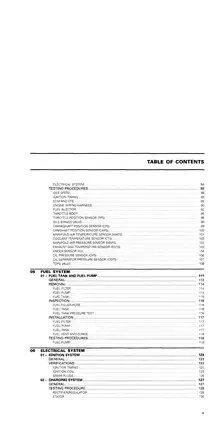

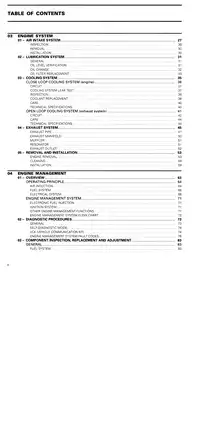

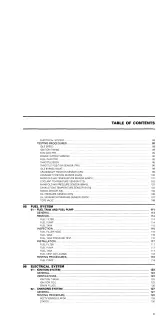

These selected coverage highlights show the main workshop content rather than the complete table of contents. Further topics include decal replacement and vinyl-care tables.

• Engine installation: Engine removal and reinstallation, engine/jet-pump alignment, air-intake inspection, and exhaust-component removal, inspection and installation.

• Cooling and lubrication: Oil and filter replacement, coolant leak testing and refilling, plus closed-loop engine and open-loop exhaust circuit drawings.

• Engine management: Fault-code tables, sensor and injector tests, throttle-body replacement, and closed-throttle and idle-actuator reset procedures.

• Electrical system and DESS: Ignition, charging and starting-circuit diagnosis, starter-motor overhaul, and Digitally Encoded Security System lanyard programming.

• Propulsion: Jet-pump rebuilding, impeller and wear-ring inspection, drive-shaft and carbon-ring service, and reverse-gate and cable replacement.

• Controls and Challenger ICS: Steering alignment, throttle/shifter adjustment, and Challenger 180 Inlet Clearance System motor, module, relay and cable tests.

• Hull and body: Model-specific fittings and cover hardware, ride-plate and pump-support sealing, and gelcoat and fiberglass repair procedures.

The manual was written primarily for sport-boat mechanical technicians already familiar with Sea-Doo service procedures, using the specified hand tools and special service equipment.

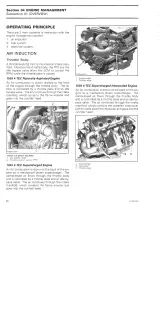

Engine Installation, Cooling and Exhaust

Engine/jet-pump alignment is supported by tool listings and shim guidance. Internal engine overhaul, supercharger disassembly and intercooler servicing are referred to a separate 1503 4-TEC Engine Shop Manual, which is not included.

Cooling drawings distinguish the ride-plate heat exchanger from the jet-pump-fed exhaust and intercooler circuits. The exhaust section warns that flange misalignment strains the flexible joint and can cause bellows failure.

Module Diagnosis, Fuel Tests and Wiring

The diagnostic sections cover VCK kit integration for fault-code work and interaction with the engine management system. The VCK (P/N 529 035 981) and B.U.D.S. software also support engine monitoring and ECM replacement-data transfer; the PDF documents their use and does not supply the diagnostic kit.

The EMS Fault Code Table links faults to beeper patterns and limp-home behavior. The Engine Management System Flow Chart, TOPS Diagnostic Flow Chart and Fuel Delivery Flow Chart connect system operation with component tests, helping trace faults before replacing a module.

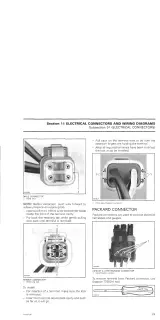

Connector views include ECM terminal identification and Deutsch/Packard connector servicing. The Inlet Clearance System Electrical Diagram shows the Challenger’s motor, control module, neutral switch and relay circuits.

Always exercise proper shop safety protocols and relieve system pressure before disconnecting fuel or coolant lines to prevent injury.

Pump Rebuilding and Drive-System Inspection

Step-by-step procedures cover jet-pump disassembly, bearing and seal replacement, reassembly and pressure testing. Drive-system illustrations distinguish correct PTO-seal and floating-ring installation; incorrect positioning can damage the PTO seal and cause an oil leak.

Steering service covers replacement of the helm as a complete assembly rather than internal helm rebuilding.

Seasonal Service and Hull Repair

Preseason preparation and storage chapters cover fuel stabilization, engine fogging and intercooler freeze protection. Water-flooded engine recovery includes removal of water-contaminated oil, while supercharger recovery work is referred to the separate engine manual.

Hull repair distinguishes gelcoat blemishes from fractures through the fiberglass laminate, with reinforcement and finishing procedures. Body sections also address deck drains and scupper valves.

Fuel-Pressure and Jet-Pump Inspection Preview

The fuel-pump pressure test table lists 290–310 kPa (42–45 PSI) for naturally aspirated and non-intercooled supercharged engines, and 386–414 kPa (56–60 PSI) for supercharged intercooled engines. These are pump-outlet readings during safety-lanyard activation, with the same expected pressure while cranking or running.

Jet-pump inspection specifies a maximum impeller/wear-ring clearance of 0.35 mm (.014 in), checked with the pump mounted to the boat.
