Isuzu Trooper UX 1995 Workshop Manual (P/N UX00-WSM-L0001-00)

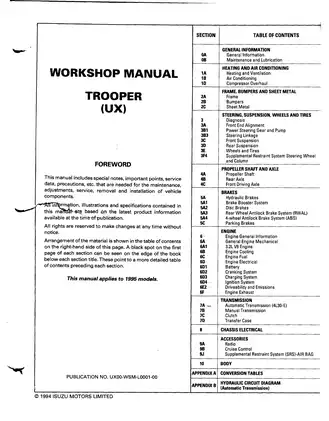

This Isuzu Motors Limited workshop manual, P/N UX00-WSM-L0001-00 (© 1994), covers the 1995 Trooper (UX) in short- and long-wheelbase configurations with 6VD1 SOHC or DOHC engines and manual or automatic transmissions.

PDF Access and Wiring Diagram Detail

Search and navigation: PDF text search and embedded bookmarks are not available. Small pin numbers, connector identifiers, and wire-color codes require zooming in dense wiring diagrams.

One printable 1,928-page PDF in English: four opening pages, 1,900 pages of workshop sections, an eight-page conversion appendix, a 13-page transmission hydraulic-circuit appendix, and three closing pages. Original cover, title, blank, and memo pages are included in these totals.

Engine Overhaul, Drivetrain Service and Circuit Diagnosis

The following selected coverage outlines the main workshop areas. Other included topics range from cruise-control troubleshooting to door-glass and window-regulator service.

• Engine repair: Step-by-step timing-belt replacement, DOHC timing-chain service, cylinder-head work, and internal crankshaft, piston, and bearing inspection.

• Transmissions and clutch: MUA5C and 4L30-E diagnosis and overhaul, clutch inspection, hydraulic control service, and shifter adjustment.

• Four-wheel-drive components: Transfer-case teardown, propeller-shaft alignment and universal-joint service, front drive-shaft repair, freewheel-hub service, and front/rear differential setup.

• Brakes and chassis: Hydraulic brake bleeding, caliper rebuilding, RWAL and four-wheel ABS troubleshooting, steering-gear/pump repair, and suspension/alignment procedures.

• Engine management: Fuel-injection tests, driveability symptom charts, ECM troubleshooting, emissions-control checks, and starter, charging, and ignition-system diagnosis.

• Heating and A/C: Heater and blower diagnosis, refrigerant recovery and charging, compressor oil checks, and DKV-14D magnetic-clutch repair.

• Electrical and SRS: System wiring diagrams, harness routing and connector views, plus airbag diagnostic charts, sensor testing, and steering-column service.

Suited to experienced technicians comfortable reading wiring diagrams and using a digital volt-ohm meter; advanced electronic tests use a TECH 1 scan tool and system-specific test equipment.

Engine Mechanical Work and Maintenance

Normal- and severe-duty schedules cover fluid changes and cooling, brake, and steering inspections. Lubricant viscosity charts, component-specific torque diagrams, and standard-bolt tables accompany the service procedures.

Prior to beginning any undercarriage work, ensure the vehicle is securely supported with properly rated jack stands at the factory-designated frame lift points to prevent severe structural damage or personal injury.

Valve train and lubrication: Hydraulic lash-adjuster troubleshooting distinguishes air entry and oil-supply problems, with different repair paths for SOHC rocker-arm assemblies and DOHC adjusters. The timing-belt section warns that twisting or prying the belt can damage its core.

Transmission and Differential Repair

Automatic transmission: The 4L30-E section combines DELCO ELECTRONICS TCM fault charts with stall and line-pressure tests, valve-body service, and internal clutch repair. Its fluid-level precautions explain how overfilling can cause foaming, abnormal shifts, and transmission damage.

The Hydraulic Circuit Diagram appendix shows oil flow by operating range and gear, including converter-clutch applied and released conditions. Differential chapters provide gear-contact patterns, shim-selection information, and bearing-preload checks, with separate treatment of the rear limited-slip differential.

Electrical Fault Tracing, ABS and Airbags

System-specific wiring, expected terminal voltages, and diagnostic charts support tracing electrical faults to a circuit or component. The Engine Control Module (ECM) Connector Identification chart links pin assignments to voltage checks; the Vacuum Hose Routing Diagram distinguishes SOHC and DOHC layouts.

RWAL flash-code charts are separate from the four-wheel ABS Basic Diagnostic Flow Chart and TECH 1 test routines. SRS coverage includes the Component and Wiring Location View, diagnostic energy reserve module checks, airbag fault charts, and disabling precautions.

Heater, A/C and Body Service

The Blower Motor Does Not Run chart and compressor-clutch diagnostic trees address relay, switch, and wiring faults. Compressor bench repair covers the magnetic clutch, pulley, field coil, and shim adjustment; diagnosed internal rotor, shaft, or seal faults call for compressor replacement.

Frame and body-dimension drawings distinguish short- and long-wheelbase layouts. Panel removal, body mounting, stationary glass, and sunroof service are also covered.

Oil-Pressure and Compressor-Clutch Specification Preview

For 6VD1 engine diagnosis, the oil-pressure check specifies 392–550 kPa at 3,000 rpm with the engine at normal operating temperature, approximately 80°C.

For the DKV-14D compressor, the magnetic-clutch installation section specifies an assembled clutch clearance of 0.3–0.6 mm and provides adjustment-shim thicknesses.
