2000–2005 Yamaha Kodiak 400 YFM400FW ATV Service & Repair Manual Set with Supplement (P/N LIT-11616-08-73)

417 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(2)
$18.79 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models: Kodiak 400 (YFM400FW)

Sub-models / Variants: YFM400FWE (4GB1, USA); YFM400FW (4GB2, Canada and Europe); YFM400FWH supplement (4SH1, USA; 4SH2, Canada; 4SH3, Europe; 4SH4, Oceania)

Model Years: 2000–2005 (2000, 2001, 2002, 2003, 2004, 2005)

Serial Numbers (engine, starting numbers): YFM400FWE: 4GB-000101 (USA), 4GB-016101 (Except USA); YFM400FWH: 4SH-000101 (USA), 4SH-028101 (Canada), 4SH-033101 (Europe), 4SH-035101 (Oceania)

Serial Numbers (frame, starting numbers): Base manual: 4GB-016101 (except USA and Canada); YFM400FWH: 4SH-033101 (Europe)

VIN Starting Numbers (the first eight characters distinguish the listed variants and markets): Base manual: JY44GBA0PA000101 (USA), JY44GBN0PA016101 (Canada); YFM400FWH: JY44SHA0TA000101 (USA), JY44SHN0TA028101 (Canada), JY44SHT0*TA035101 (Oceania)


  • Engine type: Air-cooled, 4-stroke, SOHC single cylinder (YFM400FWE)

  • Displacement: 386 cm³ (YFM400FWE)

  • Transmission: Constant mesh 5-speed with reverse, wet centrifugal automatic clutch (YFM400FWE)

  • Compression ratio: 8.6:1 (YFM400FWE)

  • Compression pressure (standard): 920 kPa (131 psi) at 350 r/min (YFM400FWE)

  • Fuel tank capacity: 10 L (2.64 US gal) for YFM400FWE; 13.5 L (3.6 US gal) for YFM400FWH

  • Engine oil capacity (periodic change): 2.4 L (2.5 US qt) (YFM400FWE)

  • Drive system: Shaft drive (YFM400FWE)

Yamaha Manual Features & Selected Content Preview

Publication Pages

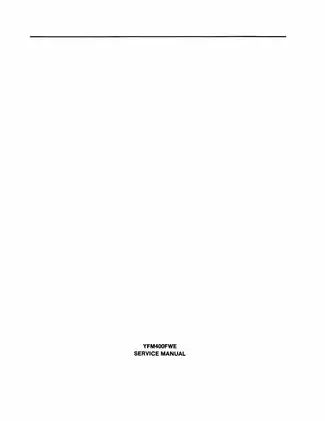

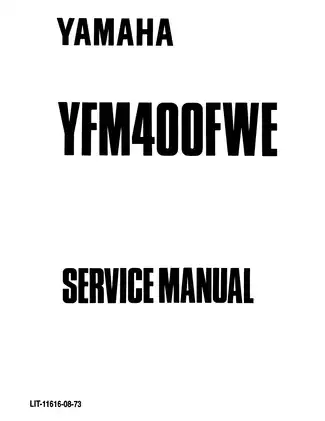

Yamaha Kodiak 400 YFM400FWE Service Manual (P/N LIT-11616-08-73) 381
Yamaha Kodiak 400 YFM400FWH Supplementary Service Manual, 1996 (P/N LIT-11616-10-01) 35

The base manual provides the overhaul and troubleshooting procedures. The supplement adds revised clutch, carburetor, and electrical specifications, along with regional battery service procedures and cable-routing diagrams.

For complete 1996 service procedures, Yamaha’s supplement refers readers to the 1993 European service manual (4GB-ME1) and the 1993 supplementary service manual (4GB-AE1). Only the base manual’s full wiring diagram is included in this PDF.

PDF Bookmarks and Wiring Detail

Navigation and legibility: Embedded bookmarks link to chapters in the base manual and sections of the supplement. PDF text search is unavailable. Small labels on the full wiring diagram are readable when zoomed in, but gray shading makes some connector markings and wire color codes difficult to read on the ignition and charging diagrams.

The download is one printable, 417-page PDF in English. The total includes both publications and one additional Yamaha outer cover marked LIT-11616-KD-40.


Engine Overhaul, Shaft-Drive Service, and Electrical Tests

This selection of workshop procedures covers the major repair areas. Other topics include speed limiter adjustment and select-lever cable adjustment.

  • Engine repair: Step-by-step instructions cover engine removal, valve-seat refacing, piston and crankshaft inspection, cam timing, and reassembly of the air-cooled SOHC engine.
  • Clutch and transmission: Inspect the primary and secondary clutches, check shift forks and gears, and service the middle drive axle during transmission and transfer gear work.
  • Carburetor service: Remove and disassemble the Mikuni BTM32SH, inspect the jets and coasting enricher, and check float height and fuel level.
  • Shaft-drive repairs: Service the differential and constant velocity joints, overhaul the transfer gear, and inspect the rear drive shaft and final drive.
  • Brakes and chassis: Service and bleed the hydraulic front drum brakes, inspect the rear brakes, replace wheel bearings, and check steering and suspension.
  • Electrical diagnosis: Trace ignition, starting, charging, lighting, indicator, and cooling-fan faults with circuit diagrams and component test charts.

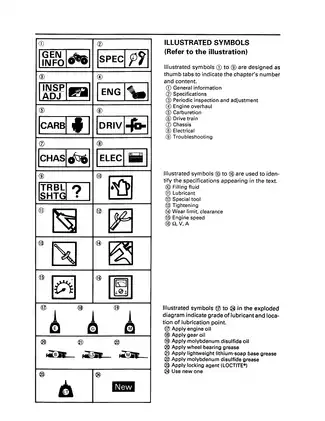

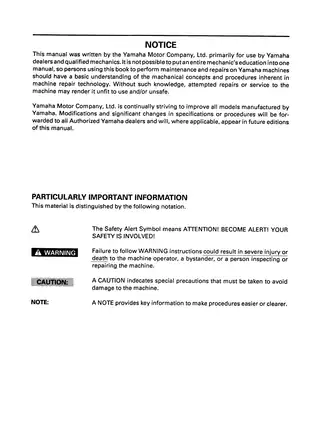

Yamaha wrote these manuals for its dealers and qualified mechanics familiar with mechanical repair procedures.

Engine, Carburetor, and Clutch Work

The maintenance schedule covers valve clearance, throttle cable free play, fluid changes, and chassis-pivot lubrication. The overhaul chapter adds cylinder-head, piston, crankshaft, and crankcase inspection, with torque tables and wear limits.

Exploded engine drawings identify the balancer drive gear, oil pump, CDI rotor, and recoil starter. Lubrication diagrams trace the engine oil circuit, and clutch illustrations show plate types and assembly alignment marks.

The carburetor inspection covers piston-valve movement, the starter plunger, and replacement criteria for the needle valve and seat.

Differential, Transfer Gear, and Rear Final Drive

Gear backlash drawings and shim calculations support bearing, seal, and gear replacement. The final-drive section identifies the YM-04050 / 90890-04050 wrench for the left-hand-thread bearing retainer.

The shaft-drive troubleshooting chart helps narrow noise and vibration to bearing damage, incorrect gear mesh, or shaft damage before teardown.

Yamaha treats the factory-assembled internal differential as a replacement unit. The repair procedures cover the surrounding parts and warn that excessive tightening during front pinion setup can damage the collapsible collar.

Drum Brakes, Steering, and Suspension

The front brake procedures cover the master cylinder and wheel cylinders. Rear brake service covers the shoes, camshaft, and linkage. Yamaha warns that cleaning solvents can swell and distort the hydraulic brake seals.

Steering procedures cover the knuckles and tie-rod ends, with chassis geometry and toe-in specifications. Suspension work covers the front arms, front and rear shock absorbers, and Monocross swingarm, including swingarm bearing replacement and spring preload adjustment. Damaged shock absorbers are replaced as assemblies.

For brake work and servicing a raised ATV, follow the complete factory procedures and their safety precautions.

Ignition, Starting Interlocks, and Fan Diagnosis

Ignition and starting circuit diagrams show test connections for coils, relays, and interlock switches. Charging tests cover the stator and rectifier/regulator. Starter motor service includes brush, commutator, and armature inspection.

The fan diagnosis separates faults in the motor, relay, control unit, and thermo unit. The electrical section gives the main fuse and fan circuit breaker ratings and covers the neutral, reverse, and oil-temperature indicator circuits.

Regional Battery Service in the Supplement

The supplement separates sealed maintenance-free battery procedures from those for the conventional battery used in Oceania. It gives different condition checks and charging charts for the two battery types.

Selected Differential Fill and Ignition Test Values

For the YFM400FWE differential, the oil capacity table specifies 0.47 L for a periodic oil change and 0.5 L for a total fill.

For ignition diagnosis, pickup-coil resistance across the red and white leads at 20°C (68°F) is 171–209 Ω for the YFM400FWE and 459–561 Ω in the YFM400FWH supplement.
