Canon imageRUNNER 2530/2525/2520 Series Factory Service Manual (P/N FM3-9276)

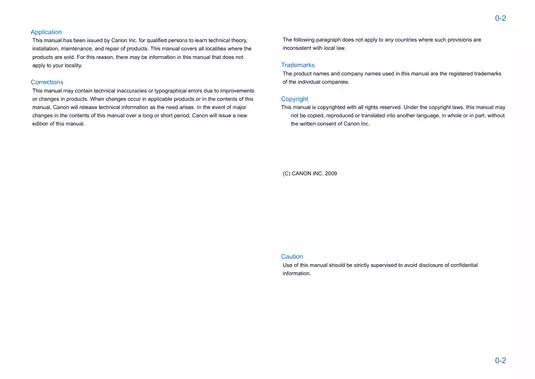

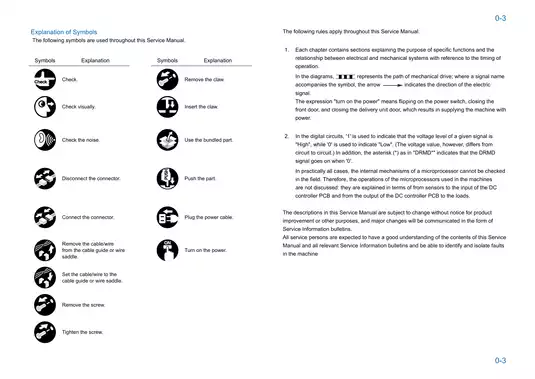

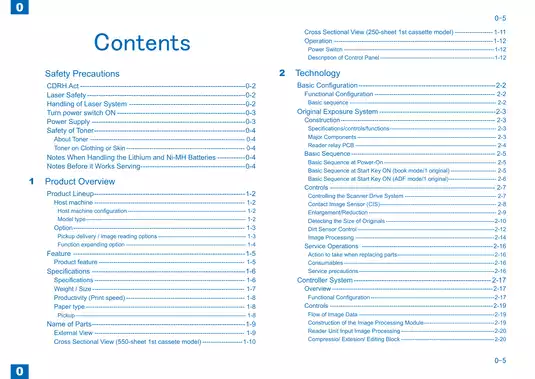

This 336-page PDF is the Canon-issued 2009 service manual for the imageRUNNER 2530, 2525, and 2520 Series. Coverage tables also identify the 2530i/2530, 2525i/2525, and 2520i/2520 variants and distinguish 550-sheet and 250-sheet first-cassette configurations in pickup hardware, controller software, parts, and circuitry. Canon identifies qualified service personnel as its audience for technical theory, installation, maintenance, and repair, so this is technician-level documentation, not a basic owner guide.

• Explains the CIS original-exposure system, reader relay PCB connector functions, scanner drive, original-size detection, dirt-sensor control, shading correction, and book/DADF reading sequences.
• Traces the laser exposure, image-formation, on-demand fixing, and pickup/feed systems, including drum charging and cleaning, developing and toner supply, transfer, duplex/delivery, registration, jam detection, and the two first-cassette designs.
• Provides illustrated removal and replacement coverage for the CIS and scan glass, laser scanner, toner-supply and developing assemblies, drum, fixing unit, pickup units and rollers, plus the DC controller, main controller, and RAM PCBs, with the required post-replacement adjustments.
• Covers service-mode image-position and white-level adjustments, laser write-position and magnification setup, D-RAM and print-pattern tests, sensor and ADF checks, service-data backup and RAM clearing, firmware upgrades, and E-RDS log troubleshooting.
• Organizes fault isolation through host-machine error codes, FAX service codes, main-unit jam codes, DADF-AB1 and Inner Finisher-B1 jam tables, alarm-code cause/remedy charts, and configuration-specific general circuit diagrams.
• Documents base-machine setup, print and network checks, relocation, and installation of Document Tray-J1, Card Reader-E1, Serial Interface Kit-J2, Control Interface Cable-A1, System Upgrade RAM-C1/SD Card-A1, and reader/cassette/drum heaters.
• Lists factory service tools such as Digital Multimeter FY9-2002, tester extension pins FY9-3038/FY9-3039, and NA-3 Test Chart FY9-9196, plus periodic-replacement parts and cleaning points.

Machine Variants and System Logic

Canon's model table rates the 2530, 2525, and 2520 at 30, 25, and 20 ppm, respectively. Configuration charts identify supported DADF, delivery, cassette, envelope, heater, fax, card-reader, printer, and send options, with required companion hardware noted where applicable.

The technical chapters follow operation from sensors and switches through the reader relay PCB, main controller, and DC controller to the machine loads. Separate image-data flow diagrams cover copy processing, SEND, fax transmission and reception, and PDL printing. Fixing-system coverage documents standby, flying-start, print, sheet-to-sheet, and down-sequence control; media-dependent control tables; paper-loop regulation; thermistor monitoring; and protection logic. Pickup coverage separates cassette lifting, size and level detection, manual feed, registration, duplex transport, delivery, and the differing 550-sheet and 250-sheet mechanisms.

Replacement, Adjustment, and Diagnostics

The replacement chapter pairs parts-location drawings with removal procedures and follow-up service-mode work. CIS or glass replacement leads into white-plate and DADF white-level adjustment; laser-scanner replacement requires transfer of the unit-specific write-position and magnification data. DC-controller work calls for a current Service Data List before RAM clearing, while main-controller replacement is followed by firmware loading and restoration of machine-specific values.

The right-cover repair procedure warns that its upper connector harness can break if it is pulled before being released from the clamp. The laser-scanner section warns that contact with its PCB can shift the laser-intensity adjustment. Canon also directs technicians to switch off and unplug the machine before service, with the main power off for work around the laser assembly.

Service Mode supplies scanner and print parameters, counters, reports, ROM-version display, download functions, D-RAM checks, nine image test patterns, sensor-state checks, ADF tests, card-reader checks, and modem/line tests. Periodic-service tables link replacement and cleaning items to their part numbers, counters, service references, and related repair procedures.

Circuit Diagrams and Accessory Scope

Named visual references include the Cross Sectional View (550-sheet 1st cassette model), Cross Sectional View (250-sheet 1st cassette model), Diagram of Paper Paths (with 2 Way Unit/Inner 2Way Tray), Flow of Image Data for the SEND Function, and separate seven-sheet General Circuit Diagram sets for the 550-sheet and 250-sheet configurations. These sheets map the power supply, controllers, reader, and laser scanner. They also identify sensor, motor, clutch, solenoid, cassette-option, finisher-interface, and control-panel connections.

Accessory coverage is selective. DADF-AB1 and Inner Finisher-B1 receive configuration, interface, and jam-code coverage, while the 2-way delivery hardware appears in the paper-path and circuit material. This PDF does not contain full internal teardown chapters for those accessories; the firmware section directs the detailed Inner Finisher-B1 upgrade procedure to the separate finisher service manual. Cassette Module-W1 and CST. Feeding Unit-AE1 are identified in the option material, but their own installation procedures are not part of this publication.
