Volvo Penta 3.0, 4.3, 5.0, 5.7, 7.4, 8.2 Gasoline Engines Service Manual (P/N 7797353)

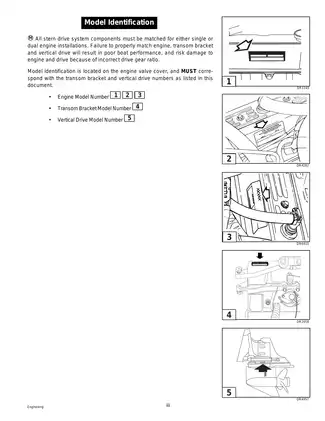

This Volvo Penta Engine Components workshop manual, P/N 7797353, covers the listed 3.0–8.2L gasoline engine variants, including the DPX385XEFS and DPX415XEFS engine applications. DPX coverage here concerns engine components; internal vertical-drive service is referred to a separate manual.

PDF Text Search, Drawings and Page Count

Search and illustration detail: Text search is available throughout the service chapters, although lettering within some illustrations is not searchable. There are no embedded PDF bookmarks. Small labels in the sampled steering-circuit and cooling-flow drawings are legible with magnification.

One printable English PDF contains 384 pages: 362 pages across service sections 1–11, including three blank pages; 14 safety pages; six opening pages; and two closing pages. Original covers, front matter and blank pages are included in that total.

Engine Overhaul, Cooling and Steering Coverage

The following selected service topics outline the manual’s coverage. Other included subjects range from off-season storage preparation to submerged-engine service.

• Engine mechanical: Step-by-step cylinder-head, crankshaft, piston and connecting-rod repair procedures, with cylinder-bore inspection, honing and reconditioning.

• Valve train and timing: Hydraulic-lifter service, valve adjustment, timing-gear or timing-chain work, and the 4.3L balance-shaft procedures.

• Engine troubleshooting: Compression and intake-manifold vacuum tests, plus symptom guides for hard starting, rough running, overheating and failure to reach operating RPM.

• Cooling and exhaust: Thermostat testing, supply-pump impeller service, circulating-pump replacement, and exhaust manifold, high-rise elbow and hose replacement.

• Steering systems: Mechanical cable service, power-steering pump and cylinder removal and installation, hydraulic diagnosis, pressure testing and air purging.

• Engine installation: Engine removal and reinstallation, coupler replacement, engine-mount checks, minimum engine-height assessment and drive-coupler alignment.

• Throttle and shift controls: SAE cable installation, shift-stroke checks and attachment adjustments, plus neutral-start switch continuity and operating tests.

Suited to mechanics experienced with marine gasoline engines and equipped for precision measurement, engine handling and hydraulic diagnosis.

Mechanical Inspection and Model-Specific Repair

Separate chapters address the inline-four, V6 and V8 engines. The mechanical sections explain cleaning, inspecting and measuring machined surfaces and bearing bores, with engine-specific specifications for evaluating components before reassembly.

Tool references identify equipment such as the J 8087 cylinder bore gauge and J 33049 camshaft bearing removal and installation set. These references help plan a rebuild around the measurement and fitting equipment required for the work.

Illustrated references include the Piston Selection Chart, intake-manifold bolt tightening sequences, cylinder-head torque sequences and oil-pan alignment views. The 5.0L and 5.7L procedures also specify replacement of the composite engine front cover and gasket after removal.

The 4.3L crankshaft-balancer procedure identifies the J 39046 tool and warns that shifting the rubber-mounted inertial weight can destroy balancer tuning and the engine timing reference.

Steering Diagnosis and Control Connections

The steering chapter distinguishes mechanical steering from hydraulic power assist. It also covers tie-bar adjustment for twin-engine installations and feedback to the helm, with diagrams showing hydraulic flow during steering and operation without power assist.

Throttle-cable coverage distinguishes push-to-close and pull-to-close attachments. The neutral-start switch section provides both electrical continuity checks and operational tests, rather than a complete engine wiring-diagram package.

Cooling Flow and Exhaust Components

Model-specific cooling-flow diagrams work with the Water Flow Problem Checkpoints to trace overheating, restricted water supply and air or exhaust entering the cooling water.

Supply-pump coverage includes impeller removal, inspection and installation. The circulating pump is inspected and replaced rather than internally rebuilt; the manual distinguishes its stainless-steel components and marine shaft seal from automotive water pumps.

Exhaust-hose clamp placement is another documented repair trap: clamping the expanded hose areas can restrict cooling and cause engine damage.

Diagnostic Limits and Installation Checks

General troubleshooting supports mechanical and engine-performance diagnosis. EFI-specific diagnosis and detailed ignition/fuel-system service are referred to separate EFI Diagnostic and Electrical/Ignition/Fuel manuals, which are not included in this PDF.

Engine-mount height and alignment illustrations support installation checks after mount or coupler work. Working on marine propulsion systems involves heavy components and pressurized fluids; technicians must follow the factory precautions in the manual’s Safety section before starting teardown.

A Preview of Bearing and Surface-Inspection Specifications

For the 3.0 GS, the specifications list main-bearing clearance of 0.0003–0.0029 in. The torque table gives 55–70 ft-lb for non-rear main-bearing cap bolts with clean threads; the rear cap has a separate staged procedure.

For the 4.3 GL/Gi, the inspection tables specify maximum surface-flatness deviations of 0.004 in. for the cylinder head and 0.010 in. for the intake manifold. These limits accompany the component inspection and repair information.
