Nissan D21 Truck Service Manual, 1986–1997
1,236 Pages • 1 Printable PDF (English) • Download
Nissan Models Covered & Key Technical Specifications
Models: D21 Truck
Sub-models / Variants: 2WD, 4WD, King Cab, Regular Cab
Models & Model Codes:
D21 Truck — Codes in each group are listed in this order: non-California U.S.A., California U.S.A., Canada.
2WD Regular Cab STD, manual: ABFALCFD21EUN, ABFALCFD21EVN, ABFALCFD21ENN
2WD Regular Cab XE, manual: ABFALEFD21EUN, ABFALEFD21EVN, ABFALEFD21ENN
2WD Regular Cab XE, automatic: ABFALEAD21EUN, ABFALEAD21EVN, ABFALEAD21ENN
2WD King Cab XE, manual: BBFGLEFD21EUN, BBFGLEFD21EVN, BBFGLEFD21ENN
2WD King Cab XE, automatic: BBFGLEAD21EUN, BBFGLEAD21EVN, BBFGLEAD21ENN
2WD King Cab SE, manual: BBFGLFFD21EUN, BBFGLFFD21EVN, BBFGLFFD21ENN
2WD King Cab SE, automatic: BBFGLFAD21EUN, BBFGLFAD21EVN, BBFGLFAD21ENN
4WD Regular Cab XE, manual: ABFNLEFD21EUN, ABFNLEFD21EVN, ABFNLEFD21ENN
4WD King Cab XE, manual: BBFULEFD21EUN, BBFULEFD21EVN, BBFULEFD21ENN
4WD King Cab SE, manual: BBFULFFD21EUN, BBFULFFD21EVN, BBFULFFD21ENN
Model Years: 1986–1997 (1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997)
VIN variant identifiers: Position 4: S = KA24E engine; position 7: 1 = Standard body, 6 = King Cab; position 8: S = Standard 2WD, Y = Standard 4WD.
-
Engine model: KA24E
-
Engine type: 4-cylinder, in-line, OHC
-
Engine displacement: 2,389 cc (145.78 cu in)
-
Compression ratio: 8.6
-
Compression pressure (Standard): 1,324 kPa (13.5 kg/cm², 192 psi) at 300 rpm
-
Firing order: 1-3-4-2
-
Spark plug (Standard): NGK ZFR5E-11
-
Transmission types: 5-speed manual FS5W71C (2WD, 4WD); 4-speed automatic RL4R01A (2WD)
-
Transfer case: TX10 (4WD)
-
Drive system: Rear-wheel drive (2WD), 4-wheel drive (4WD)
Nissan Manual Features & Selected Content Preview

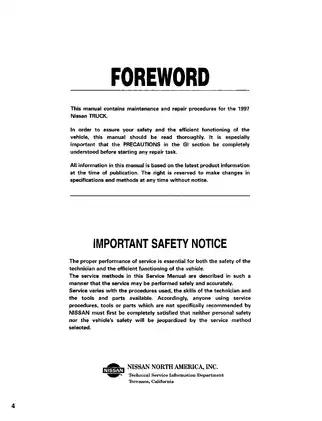

Nissan’s factory service manual covers the 1997 D21 Truck with the KA24E engine in North American Regular Cab and King Cab configurations, with 2WD or 4WD. The publication carries a 1996 copyright and covers scheduled maintenance, fault diagnosis, and workshop repair.
PDF Search, Bookmarks, and Diagram Detail

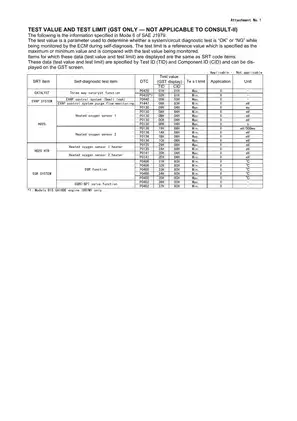

Search and navigation. Text search works on the GST Mode 6 attachment. Use the chapter and topic bookmarks to navigate the main manual. Some quick-reference bookmarks point to separate chapter files. Zoom in to read small pin numbers and wire codes in dense diagrams.

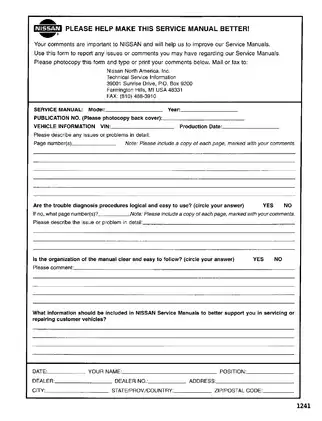

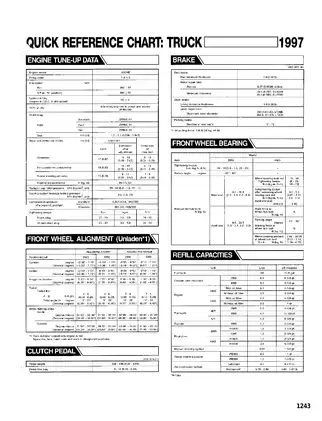

The download is one printable English PDF with 1,236 pages. That total includes the one-page feedback form, one-page quick-reference chart, one-page GST Mode 6 attachment, and five electrical foldout and reference pages.
KA24E Engine Repair, Driveline Overhaul, and Circuit Diagnosis
These selected workshop topics show the scope of the manual. Other covered jobs include windshield water-leak repair and cruise control diagnosis.
- Engine repair: Timing-chain replacement, cylinder-head overhaul, engine removal, and cylinder-block disassembly, with inspection limits and assembly specifications.
- Lubrication and cooling: Oil-pressure checks, oil-pump inspection, water-pump service, thermostat testing, radiator work, and overheating diagnosis.
- Engine control and fuel: Diagnostic trouble code (DTC) confirmation, EVAP leak diagnosis, injector service, fuel-pressure checks, and fuel-tank service.
- Transmission and clutch: Manual and automatic transmission overhaul, hydraulic clutch service, shift-lock diagnosis, and automatic transmission stall and line-pressure tests.
- Transfer and final drive: Transfer-case overhaul, propeller-shaft inspection, differential adjustment, bearing-preload checks, and limited-slip differential service.
- Brakes, steering, and suspension: Brake bleeding, rear-wheel ABS diagnosis, steering gear repair, wheel-bearing adjustment, and front and rear suspension service.
- Electrical and climate control: Starting and charging system checks, supplemental restraint system (SRS) diagnosis, and heater and air-conditioning troubleshooting.
The manual suits technicians familiar with mechanical measurements and electrical diagnosis. Nissan specifies that an authorized Nissan dealer perform SRS maintenance.
Maintenance and Engine Inspection
The maintenance chapter provides two schedules based on driving conditions, along with fluid capacities and lubricant specifications. The engine chapter covers valve seats and guides, camshaft inspection, piston and cylinder measurements, crankshaft inspection, and oil-seal replacement. Exploded views show lubrication points and tightening specifications alongside the inspection and assembly procedures.
The timing-chain section flags the risk of valve-to-piston contact if the crankshaft and camshaft turn independently after chain removal. The cylinder-head section explains how air can enter hydraulic lifters when rocker assemblies are laid on their sides and includes checks for noisy lifters.
Engine Control and Fuel-System Diagnosis
Diagnostic worksheets help relate the reported symptoms and freeze-frame data to the relevant circuit or component tests. The engine control section pairs DTC confirmation criteria with ECM terminal reference values and wiring diagrams. EVAP coverage distinguishes small leaks from purge-flow, vent-valve, and pressure-sensor faults. Fuel-system procedures include pump and gauge-unit service and precautions for releasing fuel pressure.
Transmission, Final Drive, and Chassis
The FS5W71C chapter distinguishes 2WD and 4WD gear components. The RL4R01A chapter uses a cross-sectional view and hydraulic diagrams to support oil pump, valve body, clutch, and governor service. Final-drive procedures distinguish the R180A front unit from the H190A, C200, and H233B rear units and cover pinion height, gear tooth contact, and shim or washer selection.
Front axle procedures distinguish manual-lock and auto-lock hubs. The chassis sections also cover torsion-bar front suspension, rear leaf springs, front disc and rear drum brakes, the 2WD load-sensing valve, and the 4WD proportioning valve. Steering coverage includes VB66K manual steering and PB59K and PB48S power steering. Follow the manual’s lifting and vehicle-support precautions when working on drivetrain and suspension components.
Wiring, Body, and Air Conditioning
POWER, START, CHARGE, ABS, and SRS diagrams provide circuit-level references. Harness layouts, switch diagrams, connector views, and Super Multiple Junction terminal layouts help trace connections across the vehicle. The body chapter covers instrument-panel removal, cab and rear-body work, and body-alignment measurements. Air-conditioning coverage includes refrigerant leak testing, abnormal-pressure diagnosis, control-linkage adjustment, and compressor-clutch service.
Examples of KA24E Bearing and Valve-Guide Clearances
Standard main bearing clearance is 0.020–0.047 mm. The cylinder-block section relates bearing selection to the cylinder-block and crankshaft journal grades.
Standard intake valve stem-to-guide clearance is 0.020–0.053 mm. The cylinder-head section lists intake and exhaust clearances separately and provides a wear limit and guide replacement procedures.
