John Deere LTR155, LTR166, LTR180 Lawn Tractor Technical Manual — 2002 (P/N TM1768)
436 Pages • Printable PDF • 45.11 MB • Download
John Deere Models Covered & Key Technical Specifications
Models: LTR155, LTR166, LTR180
Sub-models / Variants: LTR155 (Kohler Command 15 QT, CV15S-41562); LTR166 (Briggs & Stratton Vanguard V-Twin, model 303777, type 916928); LTR180 (Kawasaki FH500V-AS32 V-Twin)
Model Year: 2002
Serial Numbers: LTR155 charging system: S/N –020000 (3 amp), S/N 020001– (15 amp); mower deck: S/N –020000, S/N 020001–; grass collector: S/N -020000, S/N 020001-
-
Kohler engine displacement: 426 cm3
-
Briggs & Stratton engine displacement: 480 cm3
-
Kawasaki engine displacement: 494 cm3
-
Fast idle speed: 3350 ± 50 rpm
-
Maximum fuel tank capacity: 6.0 L
-
Hydrostatic transaxle model: Tuff Torq K46
-
Brake system: Single, internal wet disc brake
-
Steering type: Sector and pinion
-
Principal turning radius: 38.1 cm
John Deere Manual Features & Selected Content Preview
John Deere's February 2002 technical manual, P/N TM1768, covers service, diagnosis and repair of the LTR155, LTR166 and LTR180 lawn tractors, with separate chapters for their Kohler, Briggs & Stratton Vanguard V-Twin and Kawasaki engines.
Searchable PDF, System Bookmarks and Wiring Detail
Text access and diagram detail: Searchable PDF text and embedded bookmarks support navigation through the major systems and individual procedures. The Kohler chapter bookmark opens on its second contents page. Small wire codes and terminal labels in the sampled electrical schematics are readable when enlarged.

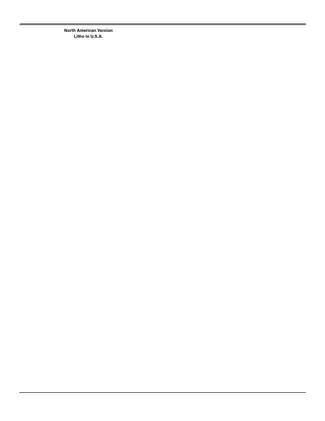

One printable English PDF contains 436 pages, including two unnumbered front-matter pages and 10 notes or otherwise blank pages within the numbered sections.
Engine Overhaul, Electrical Fault Tracing and Timed Mower Decks
These selected content highlights are a preview, not the complete contents list. Additional topics include fuel-tank removal and seat-support service.
-
Engine repair: Engine removal, cylinder-head and valve work, piston and ring inspection, cylinder-bore reconditioning, crankshaft service and camshaft installation.
-
Fuel and lubrication: Carburetor service, fuel-pump checks, governor adjustment, crankcase-vacuum testing and engine oil-pressure diagnosis.
-
Electrical troubleshooting: Wiring diagrams, starter and charging tests, ignition-shutoff diagnosis, Grass Collection System (GCS) circuits and Reverse Implement Option (RIO) interlocks.
-
Hydrostatic drive and brakes: Traction-drive testing, neutral-creep adjustment, drive-belt replacement, brake-linkage adjustment and transaxle removal and installation.
-
Steering and running gear: Steering-gear service, front-axle removal and installation, wheel removal and front-wheel bearing repair.
-
Mower deck and collection: Timing-belt replacement, spindle service, deck leveling, blade-brake adjustment, mechanical PTO linkage and grass-collector fill-sensor and latch adjustments.

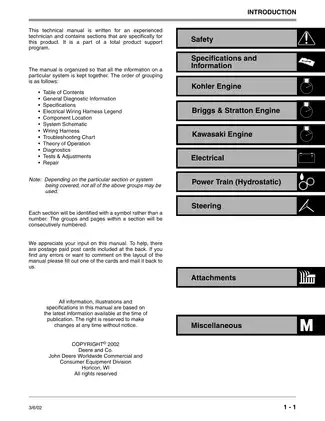

This manual is written for experienced technicians, as stated in its introduction.
Engine Inspection and Variant-Specific Tests
Factory test specifications and inspection limits let a technician compare measured condition with repair or replacement criteria. Kohler cylinder-leak testing, Briggs & Stratton cylinder-balance testing and Kawasaki compression checks provide different ways to investigate poor engine performance.
Valve-train differences: The Kohler engine uses hydraulic lifters and requires no routine valve-clearance adjustment. The Briggs & Stratton and Kawasaki chapters contain valve-clearance adjustment procedures, alongside valve-guide inspection and valve-seat reconditioning.
Carburetor teardown illustrations and the Kawasaki Engine Oil Flow Chart support fuel-system and lubrication work. Blower-housing and air-guide procedures address the air-cooled engines' cooling components.
Tool references identify equipment such as the JT03503 crankcase-vacuum test kit and JDG705 valve-guide reaming tool. General metric and inch fastener tables complement component-specific torque specifications.
Electrical Diagrams Matched to the Tractor
Separate electrical layouts distinguish the LTR155 charging-system versions and the applicable three- and four-position key switches. W1 Main Wiring Harness tables identify circuit numbers, wire colors and connection points.
Cranking Circuit, PTO with RIO Circuit and GCS Circuit schematics accompany diagnostic tables with test locations, normal readings and follow-up checks. The ignition-shutoff explanations show how seat, reverse-interlock and collector conditions create ground paths, helping a technician trace an unexpected shutdown before replacing a seat relay.
K46 Service Scope and Drive Controls
The K46 material covers diagnosis, external adjustments and transaxle removal/reinstallation; internal hydrostatic pump and motor overhaul is outside this manual's repair coverage. Drive Components views and brake-linkage illustrations support work on the pedal controls, cross shaft and belt tensioner.
Step-by-step neutral-creep adjustment is accompanied by operational checks for neutral return, braking and freewheeling. The manual warns that operating the freewheel valve with the engine running can damage the hydrostatic transmission.
Mower Timing, Lift Linkage and Collector Service
Deck procedures distinguish the LTR155/LTR166 lift linkage from the LTR180 arrangement, with serial-specific differences in belt covers and PTO tension components. Step-by-step timing-belt replacement includes spindle assembly illustrations and related blade-brake checks.
Incorrect drive-sheave alignment at the blade spindle can damage the belt and blades. Collector coverage extends to hopper and back-plate removal, bag-full switch and alarm testing, and mechanical latching adjustment.

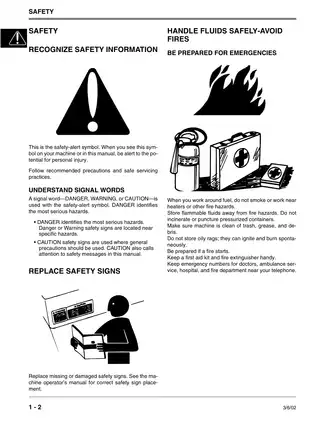

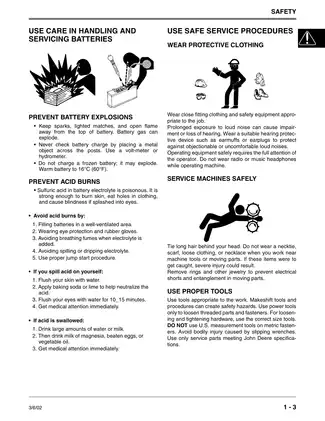

Review the opening safety precautions before working around rotating blades, tensioned springs or a raised tractor.
Selected Valve-Train and Brake-Linkage Specifications
For the LTR155's Kohler engine, cylinder-head inspection specifies a maximum warpage of 0.076 mm (0.003 in.). The LTR180's Kawasaki engine has a cold intake/exhaust valve-clearance specification of 0.05–0.10 mm (0.002–0.004 in.).
The brake-linkage adjustment specifies a 6–7 mm (0.24–0.28 in.) gap between the compression-spring bracket and the brake-rod tabs with the parking brake engaged.
